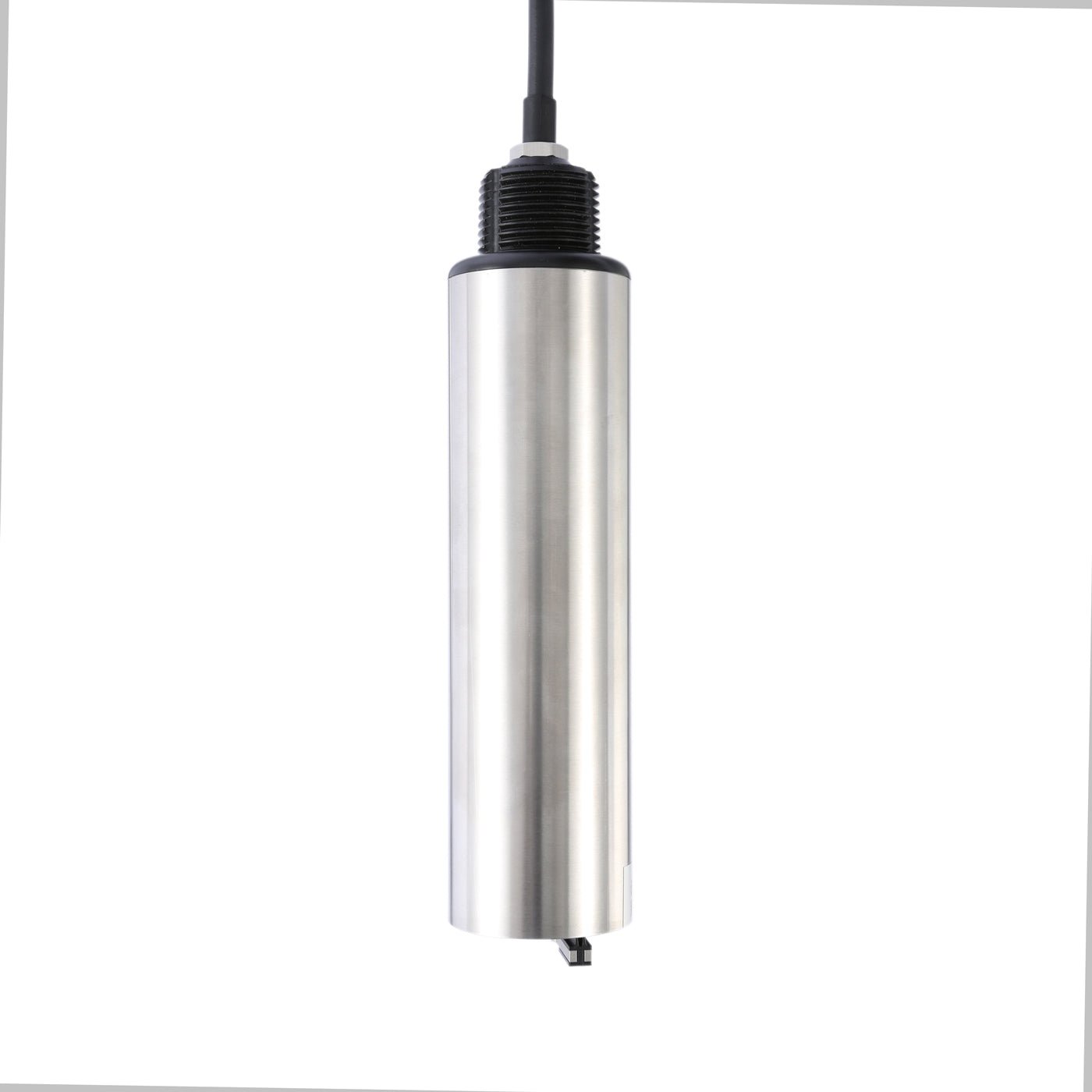

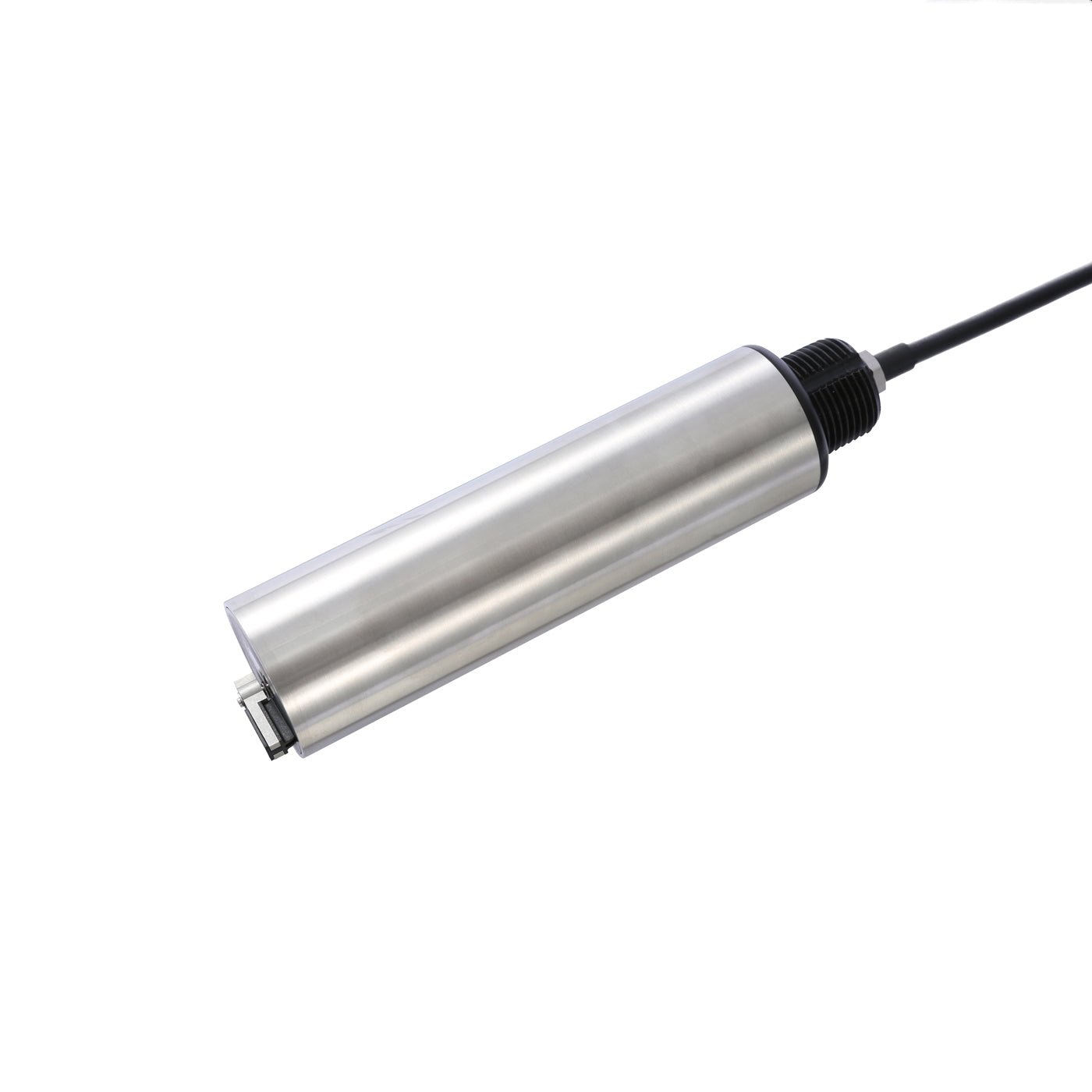

The Inline Digital Suspended Solid Sensor utilizes advanced infrared absorption and scattering light technology, in line with the ISO7027 standard, for highly accurate and continuous monitoring of suspended solids and sludge concentration.
Based on ISO7027, infrared double scattering light technology will not be affected by chroma for the measurement of suspended solids and sludge concentration value. According to the usage environment, self-cleaning function can be equipped with. It assures the stability of data and reliability of performance; with the built-in self-diagnosis function, it can make sure the accurate data be delivered; besides, the installation and calibration is quite simple. The product is widely used in sewage plant, water plant, water station, surface water, farming, industry and other fields.
Key Features
- Infrared Dual Scattering Technology: Provides stable and accurate measurements unaffected by color variations in the sample.
- ISO7027 Compliance: Ensures reliable and industry-standard measurements of suspended solids and sludge concentrations.

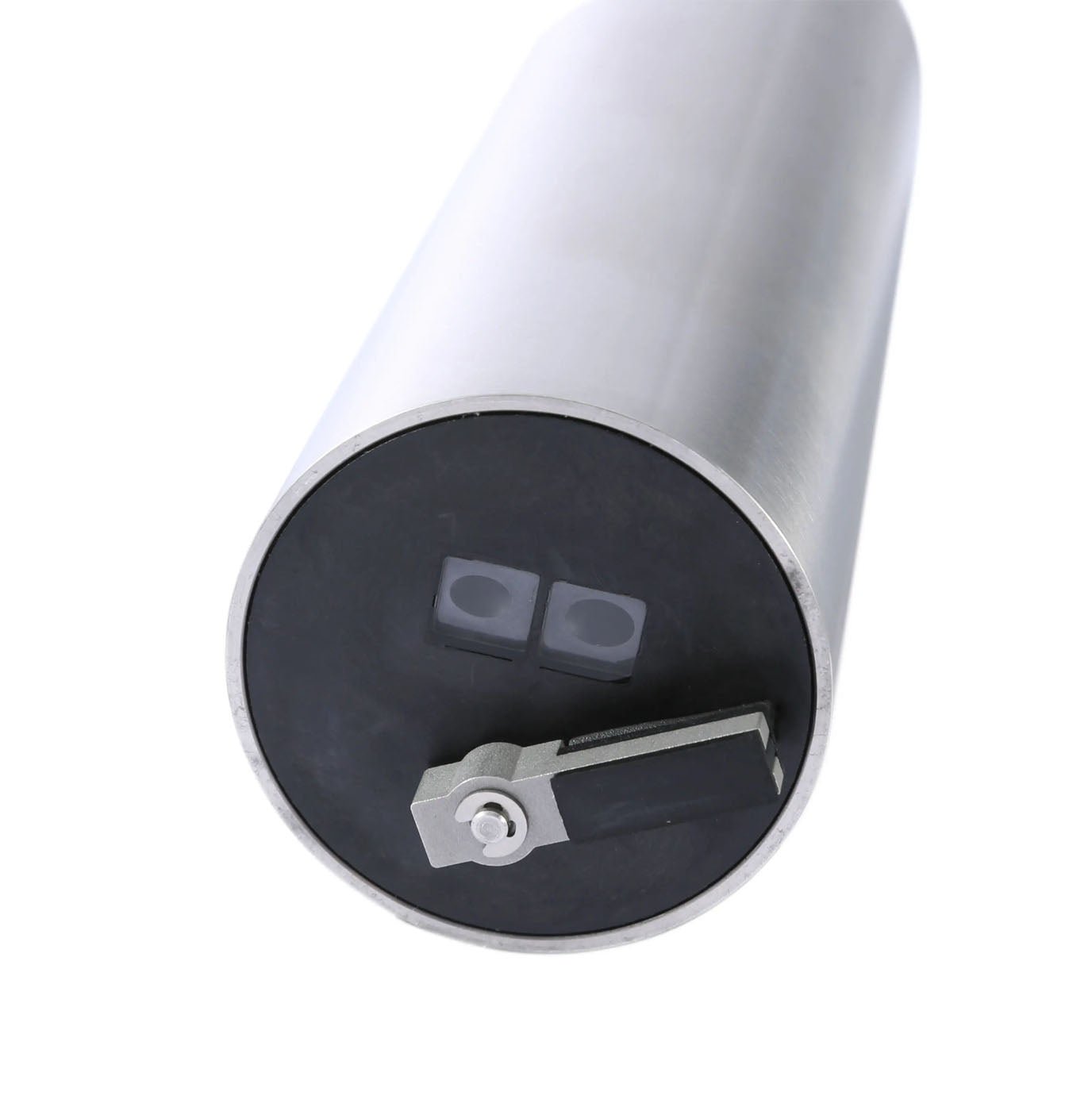

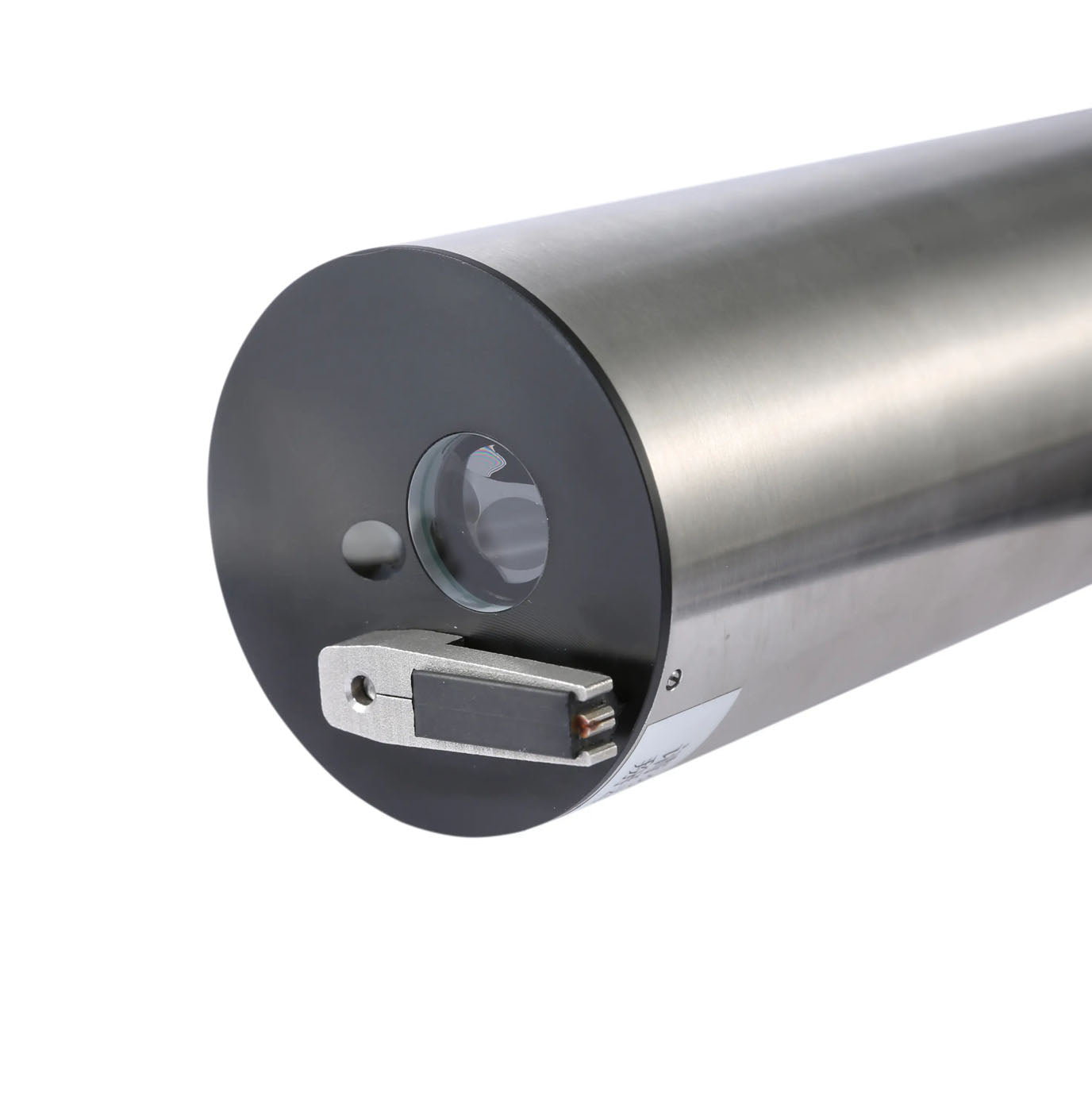

- Self-Cleaning Option: Available for environments prone to fouling, reducing maintenance and ensuring consistent performance.
- Built-in Self-Diagnostics: Monitors the sensor's performance and ensures accurate data output.
- Simple Installation and Calibration: Designed for easy setup and minimal calibration effort.
Ordering Notes:
1. All Sper Inline are sold separately - one of each is required for a complete system.
2. All Inline Water Quality Meters and Sensors ship direct from the factory. Please allow 10-15 business days for shipping and handling.
Specifications
Measurement Range | 0.01-20000 mg/L, 0.01-45000 mg/L, 0.01-120000 mg/L |
Communication | RS485 Modbus |
Main Materials | Main Body: SUS316L (Ordinary Version), Titanium Alloy (Seawater Version) Upper and Lower Cover:PVC Cable: PVC |
Waterproof Rate | IP68/NEMA6P |
Indication Resolution | Less than ± 5% of the measured value |
Pressure Range | ≤0.4Mpa |
Flow velocity | ≤2.5m/s,8.2ft/s |
Temperature | Storage Temperature: -15~65℃; Environment Temperature: 0~45℃ |
Calibration | Sample Calibration, Slope Calibration |
Cable Length | Standard 10-Meter Cable, Max Length: 100 Meters |
Power Supply | 12 VDC |
Size | Diameter 60mm* Length 256mm |
