INKBIRD smart radiator control valve helps you precisely detect radiator temperature and efficiently controls it in the desired temperature range. By sequentially linking the control valve, Wi-Fi Gateway, and smartphone, you can freely control the smart radiator control valve via your smartphone anytime, anywhere, including the remote setting of air temperature and checking temperature history. This control valve features multiple protective functions like anti-frost, anti-limescale, and vacation mode. It's an efficient product with power conservation and emission reduction, saving heating bills in winter and keeping your home warm and comfortable even in cold winters.

Main Features

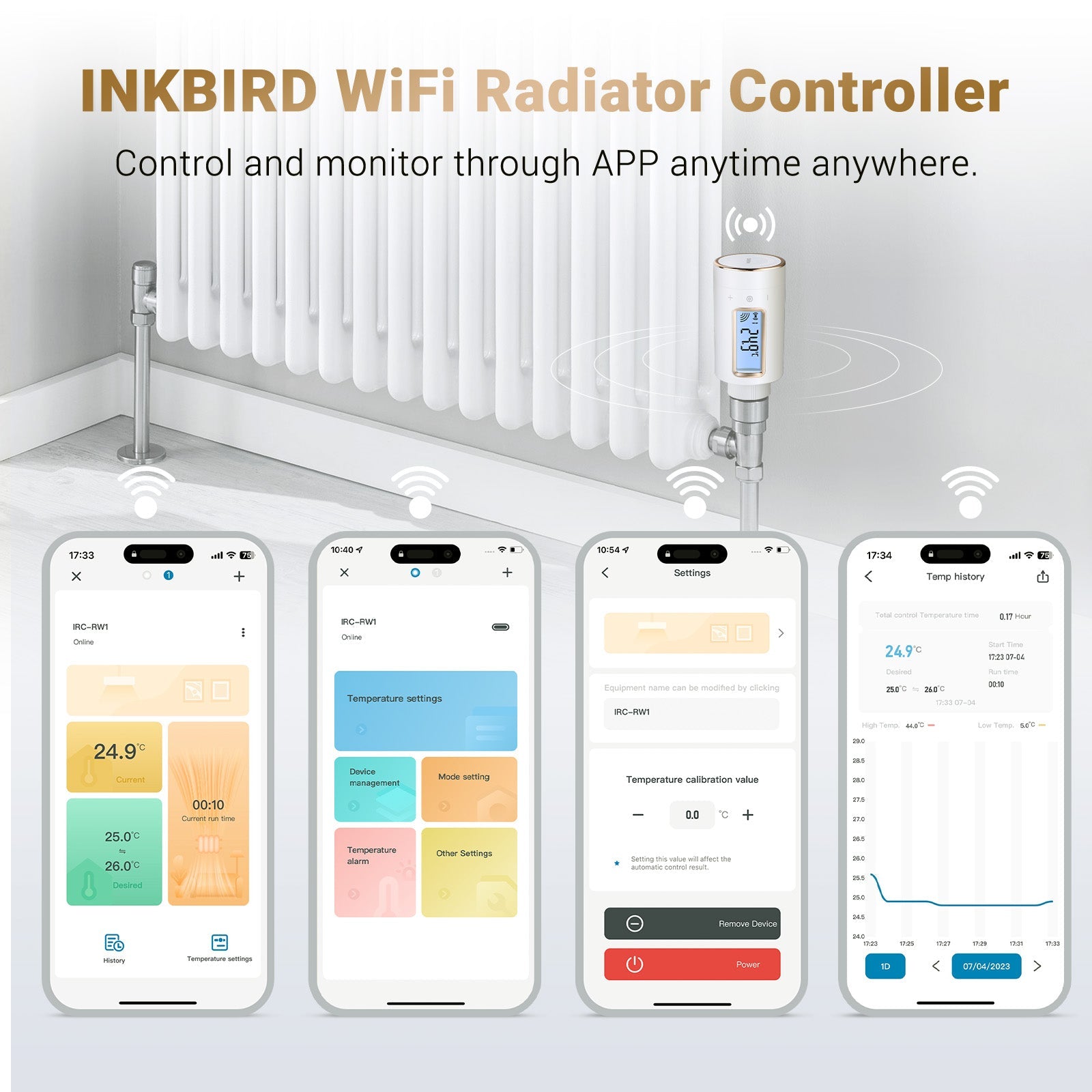

² Remotely control and monitor home radiator performance via WiFi connection

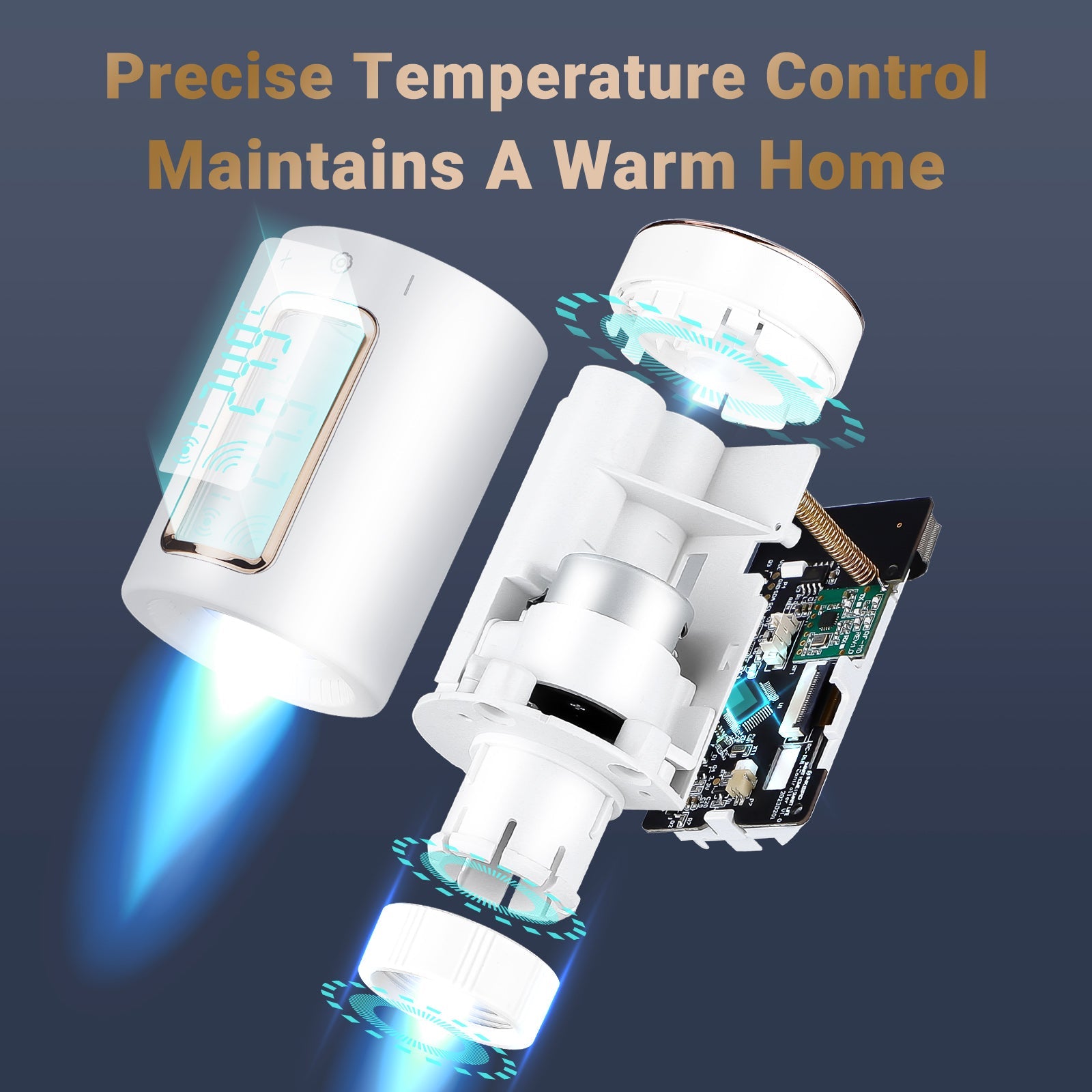

² Accurate temperature detection and control, ranging from 0℃~35.0℃

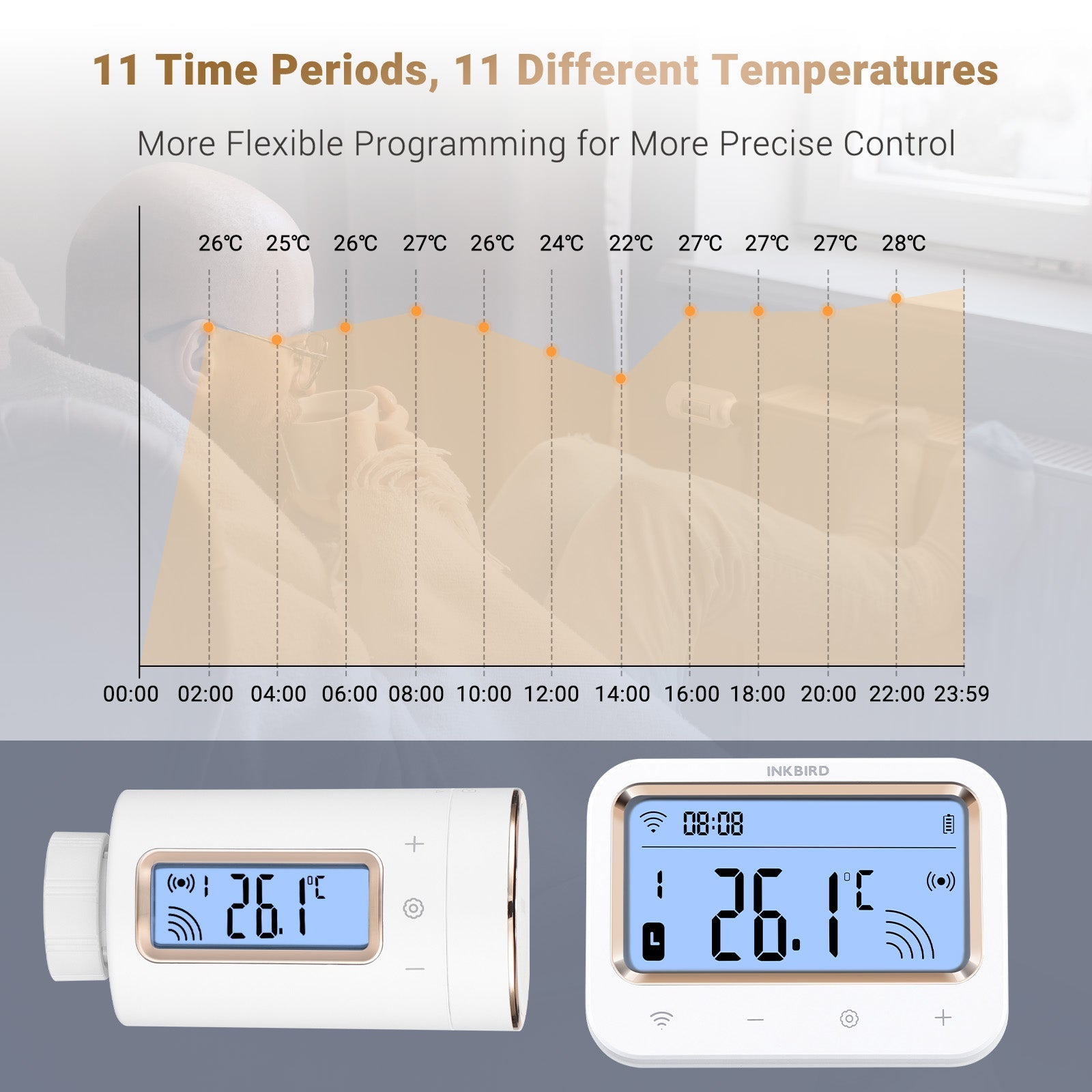

² Up to 11 time periods can be set, more flexible programming, more precise control

² High-efficiency radiator control valve with anti-frost and anti-limescale

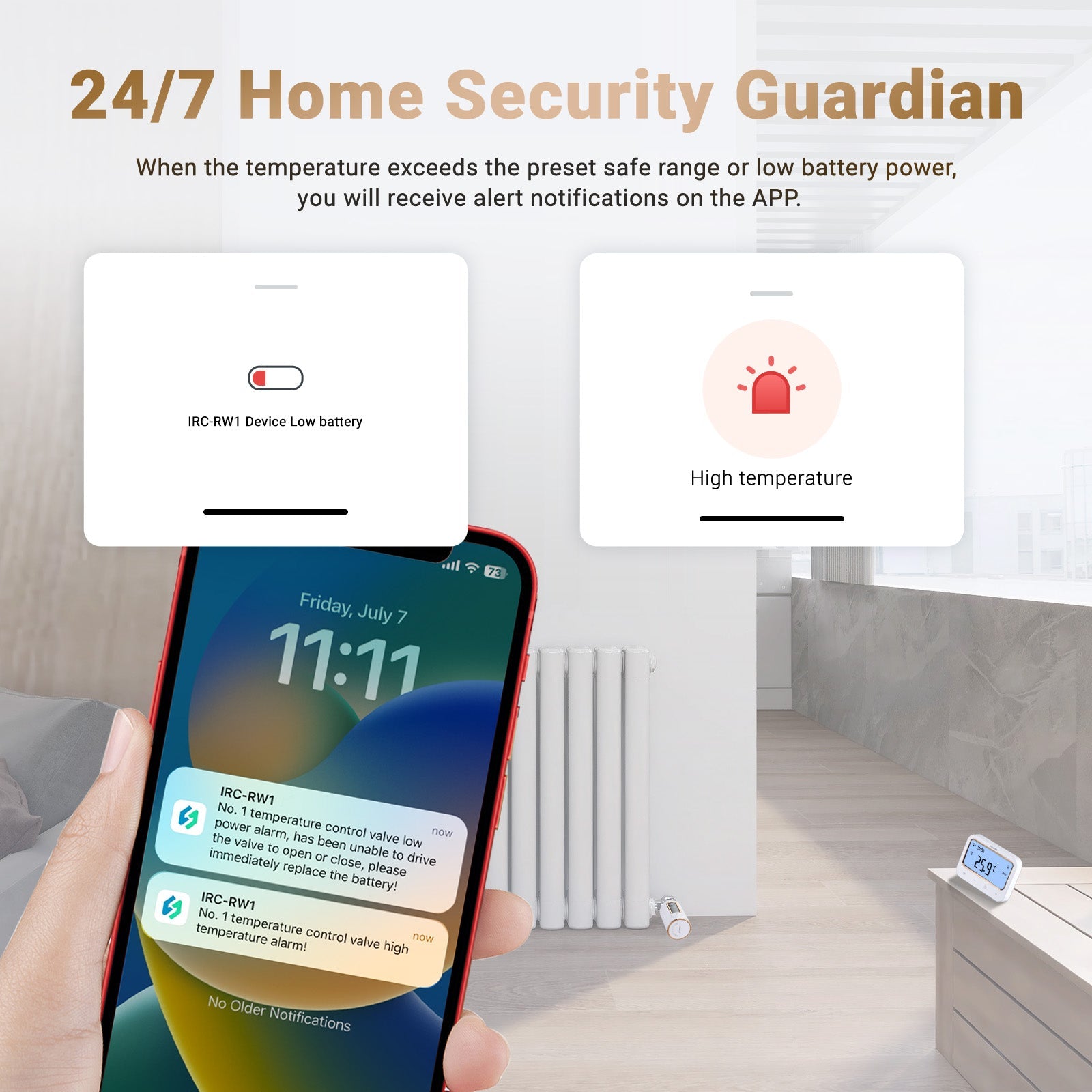

² High/low-temperature alarms and timely app-pushed notifications to ensure safe use

² Supports child lock to avoid misoperation and low battery protection to prevent burning loss

Specifications

l Product Model: IRC-RW1

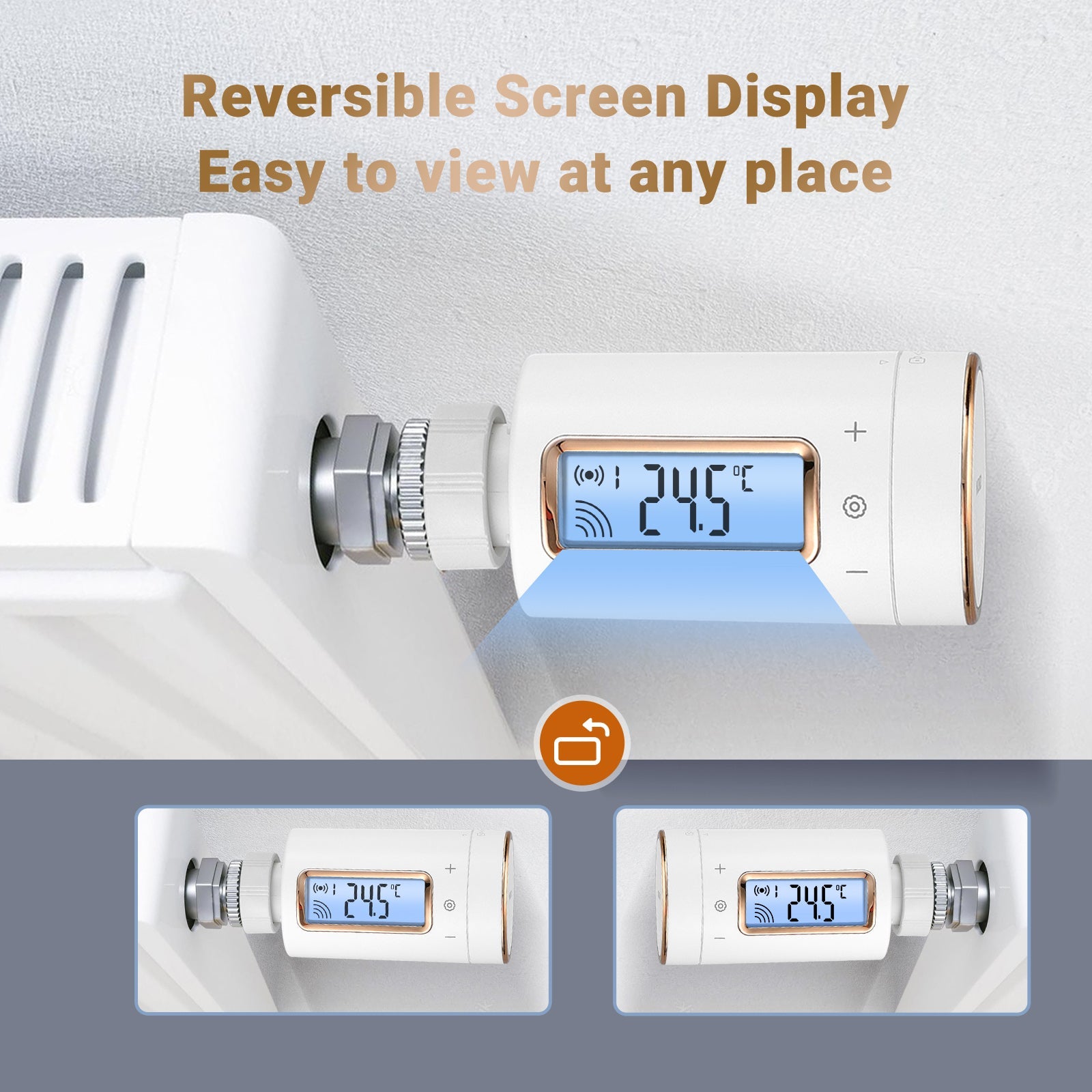

l Screen: LCD Screen

l Wi-Fi Gateway：powered by lithuim battery, DC5V, 1A

l Control Valve：2*AA dry batteries (not included)

l Temperature Heating Range: 0.0℃~35.0℃

l High Temperature Alarm Range: -10~50℃

l Low Temperature Alarm Range: -10~50℃

l Calibration Range: -4.9℃~4.9℃

l Time Setting Range: 00:00~23:59

l Maximum Time Period Can Be Set: 11

l Maximum Number of Connectable Devices: Up to 5 control valves can be connected and controlled by a smartphone connected to the gateway.

l Wi-Fi Gateway Dimension: 110*80*48.7mm

l Control Valve Dimension: ∮57*110.9mm

l Warranty Period: 2 Years

l Connection Range: Up to 180 meters of communication distance between the Wi-Fi gateway and the control valve

Package Contents

1x WiFi Gateway

1x Radiator Control Valve

3x Connectors (RA/RAV/RAVL)

1x Round Ring
