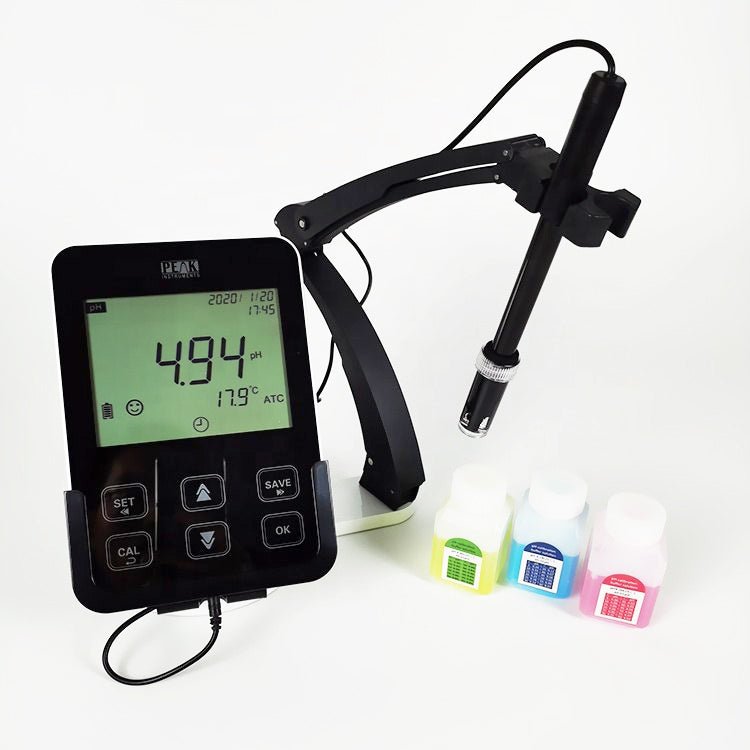

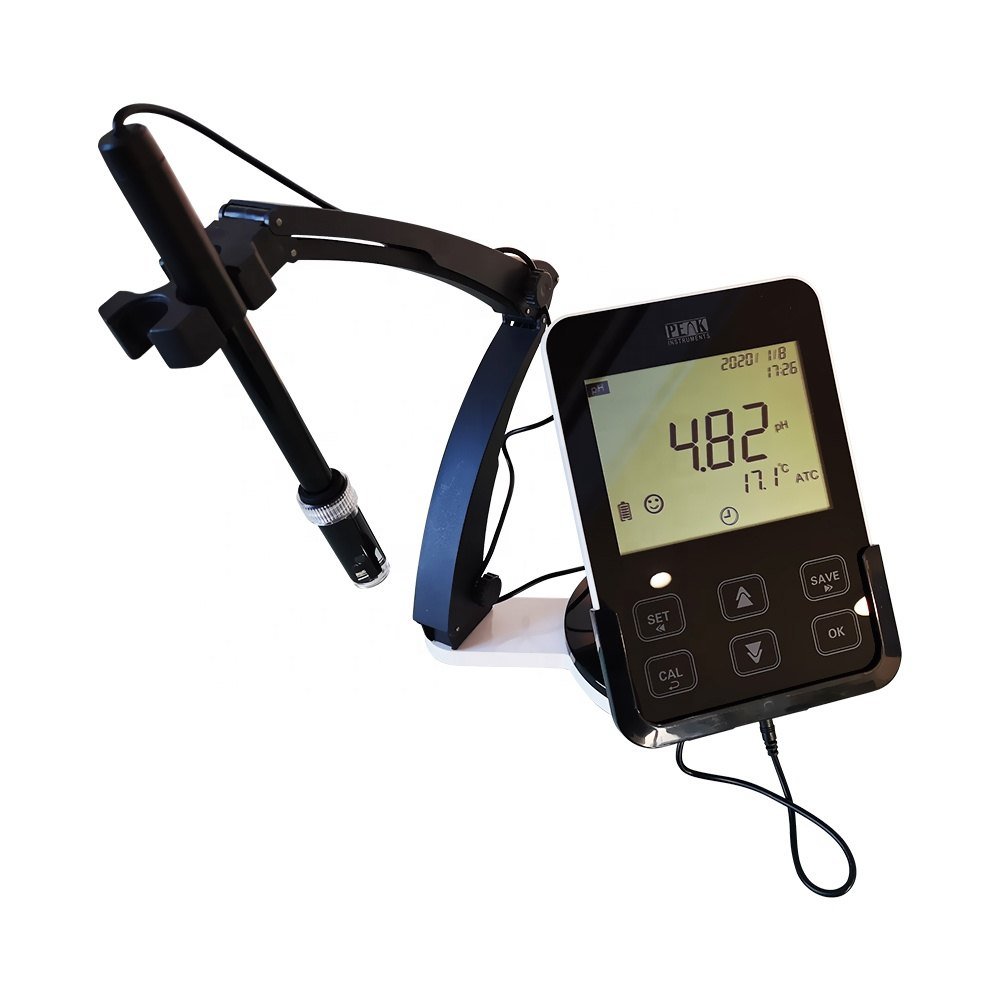

Introducing our state-of-the-art Benchtop pH Water Quality Meter, the perfect solution for comprehensive water analysis.
This innovative instrument integrates advanced electronics, sensors and software design to accurately measure pH and other parameters, including EC, DO, TDS, temperature and more (with additional probes). Its compact and portable design makes it ideal for use in industrial and mining enterprises, power plants, labs and various environmental applications.
The meter is equipped with a built-in microprocessor, offering automatic calibration, temperature compensation (both manual and automatic), data storage, function settings, automatic shutdown and low voltage alarms. These intelligent features ensure ease of use and reliable performance in various testing conditions. The digital filtering and slip techniques enhance the meter's response speed and data accuracy, providing precise and trustworthy results.
The meter comes with a range of sophisticated features:
- Elegant, functional design with 5 inch backlit LCD screen and wide 150° viewing angle

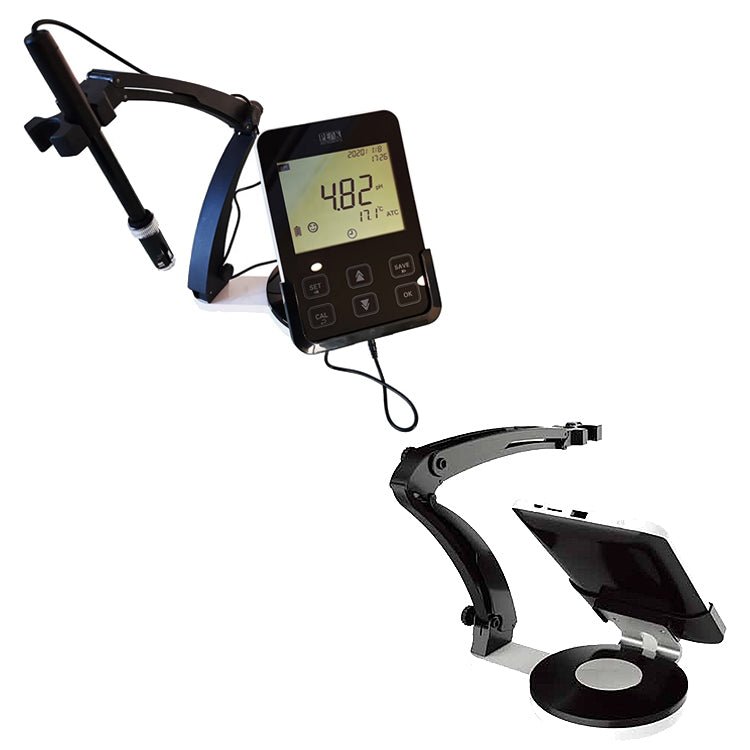

- Compact bench cradle with rotary electrode holder saves space in lab
- Small size and easy portability
- Extendability: Additional electrodes can be installed to test conductivity, dissolved oxygen and more
- 3.5 mm jack input for easy electrode connection
- USB and SD card interfaces for power and data transfer
- Can store 300 pieces of data internally, including readings, date and time
- Rechargeable, long lasting battery
- Auto shut off if there is no operation in ten minutes
Complete pH kit includes:
- L-510 pH Meter
- Composite pH electrode (ATC)
- Electrode holder and base
- Standard buffers (4.00, 6.86, 9.18pH)
- Power adapter
- USB thumb drive with users manual
Tablet Dimensions: 7.5" x 5" x 0.4" (190×130×10 mm)
Probe Arm Length: Approx. 16" (152 mm) fully extended
Weight: 10 oz. (280g)
Note: This item ships direct from the manufacturer. Please allow an additional 7-10 business days for order processing and shipment on all Peak instruments.
Specifications
pH | Measurement range Resolution Accuracy Input current Input impedance Stability Temp compensation | (-2.00 ~ 19.99) pH 0.1/0.01 pH ±0.02 pH ≤2×10-12 A ≥1×1012 Ω ±0.01 pH/3h (0 ~ 100)℃ (auto or manual ) |
mV | Measurement range(mV/ORP/EH) Resolution Accuracy | -1999.9mV ~ 0 ~ 1999.9mV 1mV ±0.1% FS |
Temperature | Range Resolution Accuracy | 0℃ ~ 100℃ 0.1℃ 5~ 60℃:±0.4℃, Others: ±0.8℃ |
Calibration | 1, 2, 3 point | |
Other Parameters | Data storage Power Communication interfaces Dimensions & Weight | 300 sets DC 5V/1A USB 190*130*10mm/300g |
Working Conditions | Temperature Humidity IP grade | (5 ~ 35)℃ ≤85% IP54 |
Working Conditions
Data Storage | 300 sets |
Storage Contents | Series number, measuring value, unit, temperature and time |
Power | AC Adapter |
Size & Weight | 190×130×10 mm / 280g |
Ambient Temperature | 5~35°C (grade0.01) |
Humidity | ≤85% |
IP Grade | IP57 |
Downloads
