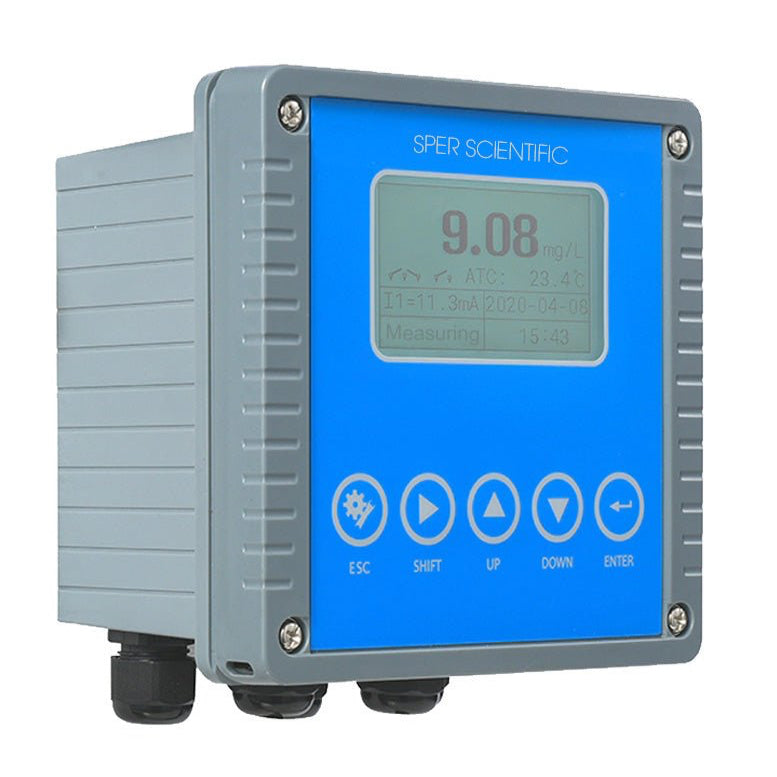

Inline Dissolved Oxygen Analyzer is designed for continuous, real-time DO monitoring across a wide range of industrial processes.
Built with a rugged yet straightforward design, the industrial dissolved oxygen probes deliver precise measurements in any process condition. Ideal for industries like pharmaceuticals, food and beverage, chemicals, power, microelectronics and clean water applications, this system ensures reliable dissolved oxygen monitoring.
- Efficient and easy-to-service dissolved oxygen measurement
- Measures dissolved oxygen levels from ppb to ppm
- Fast response time, even at ppb levels
- Durable, hygienic design for continuous online monitoring
- User-friendly operation with an intuitive interface
- Lower overall cost per measurement point
Ordering Notes:
1. ALL SPER ONLINE WATER QUALITY METERS AND SENSORS ARE SOLD SEPARATELY - Please be sure to add the appropriate sensor (listed above) when purchasing your meter - ONE METER AND SENSOR are required for a complete system.
2. All Inline Water Quality Meters and Sensors ship direct from the factory. Please allow 10-15 business days for shipping and handling.
Specifications
Model | Sper #870007 Dissolved Oxygen Meter | |
Measurement | Dissolved Oxygen, Temperature | |
DO Range | 0.00~20.00 ug/L 0.00mg/L~20.00 mg/L 0.00%~200.00 % -10.0℃~130.0℃ | |
| Accuracy | 1%, ±0.2℃ | |
Housing Material | ABS Flame retardant: V0 | |
Power | 90 – 260V AC 50/60Hz | |
Consumption | 4W | |
Output | Two ways 4-20mA output | |
| Communication | RS485 Modbus | |
Relay | Two relays, 5A/250V AC, 5A/30V DC | |
Temperature.Comp | PT1000 / NTC10K / 22K | |
| Dimension | 144×144×104mm | |
| Hole size | 138*138mm | |
Protection | IP65 | |
Language | English / 简体中文 | |
Installation | Panel / Wall / Pipe mounted | |
