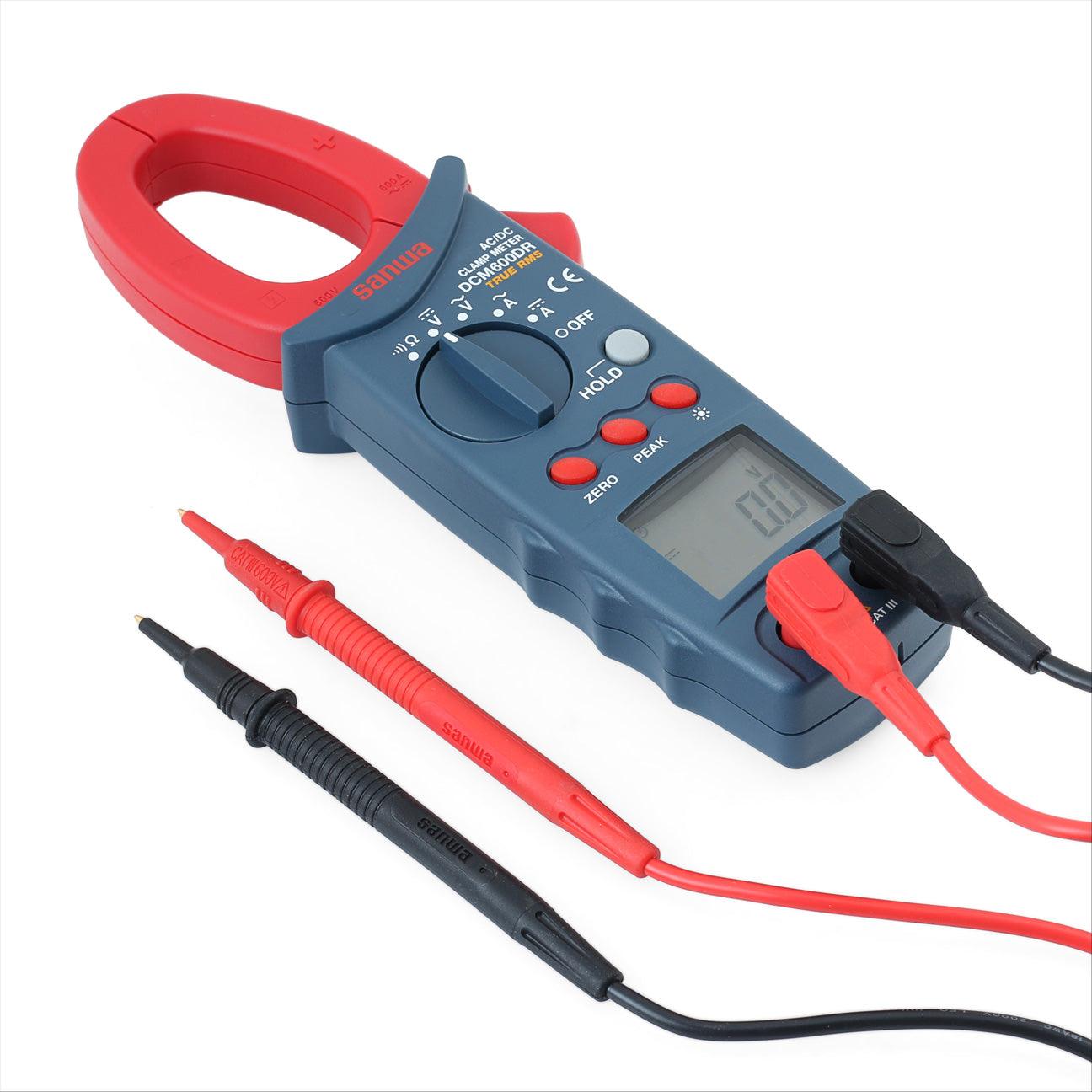

The Sanwa DCM600DR is a True RMS Digital Clamp Meter / Multimeter designed for use in CAT III environments.
This DCM600DR can measure a maximum of 600 Amperes of AC/DC current. It can measure AC/DC current up to 600 Volts, the resistance of 999.9Ω, and perform continuity tests with a buzzer alarm. This device is suitable for current and voltage measurements of low-voltage circuitry, electric equipment, and power supply facilities.
The device offers various functions such as data hold, peak hold, zero, etc. It features a 6000-count display with a back-light feature. The device also has an auto-power save feature that turns the screen off after 30 minutes of no use.
Meter includes one set of test leads, carrying case and instruction manual.
- AC/DC current measurable max. 600A & DMM function
- True RMS
- 6000 count LCD with Backlight
- Data hold
- Relative value
- Peak hold (1ms)
- Auto power save (30min after the last operation) (non-cancelable)
Specifications
| Function | Range | Accuracy | Resolution | Input Impedance |
|---|---|---|---|---|
| DCA | 60/600A | ±(2%+5) | 0.01A | |
| ACA | 60/600A | ±(2%+5) | 0.01A | |
| DCV | 600V | ±(1%+2) | 0.1V | 1MΩ |
| ACV | 600V | ±(1.2%+5) | 0.1V | |
| Resistance | 999.9Ω | ±(1%+7) | 0.1Ω | |
| Continuity | Buzzer sounds at less than 40Ω Open voltage: Approx. 2.9V | |||
| Sampling rate | 3 times/sec. |
| Bandwidth | 50-500Hz |
| Display | 6000 |

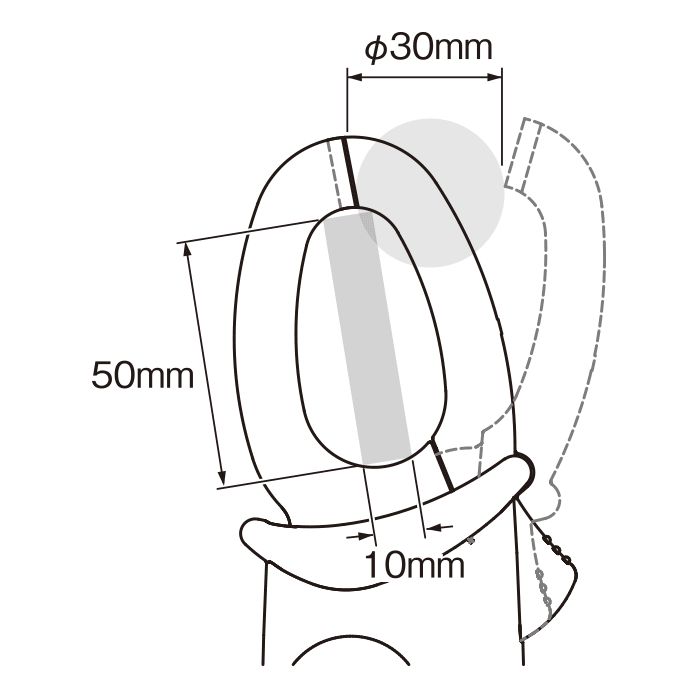

| Clamp diameter/Conductor size | Φ30mm/10×50mm |
| Battery | LR03×2 |
| Battery life | Approx. 40 hrs. (Backlight off) |
| Size/Mass | H208×W69×D38mm Approx. 260g |
| Safety standards | IEC61010 CAT.Ⅲ600V |
| *In the peak hold mode, the measuring range is fixed at 600A. |
