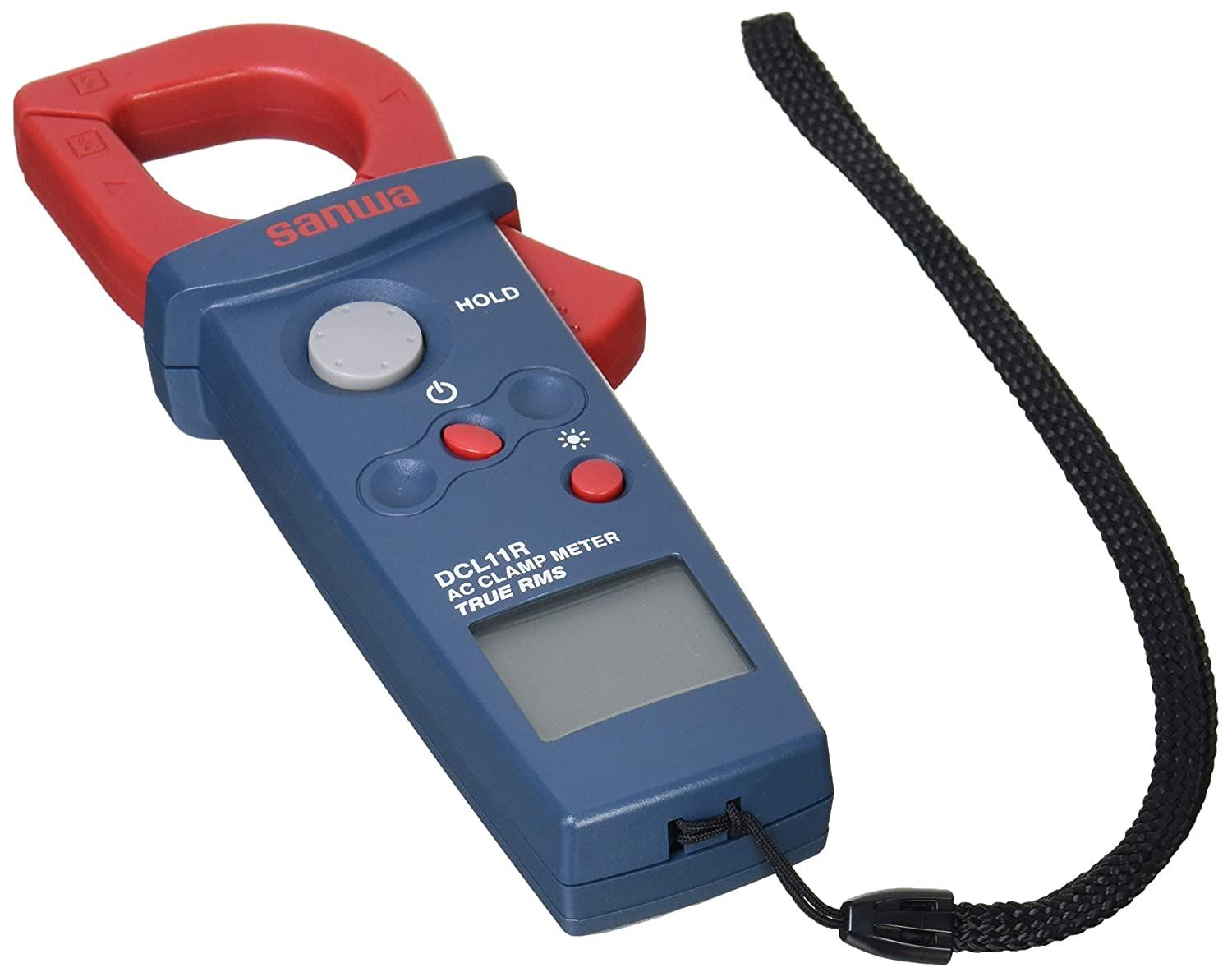

The DCL11R is a compact clamp meter with True RMS capability.
The DCL11R clamp meter allows users to measure the current range specified in IEC61010-1 CAT. III 300V. It is suitable for measuring the current of low-voltage power lines and electrical appliances. The clamp sensor in this instrument has a maximum input current rating of 320 Amperes with a max overload protection of 350 Amperes. The device comes with a 6000-count display with backlight functionality which extinguishes after 10 seconds of use. It also features the hold function that allows users to pause a reading on the screen.
The meter operates on 2x AAA batteries with a power consumption of 1.9mA, and provides a use time of approximately 500 hours.

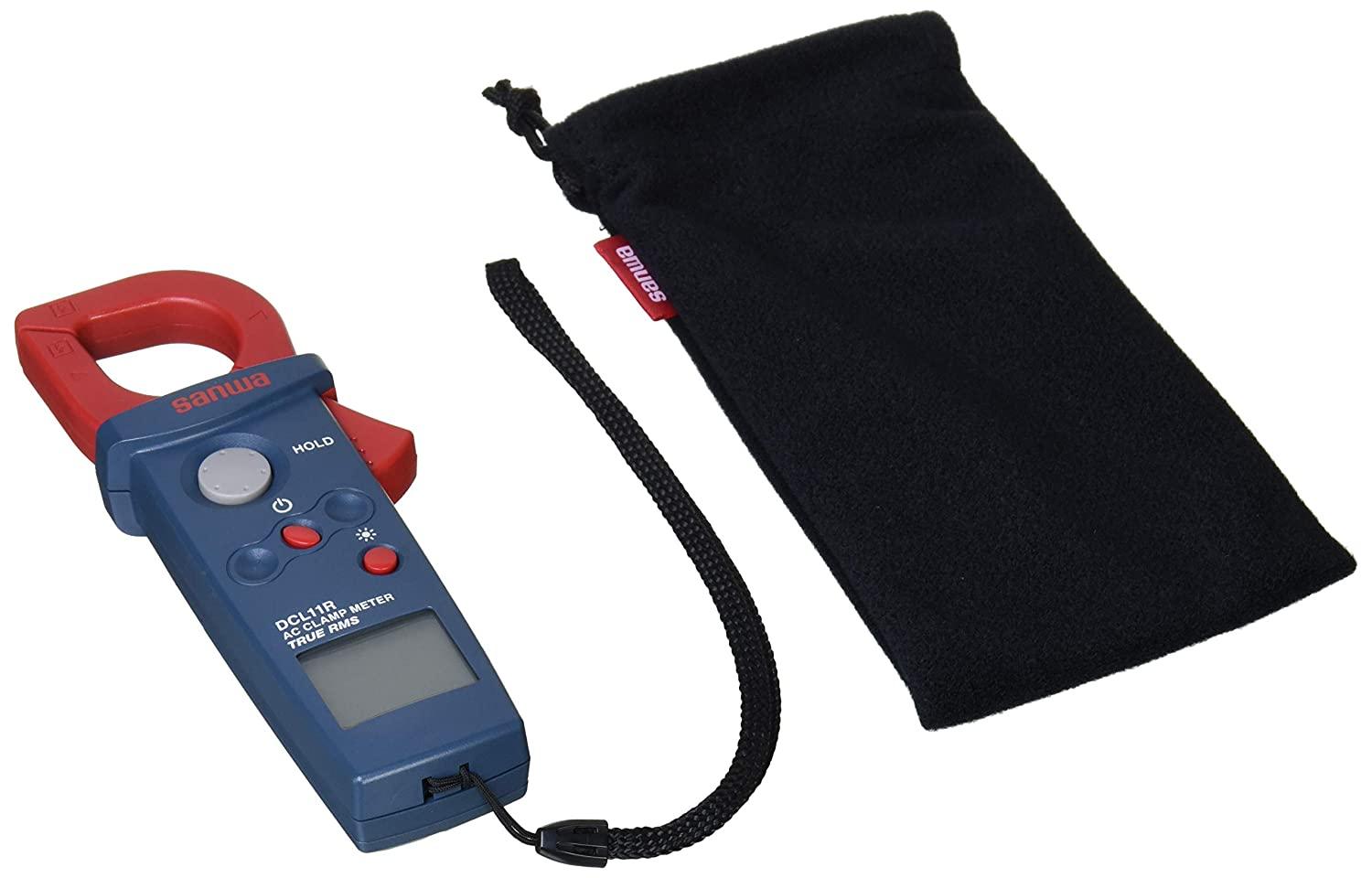

Includes meter, pouch, carry strap and instructions
- Compact, pocket size clamp meter
- True RMS conversion
- 6000 Count Display
- Maximum Input current rating 320A
- Auto power off
- Backlight
| Function | Range | Accuracy | Resolution |
|---|---|---|---|
| ACA | 60/300A | ±(2.0％+5) | 0.01A |
| Sampling rate | Approx. 2 times/sec. |
| Bandwidth | 45-400Hz |
| Display | 6000 |

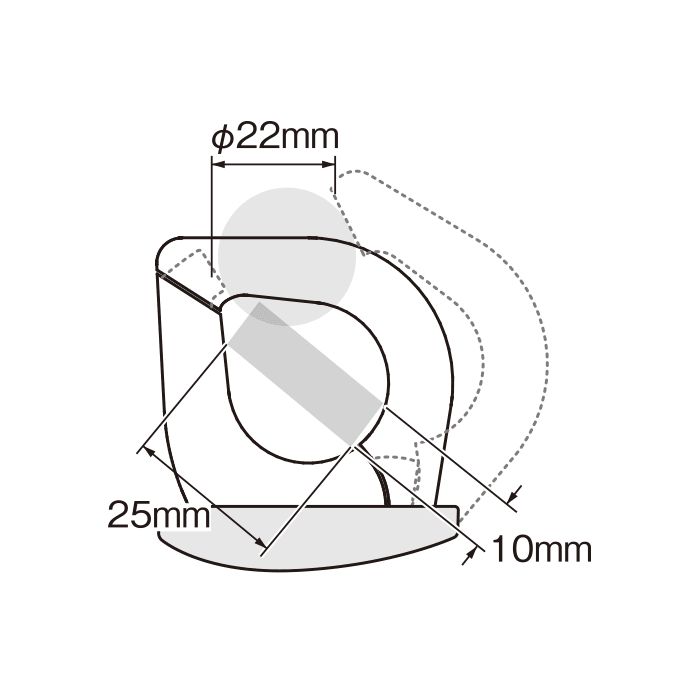

| Clamp diameter/Conductor size | 22mm/10x25mm |
| Battery | LR03x2 |
| Battery life | Approx. 500 hrs. |
| Size/Mass | H145xW54xD31mm/Approx. 120g |
| Safety standards | IEC61010 CATIII300V |
