30 Amp Analog Multimeter is Designed Specifically for Automotive Use.

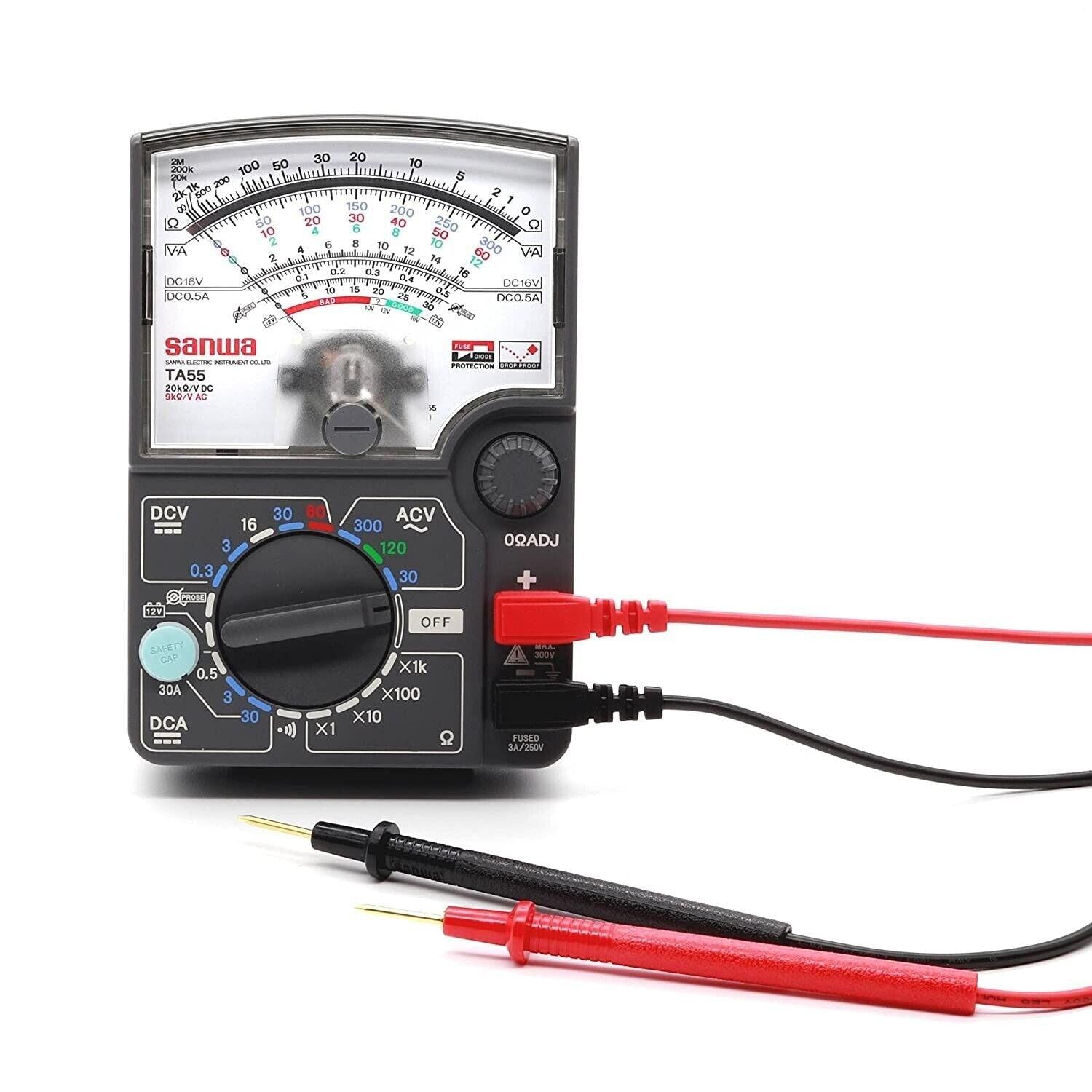

The Sanwa TA55 is a portable analog multi-tester that comes with a color-matching scale and high DC current measurement for automotive applications.
The TA55 multimeter is a taut-band type meter with an easy color matching scale and measurement ranges for DCV, DCA, & ACV measurements. The TA55 can measure DC current of up to 30 Amperes or 300 Amperes DC using an optional CL33DC clamp. The device can measure a maximum of 60 Volts DC and 300 Volts AC making it perfect for measuring home electrical outlets and electric appliances. Measuring resistances of up to 2MΩ and continuity test with a buzzer that sounds at less than approximately 70Ω is also possible with a TA-55 analog multi-tester.
The device has a protective casing that provides protection against drop shocks and has a (250V / 3A) breaking capacity (300A) fast-blow fuse for protecting the internal circuity of this instrument.
Includes meter, one set of test leads and instruction manual.
- 30A range for automotive
- Color matching scale
- Continuity check buzzer

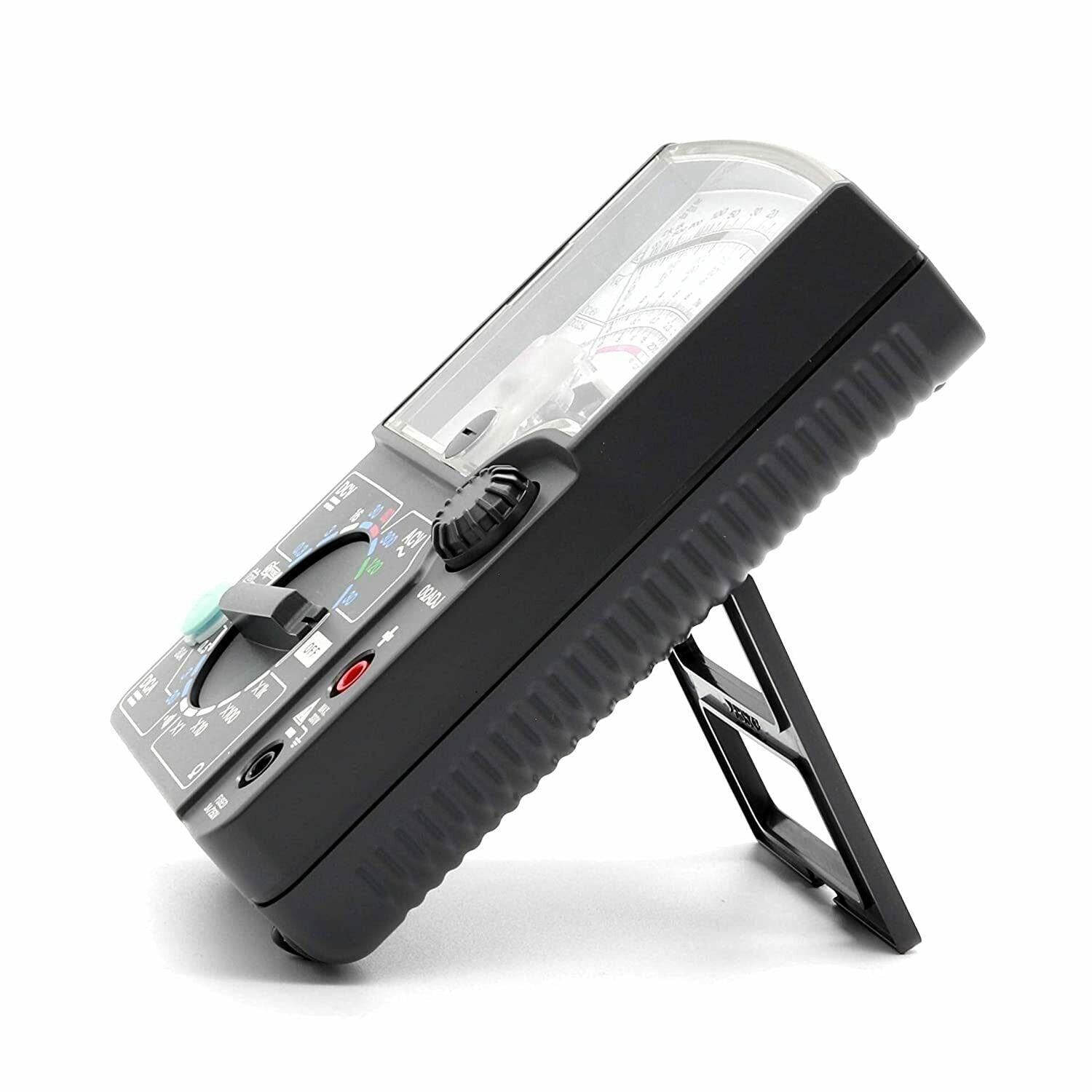

- Tilt-stand
- Measurable up to DC30A / DC300A with optional clamp probe (#CL33DC)
Specifications
| Function | Range | Tolerance |
|---|---|---|
| DCV | 0.3/3/16/30/60V（20kΩ/V) | ±3% of full scale |
| ACV | 30/120/300V（9kΩ/V) | ±4% of full scale |
| DCA | 0.5/3/30A | ±5% of full scale |
| Resistance | 2k/20k/200k/2MΩ | ±3% of arc |
| Continuity | ≦ approx. 70Ω: Beep sounds. Open circuit voltage: approx.3V | |
| Battery check | For 12V automobile battery | |
| Frequency characteristic | 40Hz to 5kHz: frequency response within ±3% |
| Battery | R6P(AA battery)1.5Vx2 |
| Built-in fuse | F0020 Φ6.4x30mm 3A/250V 300A Glass fuse |
| Size/Mass | H142×W97×D38mm/Approx. 300g |
| *The value in （ ）at DCV and ACV is input resistance |
