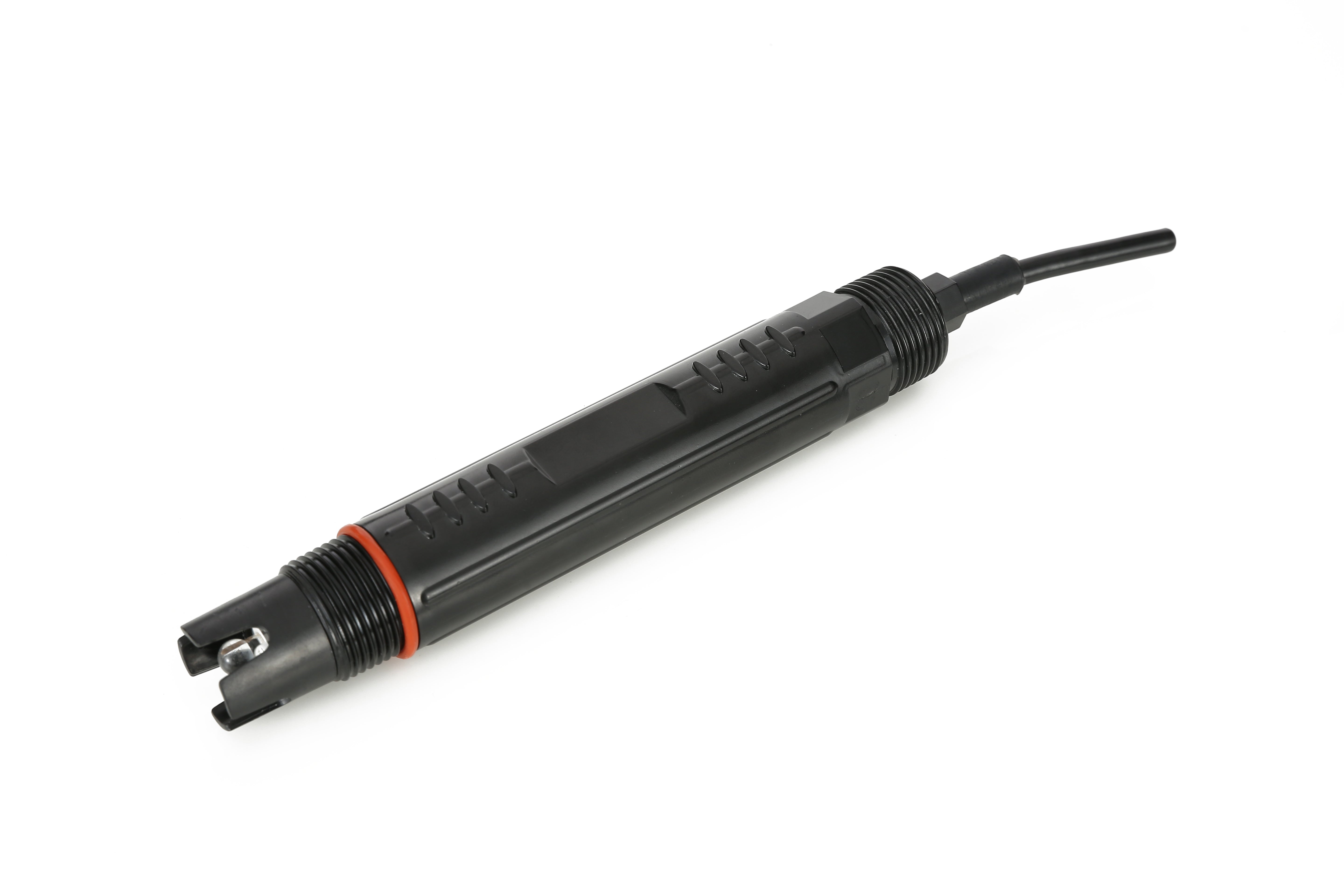

The electrode features a world-class solid dielectric and a large PTFE liquid junction, ensuring a non-blocking design that is easy to maintain.
Its long-distance reference diffusion channel enhances durability, allowing it to withstand harsh environments for extended service life. The PPS/PC casing, combined with a 3/4NPT threaded pipe on both ends, simplifies installation without the need for a separate jacket, reducing overall installation costs. Equipped with a high-quality, low-noise cable, it maintains signal integrity for distances of over 20 meters without interference.
With no need for additional dielectric, this electrode requires minimal maintenance while offering high accuracy, quick response times, and excellent repeatability. It features a silver ion Ag/AgCl reference electrode and proper use can further extend its service life. The electrode can be installed laterally or vertically in reaction tanks or pipelines.
Key Features:
- Solid dielectric and large PTFE liquid junction for low maintenance
- Long-distance reference diffusion channel for extended lifespan
- Durable PPS/PC casing with 3/4NPT threads for easy installation, no jacket required
- High-quality low-noise cable allows interference-free signal over 20 meters
- Minimal maintenance with no need for additional dielectric
- High accuracy, fast response, and good repeatability
- Silver ion Ag/AgCl reference electrode
- Versatile installation: lateral or vertical in tanks or pipelines
Ordering Notes:
1. All Sper Inline are sold separately - one of each is required for a complete system.
2. All Inline Water Quality Meters and Sensors ship direct from the factory. Please allow 10-15 business days for shipping and handling.
Specifications
| Measuring Range | 0-14pH |
| Temperature Range | 32-140ºF (0-60℃) |
| Compressive Strength | 0.6 MPa |
| Slope | ≥96％ |
| Zero point potential | E0=7 PH±0.3 |
| Internal impedance | 150-250 MΩ (25℃) |
| Material | Natural Tetrafluoro |
| Profile | 3-in-1 Electrode (Integrating the temperature compensation and the solution grounding) |
| Installation size | Upper and Lower 3/4NPT Pipe Thread |
| Connection | Low-noise cable goes out directly |
| Applications | Applicable to various industrial sewage, environmental protection and water treatment |
Downloads
