Online Residual Chlorine Meter

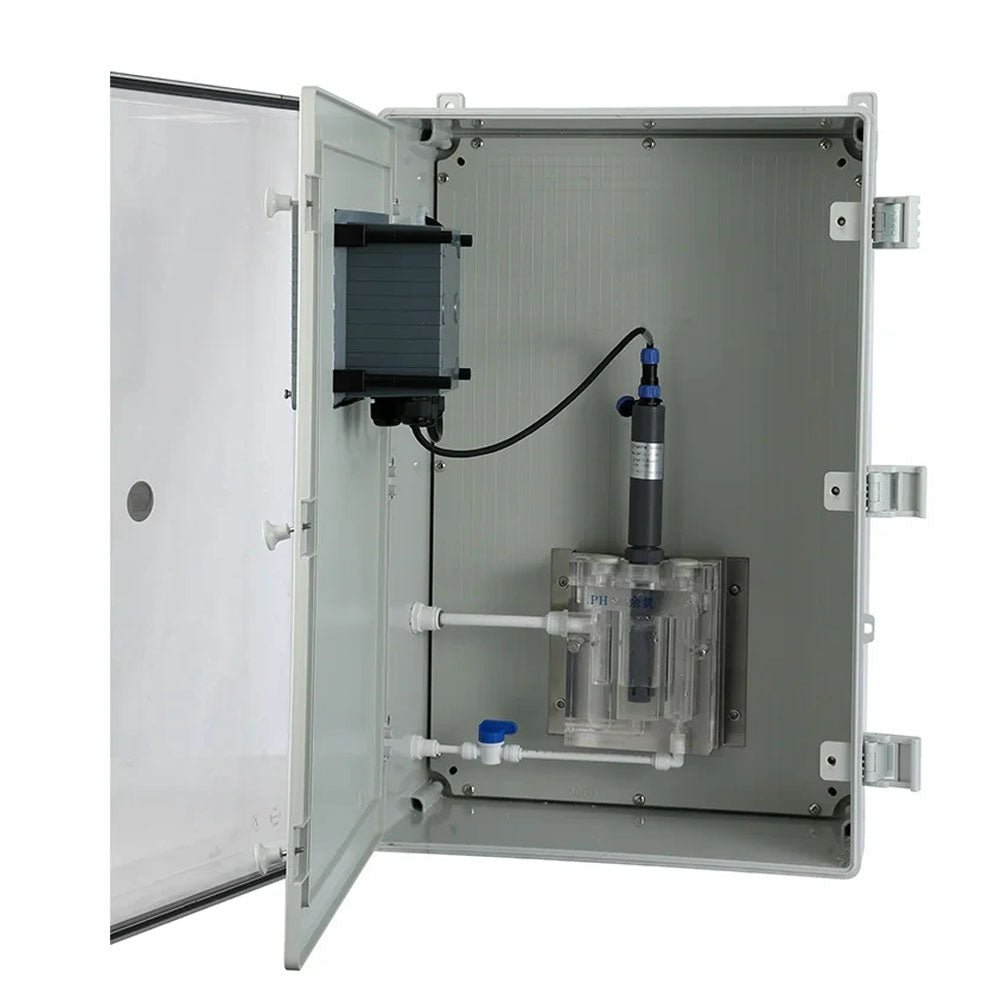

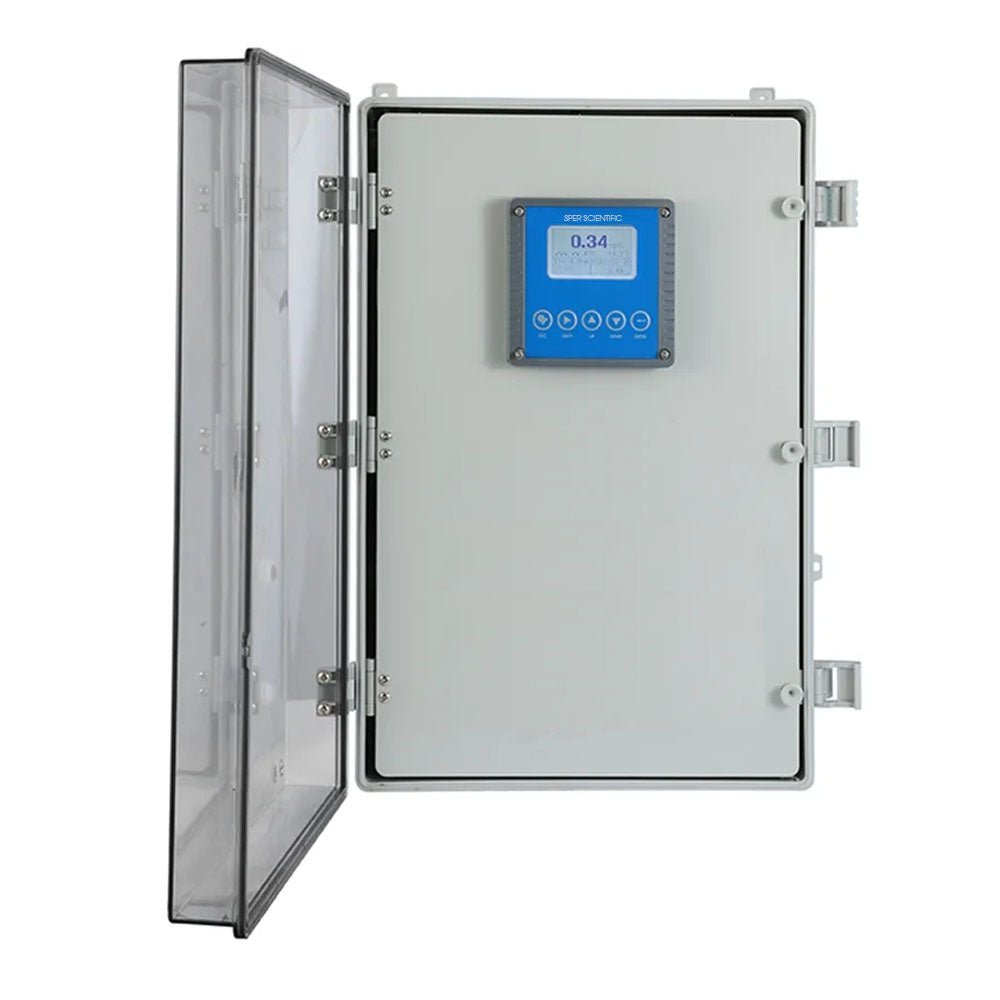

The Online Residual Chlorine Meter seamlessly integrates a digital residual chlorine sensor, flow cell, piping, and valve into a single unit. This unified system allows for centralized monitoring and management via a controller. It combines online water quality analysis, database management, and calibration functions, making chlorine data collection and analysis straightforward and efficient.
Applications:
- Continuous monitoring of residual chlorine in clean water
- Chlorine monitoring in swimming pools
- Measurement of chlorine in food and beverage water
- Potable water quality assessment
- Process liquid monitoring
- Evaluation of treated process water
- Monitoring of pipe networks and secondary water supplies
Features:
Plug and Play
With precision digital residual chlorine sensor
Bubble Rejection System
Classic flow cell design
Automatic Drain Function
Less manual maintenance
Wide Power Range
85V AC ~ 265V AC
Anti-Electromagnetic Interface
Anti-electromagnetic interference and surge protection
Power Off Protection Function
Saves measurement data completely on power disruption
Specifications
| Product | Inline Residual Chlorine Meter |
| Measured Parameters | Residual Chlorine, Temperature |
Measuring Range |
0-60℃ 0-20 mg/L (pH:5.5-10.5) |
| Unit | Turbidity: mg/L Temperature: ℃ |
| Resolution | 0.01 mg/L 0.1℃ |
Accuracy | Residual chlorine: ±2% FS, Temperature ±0.5℃ |
Power | AC 85-265V 50/60Hz |
Current output | 4-20mA |
Communication | RS485 Modbus RTU |
Protection | IP65 |
Relay | 2 relays, 5A/250V AC 5A/30V DC |
| Wireless | Optional (for Mobile App and Website) |
| Flow | 15L-30L/H |
Overall Dimensions | 600mm × 400mm × 230m（L×W×H) |
Inlet | 6mm |
Outlet | 10mm |
Protection | IP65 |
