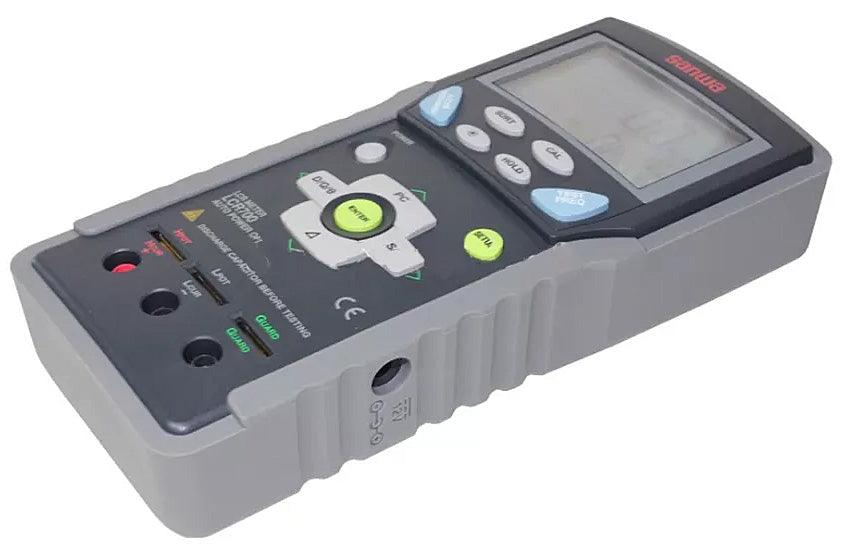

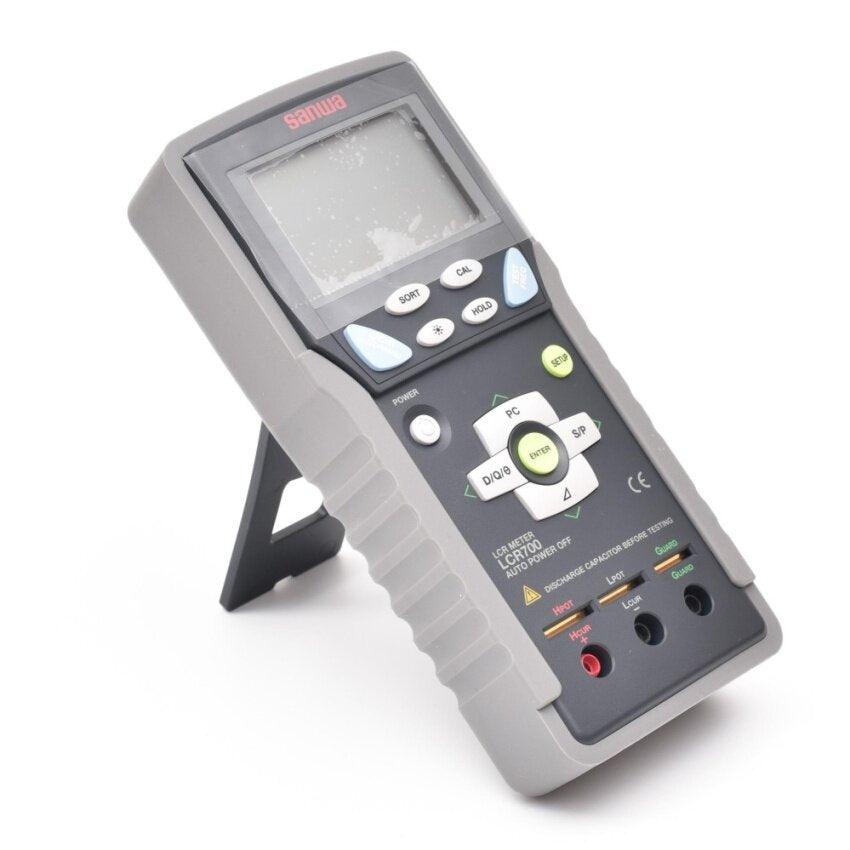

LCR700 Handheld Digital LCR Meter - Portable Inductance Capacitance Resistance Tester for Electronics, DIY Projects & Circuit Repair | Perfect for Engineers, Technicians & Hobbyists
Sku: 42968358 in stock
$179.08
$325.6
45% Off
Delivery & Return: Free shipping on all orders over $50
Estimated Delivery: 10-15 days international
23 people viewing this product right now!
Guranteed safe checkout
Description
LCR700 is a full-featured, high-performance LCR meter that rivals the capabilities and options of many of its benchtop counterparts.

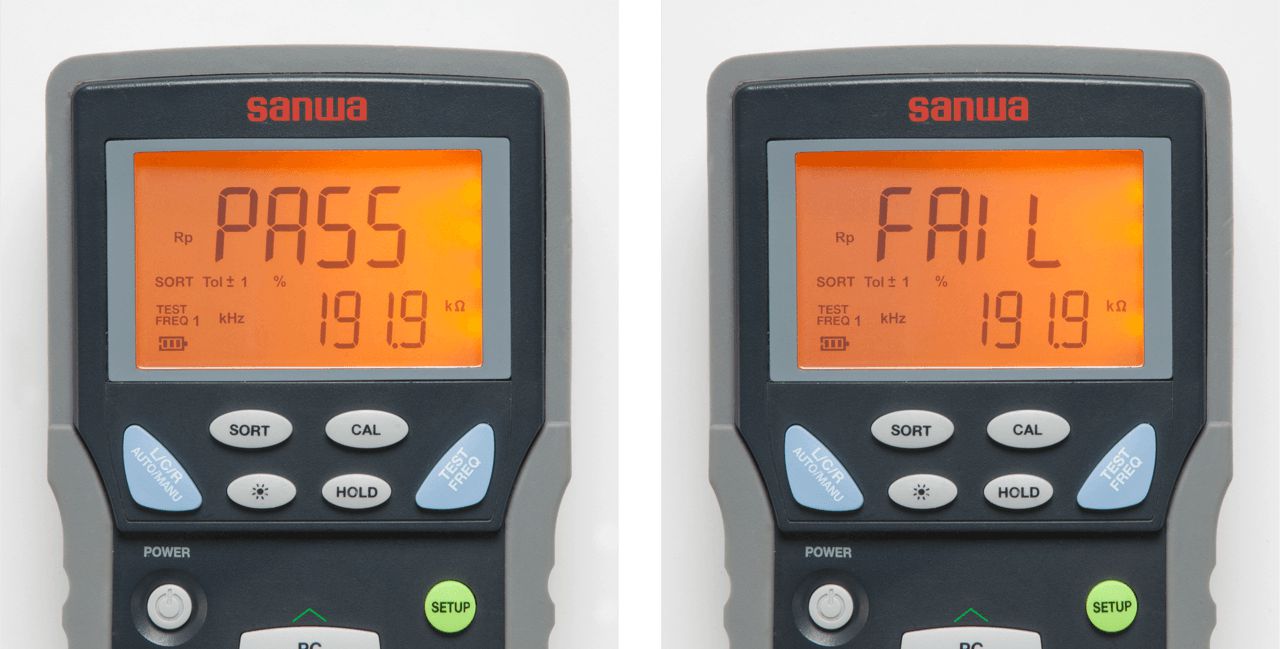

This instrument features a device value sorting function, allowing users to quickly sort passive devices in situations such as incoming inspections.
- Automatically selectable L/C/R measurement and Selectable Series/Parallel mode
- Ls/Lp/Cs/Cp measurement with sub parameters (D/Q/ Ω¸/ESR)
- 5 different measuring frequencies (100/120/1k/10k/100kHz)
- DC resistance function (7 ranges: 200.00 Ω to 200.0M Ω)
- 5-terminal measurement (4 terminals plus guard shielding)
- Device Sorting mode to allow users to quickly sort passive devices such as L, C, and R
Separately available companion software and "LCR-USB" communication unit will allow you to transfer the measured data to your PC with ease.
Specifications
| Functions | Ranges | Accuracy |
|---|---|---|
| Ls/Lp | 20.000u/200.00u/2000.0u/20.000m/200.00m/2000.0m 20.000/200.00/2000.0/20.000kH | ±(0.3%+3) |
| Cs/Cp | 200.00p/2000.0p/20.00n/200.00n/2000.0n/ 20.000u/200.00u/2000.0u/20.00mF(50pF or less: out of accuracy) | ±(0.3%+3) |
| Rs/Rp | 20.000/200.00/2.0000k/20.000k/ 200.00k/2.0000M/20.000M/200.0MΩ | ±(0.3%+3) |
| Ω | 200.00/2.0000k/20.000k/200.00k/ 2.0000M/20.000M/200.0MΩ | ±(0.3%+3) |
| Sampling rate | 1.2 times / second (LCR mode) 0.5 times /second (DCR mode) |
| Measurement frequencies | 100/120/1k/10k/100kHz |
| Power supply | 6LF22/6LR61 alkaline 9V |
| Battery life | Approx. 35 hours (auto LCR mode, 1 kHz) |
| Size / Mass | H184 x W87 x D45 mm / Approx. 400g |
