High Precision Manometer SD Card Data Loggers - Monitor Pressure & Temperature for Industrial, HVAC, and Laboratory Use
Sku: 37173753 in stock
$185.35
$337
45% Off
Delivery & Return: Free shipping on all orders over $50
Estimated Delivery: 10-15 days international
14 people viewing this product right now!
Guranteed safe checkout
Description

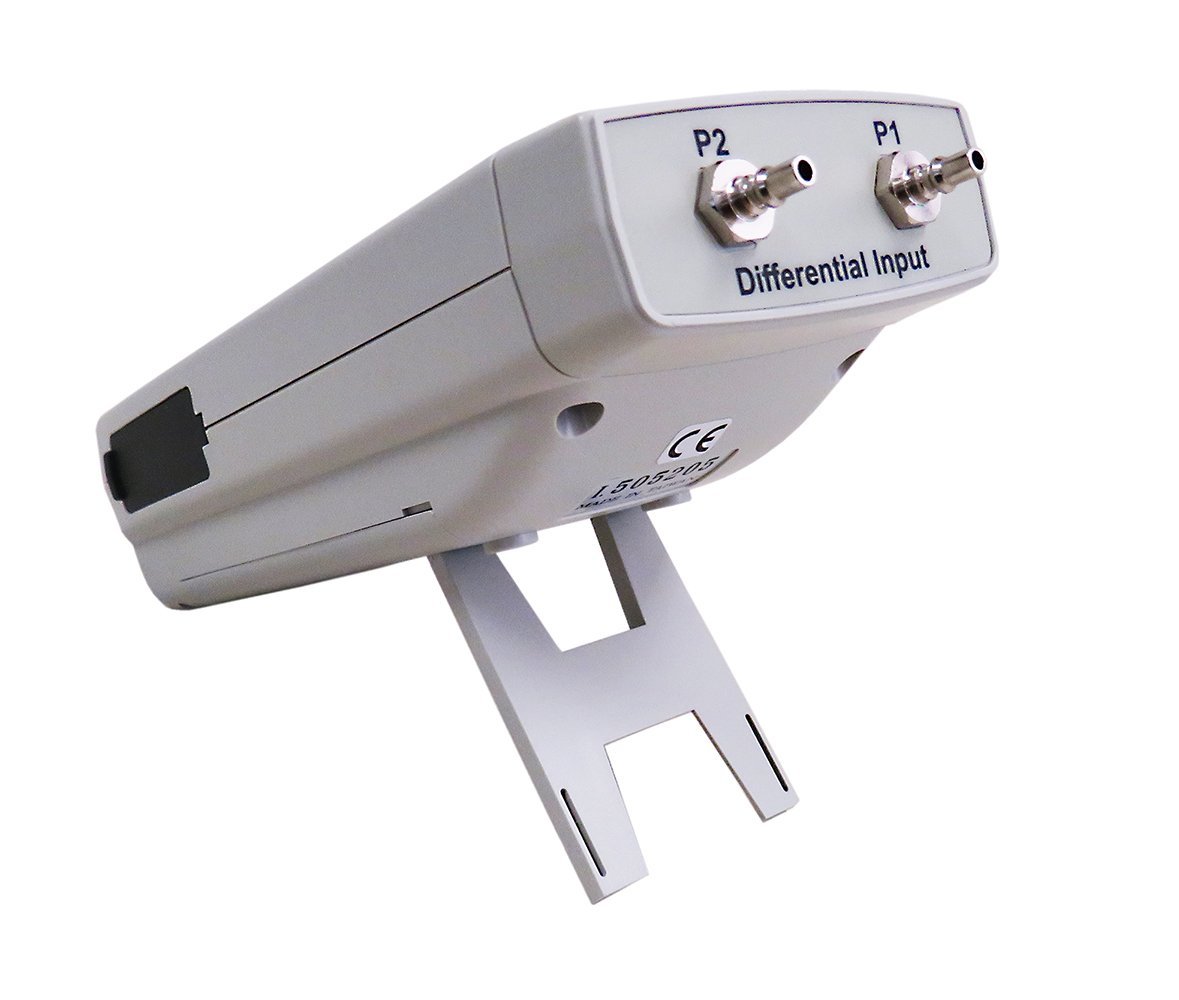

Reads gauge and differential pressure in non-corrosive and non-ionized air and gas.

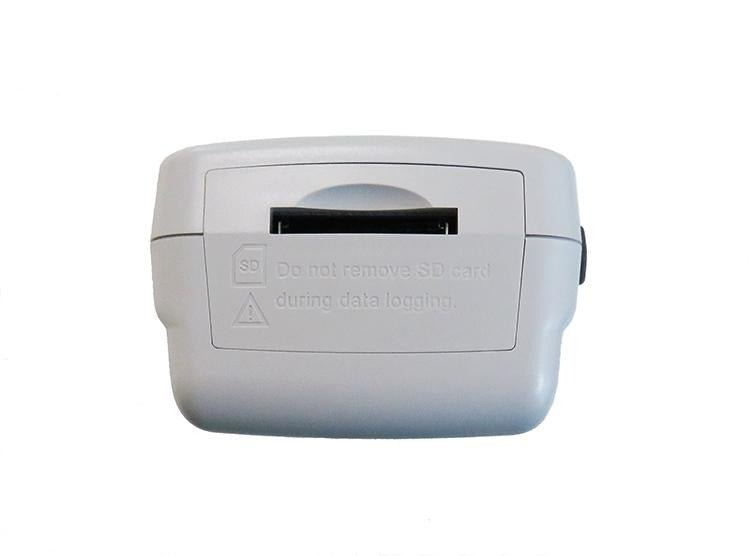

Records data along with date and time onto standard SD memory cards (like a digital camera). When full, simply exchange SD cards for unlimited data storage. The removable SD card is easy to transport and insert into a computer’s memory card slot or SD card reader. Uploads preformatted data to Excel, without the need for additional software and cables. Additional SD cards are readily available in a variety of memory sizes.
Features 10 units of measure, push-button zero offset, min/max, auto power off, low battery indicator and hold function. This well-made unit is accurate to +/-2% full scale and includes a fold-out easel back and a large easy-to-read backlit LCD.
Features 10 units of measure, push-button zero offset, min/max, auto power off, low battery indicator and hold function. This well-made unit is accurate to +/-2% full scale and includes a fold-out easel back and a large easy-to-read backlit LCD.

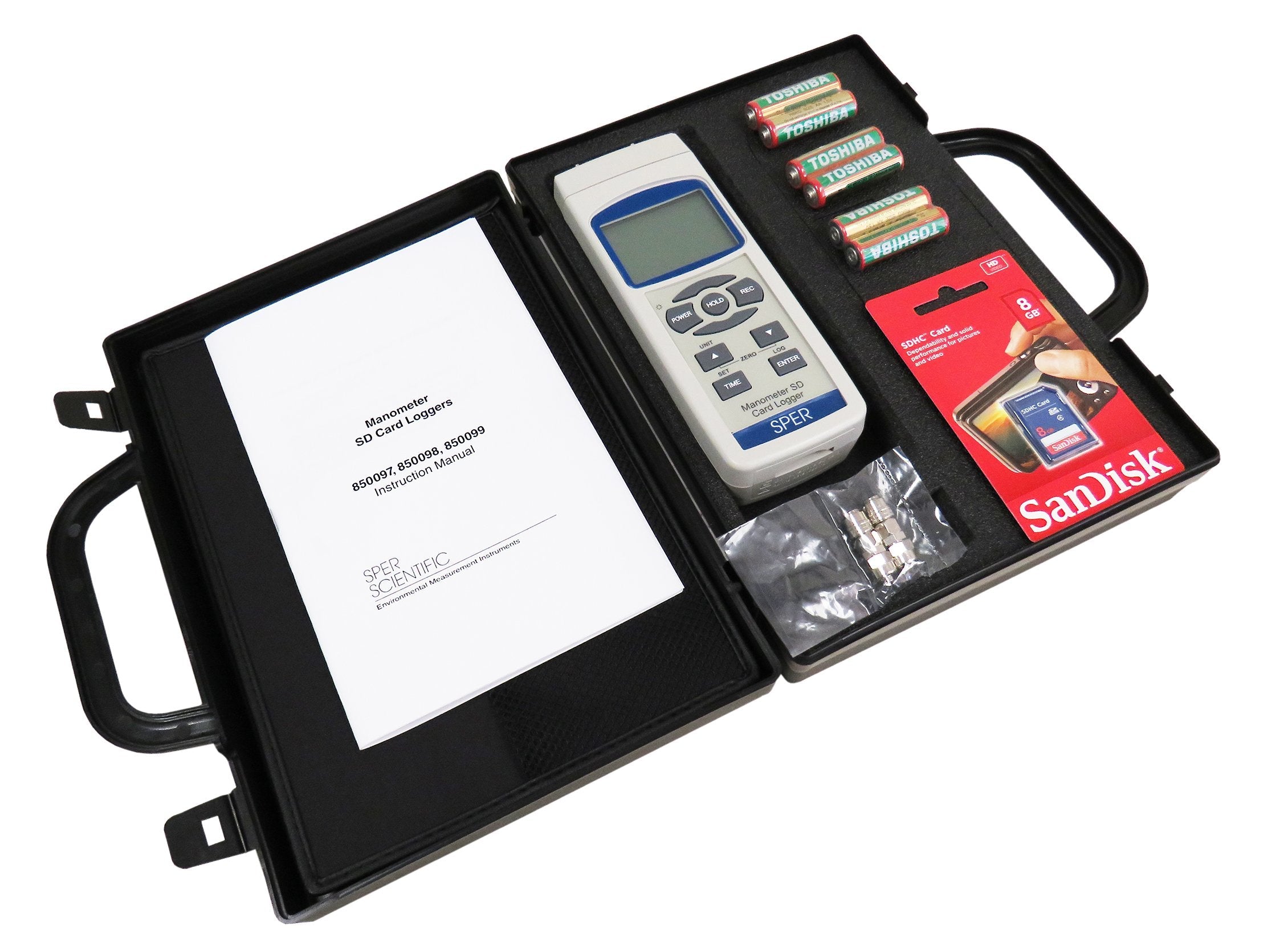

Comes ready to use with a carrying case, 6 AA batteries, tubing and pipe attachment lugs, instruction manual, and an SD card. Uses optional USB Power Cable , or AC Adapter .
Please note: This unit is not for use with liquids.
Dimensions: 7" × 2¾" × 1¾" (178 × 70 × 44 mm)
Weight: 1 lb. (0.45 kg)
N.I.S.T. traceable Certificate of Calibration available at additional cost (Select option above).
Specifications
| Meter | 850097 | 850098 | 850099 | |||
|---|---|---|---|---|---|---|
| Range ± | Res. | Range ± | Res. | Range ± | Res. | |
| PSI: | 2.9 | 0.001 | 29 | 0.01 | 101.5 | 0.05/0.1 |
| In H²O: | 80 | 0.05 | 802 | 0.5 | 2810 | 2 |
| m H²O: | 2.040 | 0.001 | 20.4 | 0.01 | 71.35 | 0.05 |
| hPa: | 20 | 0.01 | 200 | 0.1 | 700 | 0.5 |
| kPa: | 200 | 0.1 | 2000 | 1 | 7000 | 5 |
| In Hg: | 5.905 | 0.002 | 59.05 | 0.01 | 30.54 | 0.1 |
| mbar: | 200 | 0.1 | 2000 | 1 | 7000 | 5 |
| mm of Hg: | 150 | 0.1 | 1500 | 1 | 5250 | 5 |
| Kg cm²: | 0.204 | 0.001 | 2.04 | 0.001 | 7.135 | 0.005 |
| Max Pressure: | 3 PSI | 29 PSI | 101 PSI | |||
| Accuracy: | ±2 fs% | |||||
| Atmosphere: | 0.197 | 0.001 | 1.974 | 0.001 | 6.905 | 0.005 |
