The Sanwa PDM5219S is a lightweight Analog Insulation Tester with 3 test ranges of 125 / 250 / 500 Volts DC.
The PDM5219S is a DC insulation resistance tester to measure the insulation resistance of electric lines and electric equipment. The device’s main function is to measure insulation resistance and has a maximum insulation measuring range of 500V/ 100MΩ. It has 3 test voltage ranges DC500V/250V/125V.
The PDM5219S can not only measure insulation resistance it can also measure DC voltages (60 Volts, max), as well as AC voltages (600 Volts, max). Just like the , the PDM5219S is also an IEC61010-1 CAT.III 600V certified and comes with an IP20 protection rating.

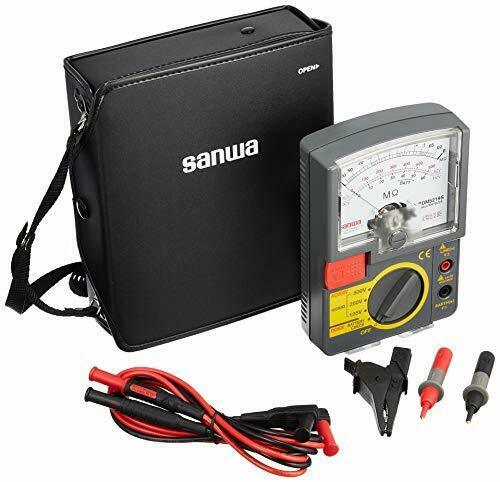

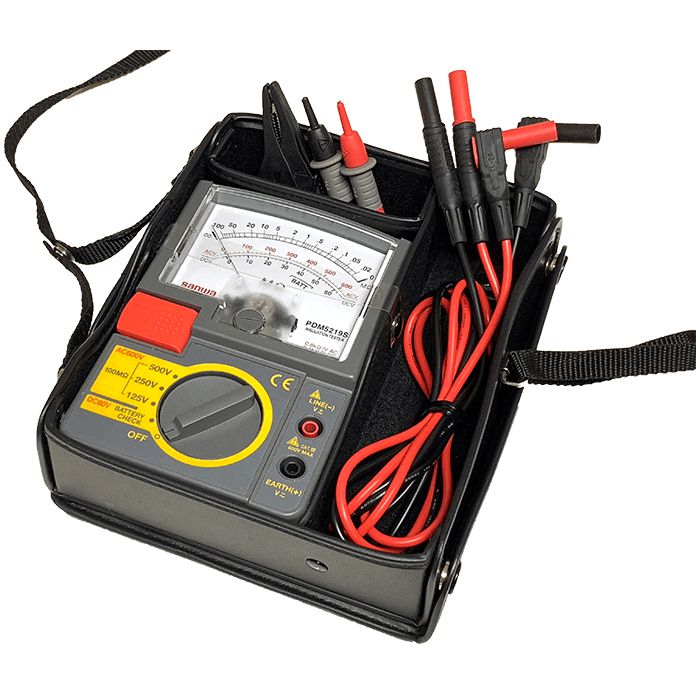

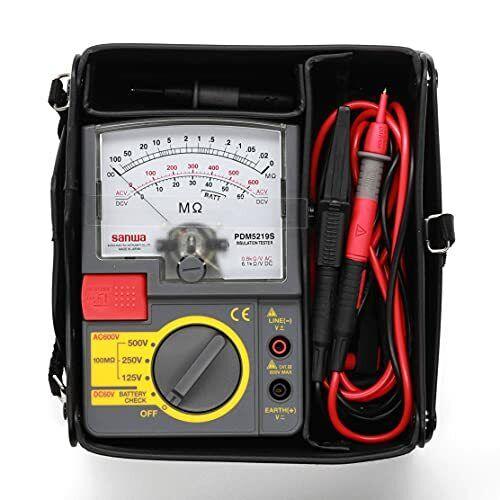

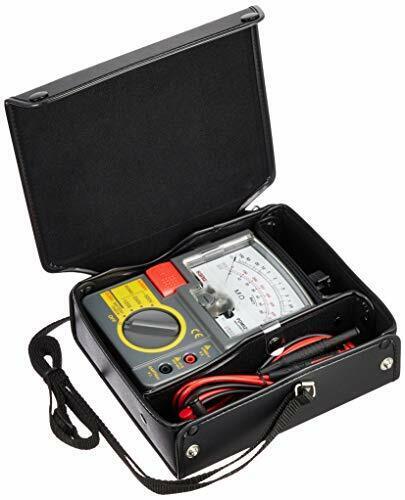

Meter includes test leads, carrying case with strap and instruction manual.
- Test voltage DC500V/250V/125V
- Easy viewing and readable scale graduations
- One-shot or continuous measurement push switch
- DCV measurement range (DC60V)
- Auto discharge function
- Inner battery check range
- IEC61010-1 CAT.III 600V certified
- IP20 Rated
Specifications
| Scale (MΩ) | 0.02～0.1～50～100MΩ 500V/250V/125V | |
| Accuracy | ± 5% of reading (1st effective measurement range : written in thick print above) ±10% of reading (2nd effective measurement range : written in small type above) | |
| ACV | 600V | |
| Tolerance | Within ±5% of the max. scale value(50～60Hz sine wave) | |
| DCV | 60V | |
| Tolerance | Within ±5% of the max. scale value | |
| Rated current | 1.0～1.2mA | |
| Battery | 6LF22/6LR61 (9V alkaline battery) x1 | |
| Size/Mass | H144×W99×D43 mm / Approx. 310g | |
| Safety standard | IEC61010 CAT.Ⅲ 600V | |
