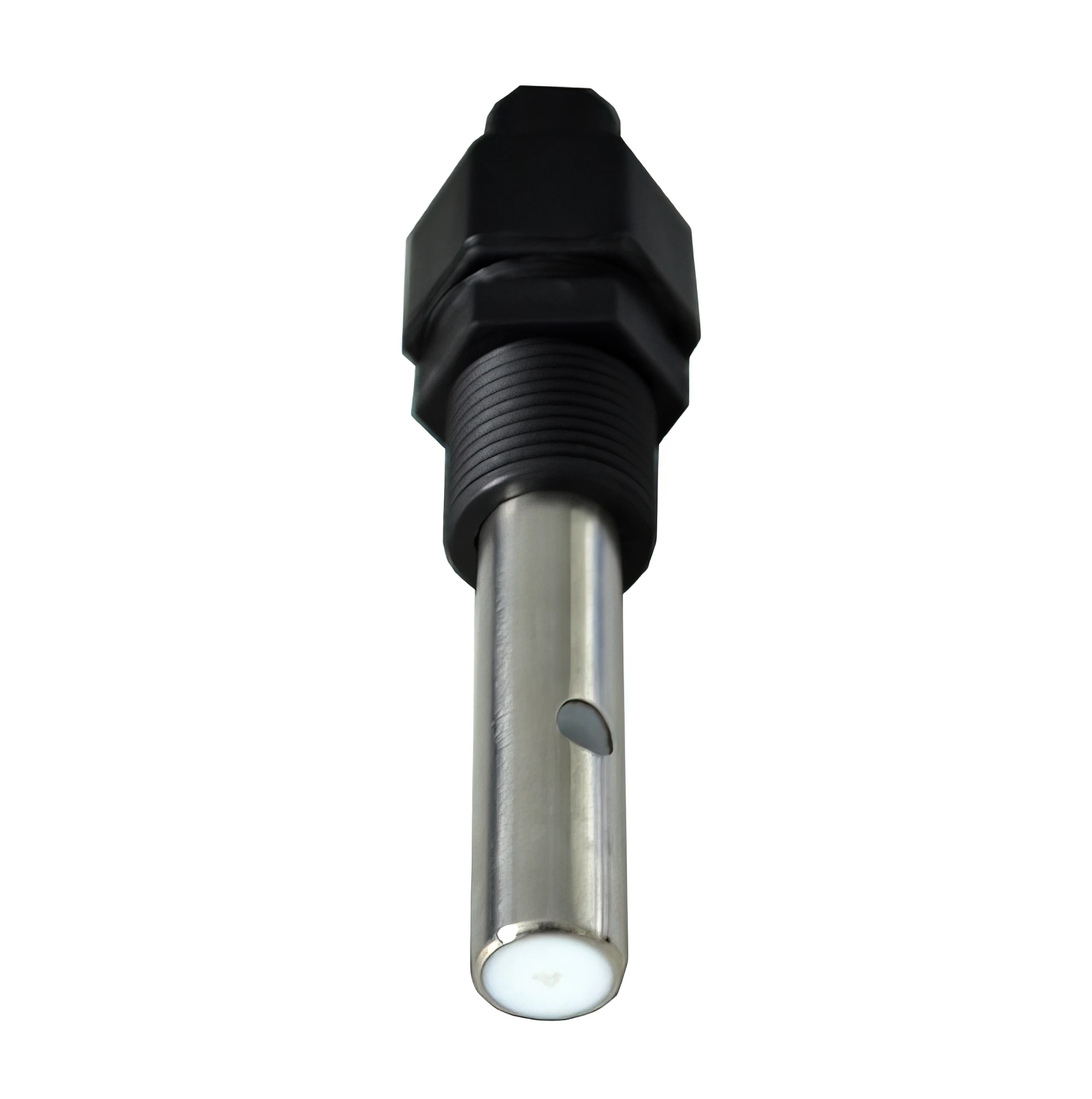

The Industrial Conductivity Series electrodes are purpose-built for precise conductivity measurements in pure water, ultra-pure water and water treatment applications.

These electrodes are especially suitable for use in thermal power plants and the water treatment industry, where durability and accuracy are critical. Featuring a robust double-cylinder structure made from titanium alloy, they naturally oxidize to form a chemically passive layer, enhancing resistance to various liquids (excluding hydrofluoric acid). Temperature compensation components are available in multiple options, including NTC2.252K, 2K, 10K, 20K, 30K, PT100, and PT1000, which can be specified based on user needs.

The K=10.0 or K=30 electrodes in this series incorporate a large-area platinum structure, providing excellent resistance to strong acids and alkalis as well as high anti-fouling capacity. These electrodes are well-suited for on-line conductivity measurement in demanding industries such as wastewater treatment and seawater purification.

Key Features:

• Double-cylinder structure with corrosion-resistant titanium alloy
• Naturally oxidized, chemically passive surface for improved durability
• Multiple temperature compensation options: NTC2.252K, 2K, 10K, 20K, 30K, PT100, PT1000
• Large-area platinum structure on K=10.0 and K=30 models for resistance to strong acids and alkalis
• Excellent anti-fouling capacity, ideal for specialized industrial applications

Ordering Notes:
1. All Sper Inline are sold separately - one of each is required for a complete system.

2. All Inline Water Quality Meters and Sensors ship direct from the factory. Please allow 10-15 business days for shipping and handling.

Specifications

Constant of electrode	0.1
Compressive strength	0.6 MPa
Measuring range	0-2000 uS/em
Connection	1/2 or 3/4 Thread Installation
Material	316L Titanium Alloy  and Platinum
Application	Water Treatment Industry
