Ensure consistent gloss levels and meet stringent quality standards with the 3nh NHG60 Series Gloss Meters.
The 3nh NHG60 & NHG60M Gloss Meters are meticulously engineered to meet the highest industry standards and deliver precise results across a wide range of materials.
NHG60 gloss meter can test material with gloss (0-1000Gu), and universally apply to paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc. for gloss measurement and gloss data transmission.
NHG60 Gloss Meter is indispensable for quality control, R&D and production processes across industries including automotive, furniture, electronics and building materials.
- NHG60 Gloss Meter features a 9x15mm aperture and a 60° measuring angle.
- NHG60M Micro Aperture Gloss Meter features a small 2x4mm aperture and 60° measuring angle.
Versatile & Compatible: This gloss meter is compatible with international standards including ASTM D523 and ASTM D2457, ensuring its suitability for diverse applications in various industries.
Comprehensive Measurement Capabilities: The NHG60 offers multiple measurement modes:
- Basic measurement mode for standard gloss assessment.
- Statistical measurement mode to analyze data across multiple samples.
- Continuous measurement mode for assessing uniformity over large areas.
- QC measurement mode (requires GQC6 software) for quality control applications.

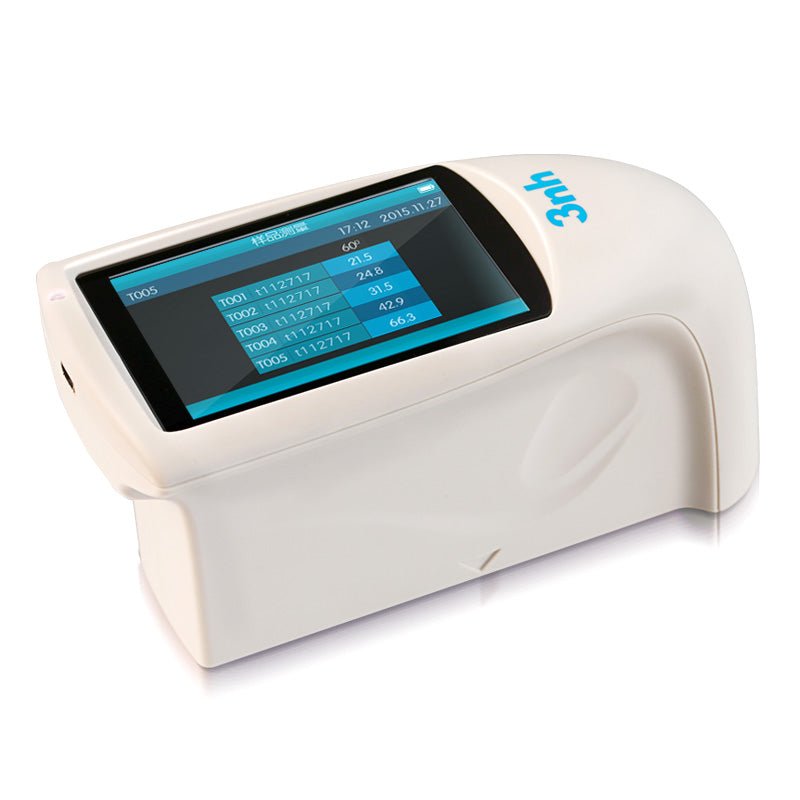

User-Friendly Interface: Equipped with a large touch screen, the NHG60 Gloss Meter provides intuitive operation and clear display of up to 5 sets of measurement data simultaneously, facilitating easy comparison and analysis.
Extended Functionality: Connect seamlessly to a PC for enhanced data management and additional analysis capabilities, expanding the meter's utility beyond basic measurements.
Flexible Data Handling: Input gloss values manually when necessary, allowing for flexibility in data entry and analysis.
Robust Storage Capacity: With a storage capacity of over 5000 data points, the NHG60 ensures ample room for storing measurements, ideal for extensive testing sessions without frequent data clearing.
Long-lasting Performance: Powered by a built-in lithium ion rechargeable battery, the gloss meter offers extended operational uptime and reliability in various work environments.
Wide Application Range: Suitable for measuring gloss on a wide array of surfaces including paint, ink, coatings, wood products, stone, ceramics, plastics, paper, and more, the NHG60 Gloss Meter is indispensable across multiple industries where gloss measurement is critical.
Elegant and Functional Design: Combining aesthetic appeal with practicality, the NHG60 boasts a sleek design and a user-friendly interface that enhances communication between operators and the device.
Specifications
| Model | NHG60 | NHG60M |
| Measuring Angle | 60° | 60° |
| Complies with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457 | Complies with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457 | |
| Measuring Area (mm) | 9x15 | 2x4 |
| Measurement Range | 0~1000GU | 0~1000GU |
| Division Value | 0.1GU | 0.1GU |
| Measurement Range | 0-10GU 10-100GU 100-1000GU | 0-10GU 10-100GU 100-1000GU |
| Repeatability | ± 0.1GU ± 0.2GU ± 0.2%GU | ± 0.1GU ± 0.2GU ± 0.2%GU |
| Reproducibility | ± 0.2GU ± 0.5GU ± 0.5%GU | ± 0.2GU ± 0.5GU ± 0.5%GU |
| Measurement Standard | Conform with JJG696 first class gloss meter working requirement | Conform with JJG696 first class gloss meter working requirement |
| Chromaticity Corresponding | Corresponding with CIE 1931 (2°) under CIE C light source | Corresponding with CIE 1931 (2°) under CIE C light source |
| Errors | ±1.2, ± 1.2% | ±1.5, ± 1.5% |
| Measuring Time | 0.5s | 0.5s |
| Dimension | L*W*H: 160mm*75mm*90mm | L*W*H: 160mm*75mm*90mm |
| Weight | 350g | 350g |
| Language | English/Chinese | English/Chinese |
| Battery | 3.7V, 3200mAh Li-ion Battery, >10000 times (within 8 hours) | 3.7V, 3200mAh Li-ion Battery, >10000 times (within 8 hours) |
| Viewing Screen | TFT 3.5 inch, capacitive touch screen | TFT 3.5 inch, capacitive touch screen |
| Interface | USB/RS-232 | USB/RS-232 |
| Data Save | Basic mode: 1000, Statistical Mode: 5000, Continuous mode: 5000 | Basic mode: 1000, Statistical Mode: 5000, Continuous mode: 5000 |
| Software | GQC6 Quality Control Software with QC report printing functions and more extended functions. | GQC6 Quality Control Software with QC report printing functions and more extended functions. |
| Operation Temperature | 0~40℃（32~104°F） | 0~40℃（32~104°F） |
| Storage Temperature | -20~50℃（-4~122°F） | -20~50℃（-4~122°F） |
| Humidity | <85% relative humidity, no condensation | <85% relative humidity, no condensation |

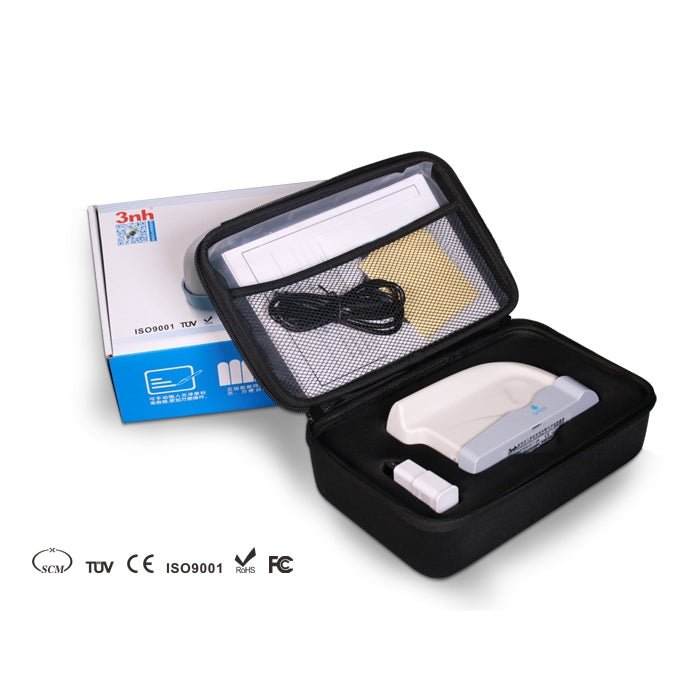

| Standard Accessories | Power Adapter, USB cable, User Manual, CD (Including QC software), Calibration Plate | Power Adapter, USB cable, User Manual, CD (Including QC software), Calibration Plate |
| Optional Accessories | Miniature Printer | Miniature Printer |
| Note | The specifications are subject to change without notice. | The specifications are subject to change without notice. |
