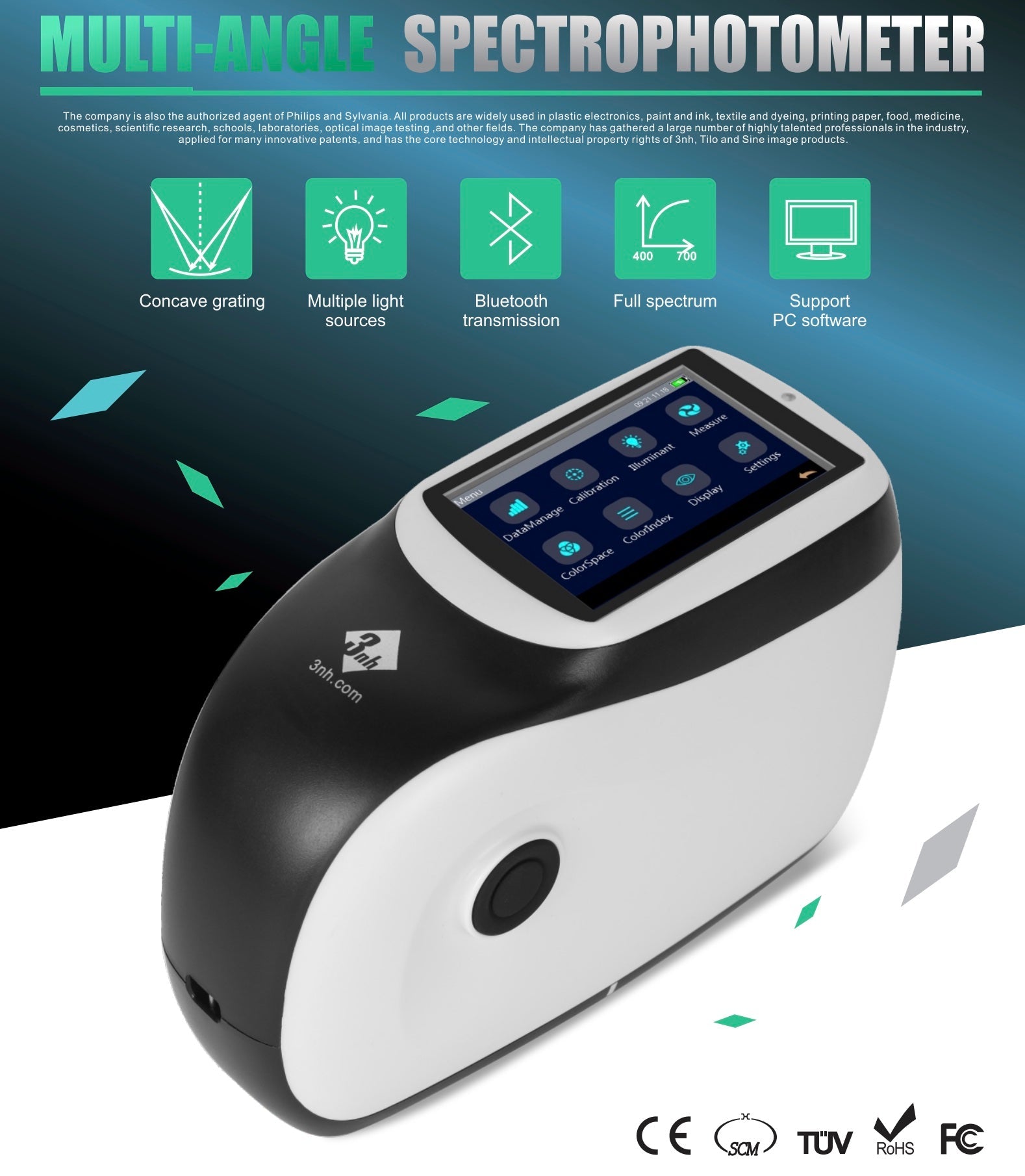

MS3006 Multi Angle Spectrophotometer - Precise Color Measurement for Paint, Textiles & Cosmetics | Lab Quality Instrument for Industrial & Research Use
Sku: 89899910 in stock
$5565.8
$10119.65
45% Off
Delivery & Return: Free shipping on all orders over $50
Estimated Delivery: 10-15 days international
18 people viewing this product right now!
Guranteed safe checkout
Description
The MS3006 Multi-Angle Spectrophotometer is a precision instrument designed for accurate and consistent color measurement, especially for metallic, pearlescent and other complex special-effect finishes.
With its industrial-grade MCU and six measurement angles, it ensures high accuracy in measuring color variations under different viewing conditions. The advanced optical system guarantees repeatability in measuring key parameters such as Sparkle Grade (SG), Diffuse Coarseness (DC), and Color Variation (CV).

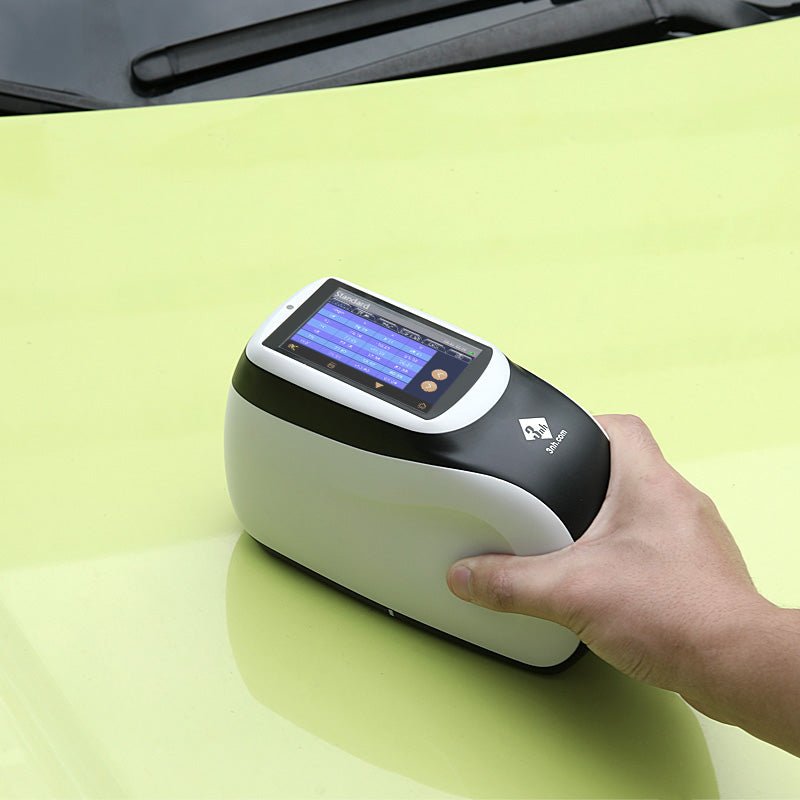

The MS3006 is ideal for analyzing surface paints affected by different viewing angles, providing precise results even on curved surfaces. This versatile device not only measures multi-angle color differences but also characterizes special finishes with outstanding accuracy and stability. Its user-friendly interface and robust performance make it an indispensable tool for quality control in industries requiring high standards of color consistency and special-effect finish measurement.
Key Features:

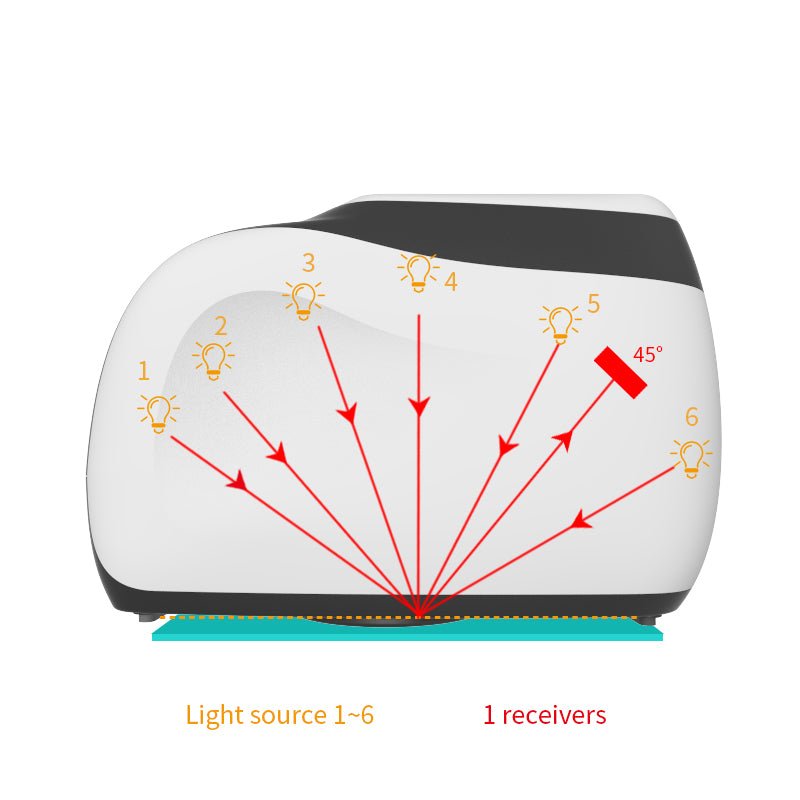

- Multi-angle measurement: Simultaneously measures from six angles with six illumination sources and one receiver.

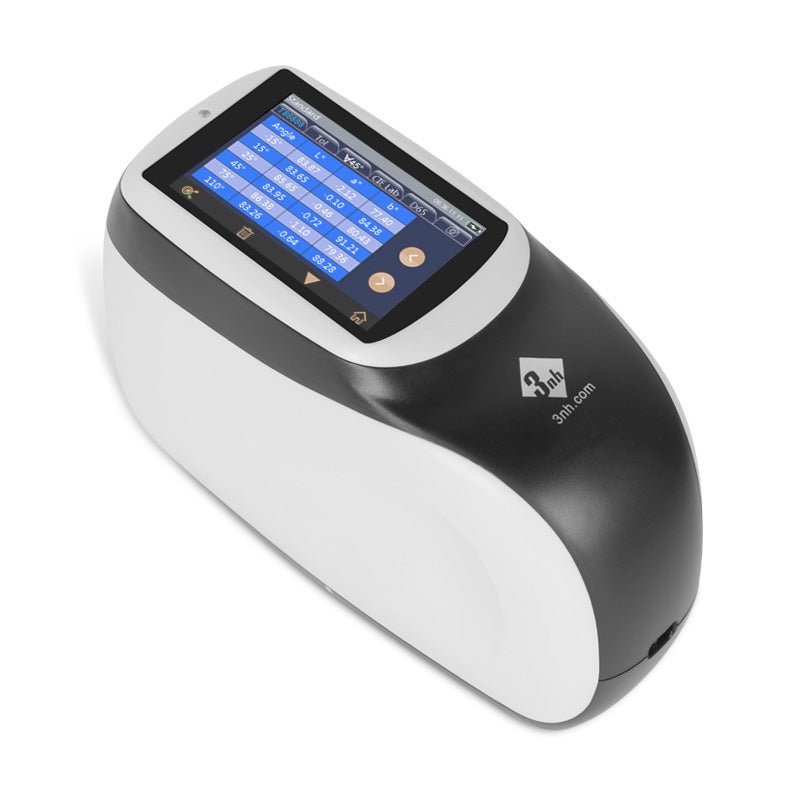

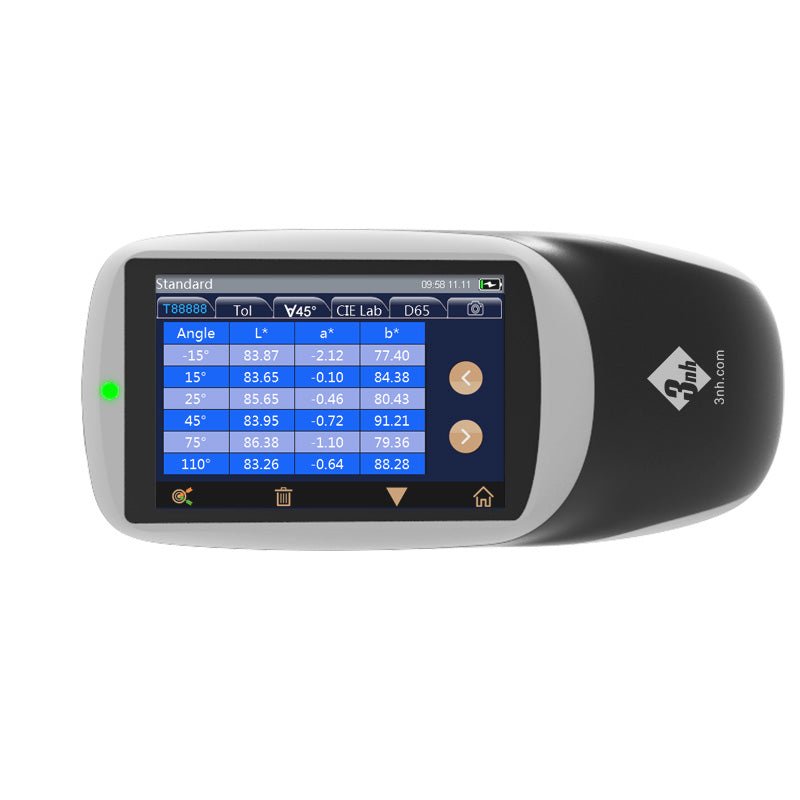

- Intuitive display: Touchscreen shows comprehensive data for all measurement angles.
- Effect measurement discrimination: Accurately distinguishes Sparkle Grade (SG), Diffuse Coarseness (DC), and Color Variation (CV) for efficient quality inspection.
- 256-element double-array CMOS sensor: Ensures high speed, accuracy, stability, and consistency.
- Full spectrum LED light source with blue enhancement: Provides a broad spectral range for precise measurements and low maintenance costs.
- Concave grating technology: Delivers higher resolution for more accurate color measurement.
- Durable professional-grade white board: Offers stable optical performance with a high-hardness surface.

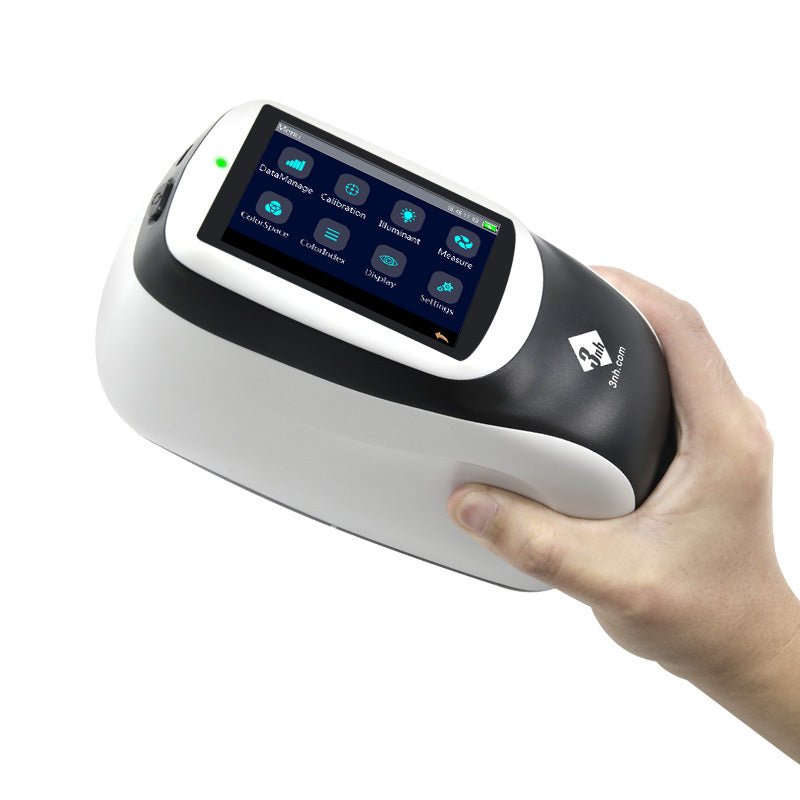

- Ergonomic design: Comfortable to use, with a smooth surface and well-placed controls for various hand positions.

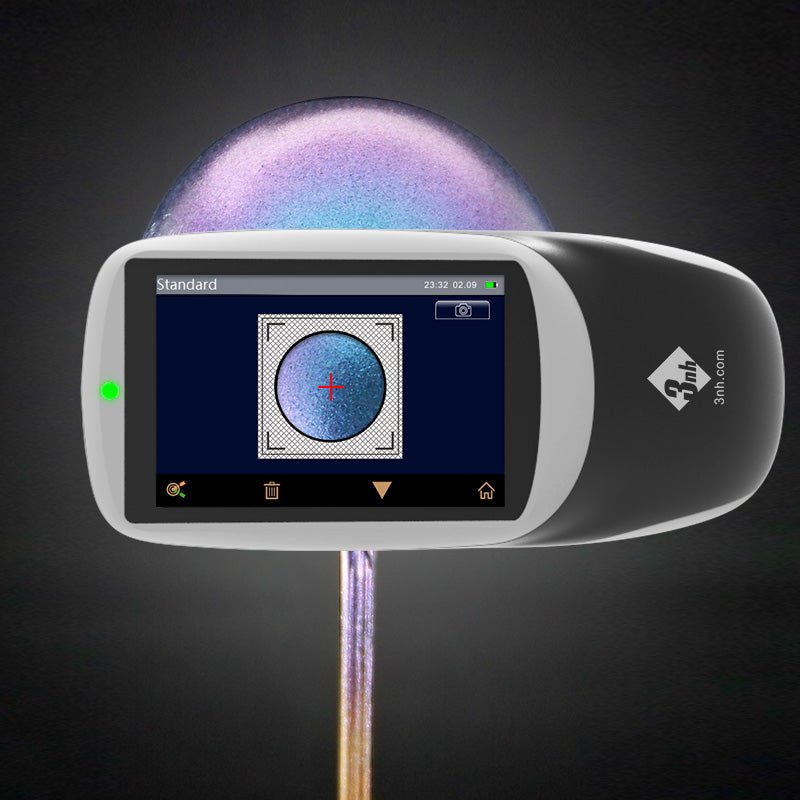

- Color camera preview: Enables precise positioning of the measured area for improved accuracy.
- Multiple color spaces and light sources: Supports a variety of color spaces (CIE LAB, XYZ, Yxy) and light sources (D65, A, C, D50, etc.).
- Easy data analysis: Displays detailed measurement data, including chromaticity values, color differences, pass/fail results, and more for enhanced work efficiency.
Note: This item ships direct from the manufacturer. Please allow an additional 3-5 business days for order processing and shipment on all 3nh instruments.
Specifications
| Model | MS3006 |
| Measurement Geometry | 6 measurement angles (6 illumination sources, 1 receivers) |
| Measure Angle | 45° Receiver： 45as-15°, 45as15°, 45as25°, 45as45°, 45as75°, 45as110° Conform to the standards: ASTM D 2244, E 308, E 1164, E 2194, E2539, DIN 5033, 5036, 6174, 6175-1,6175-2; ISO 7724, 11664-4 SAE J 1545 |
| Application | Provide accurate and consistent color measurement for metallic, pearlescent and other complex special effect color products |
| Light Source | Full spectrum LED light source with blue enhancement |
| Lamp Life | 5 years, 3 million times measurements |
| Spectrophotometric Mode | Concave Grating |
| Sensor | 256 Image Element Double Array CMOS Image Sensor |
| Wavelength Range | 400nm-700nm |
| Wavelength Interval | 10nm |
| Measurement Range | 0~600% |
| Semiband Width | 10nm |
| Measuring Aperture | Illumination size Φ23mm / Measuring spot 9X12mm (Customized: Illumination size Φ10mm / Measuring spot 6X8mm) |
| Color Space | CIE LAB, XYZ, Yxy, LCh, βxy, DIN Lab99 |
| Color Difference Formula | ΔE*ab,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE DIN6175 |
| Other Colorimetric Index | Flop Index, Int-Em |
| Observer Angle | 2°/10° |
| Illuminant | D65, A, C, D50, D55, D75, F1, F2(CWF), F3, F4, F5, F6, F7(DLF), F8, F9, F10(TPL5), F11(TL84), F12(TL83/U30) |
| Display | Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset, Color simulation, Sample effect value, Effect difference value |
| Measuring Time | Approx. 1 second for one angle Approx. 6 seconds for all angles |
| Repeatability | Spectral reflectance: Standard deviation within 0.08% Chromaticity value: ΔE*ab 0.03 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) |
| Reproducibility | ΔE*<0.10,avg on the gray tile of BCRA tile set ΔE*<0.25,avg on the color BCRA tile set |
| Inter-Instrument Error | 0.2ΔE*00(avg on reference Series II BCRA tile set) |
| Effect Parameters | Sparkle Grade(SG),Diffuse coarseness(DC) and Color Variation(CV) |
| Effect Measurement | 6 angles Sparkle Grade(SG),Color Variation(CV):15as-45°,15as-30°,15as-15°,15as15°,15as45°,15as80° 15d Diffuse coarseness(DC) |
| Effect Repeatability | Sparkle Grade(SG) Short-term repeatability: 0.12% (10 times standard deviations) (When a color plate is measured 10 times at 10 second intervals after white calibration) Diffuse coarseness(DC) Short-term repeatability:e0.09% (10 times standard deviations) (When a color plate is measured 10 times at 10 second intervals after white calibration) |
| Effect Reproducibility | Sparkle Grade(SG) Reproducibility: 1.9% (10 times standard deviations) (avg on reference Series II BCRA tile set) Diffuse coarseness(DC) Reproducibility: 1.4% (10 times standard deviations)(avg on reference Series II BCRA tile set) |
| Trigger mode | Pressure sensing trigger, button trigger, software trigger |
| Measuring Mode | Single measurement, average measurement (1-99), continuous measurement (1-99) |
| Locating Mode | Color camera preview |
| Dimension | L*W*H=195X83X128mm |
| Weight | About 1Kg |
| Power | lithium-ion battery, 3.7V,5000mAh, Continuous test 6000 times within 8 hours of full charge |
| Display | 3.5-inch TFT color LCD, Capacitive Touch Screen |
| Interface | USB, Bluetooth 5.0 |
| Data Storage | 1000 pcs Standards, 4000 pcs Samples |
| Language | Simplified Chinese, Traditional Chinese, English |
| Operating Environment | 10℃ to 50℃, humidity does not exceed 85%, no condensation |
| Storage Environment | -20℃ to 50℃, humidity does not exceed 85%, no condensation |
| Calibration | Built-in white board parameters, external white board, black cavity |
| Calibration Interval | 4 hours,8 hours,24 hours,Startup calibration |
| Standard accessories | Power Adapter, USB Cable, User Guide,PC Software(download from the official website), Calibration Board, black light trap,Protective cap, wristband |
| Optional Accessory | Micro-printer |
| Notes | Technical parameters are for reference only, subject to actual sales products. |
