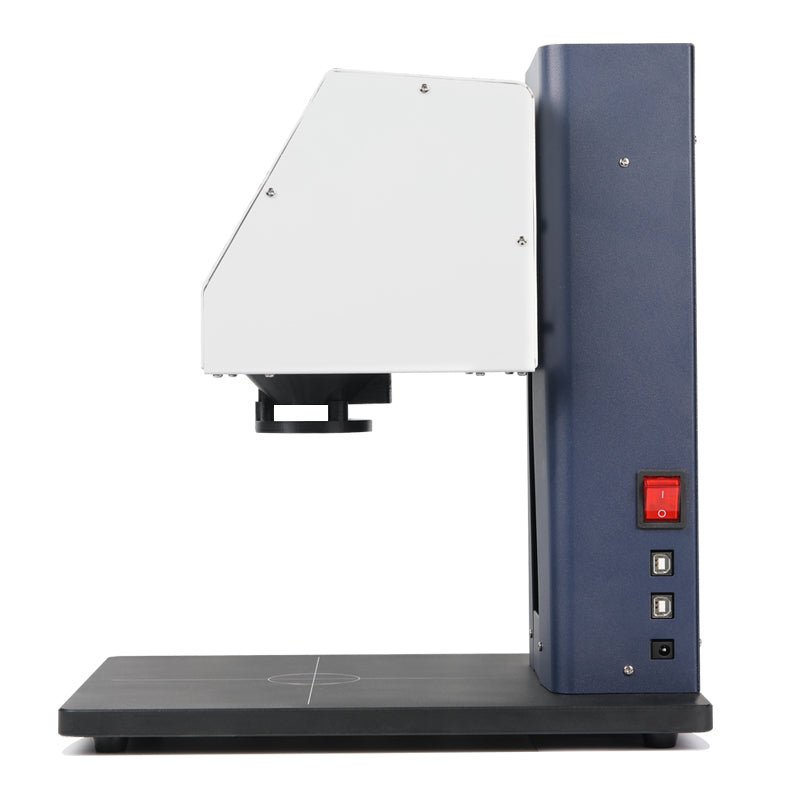

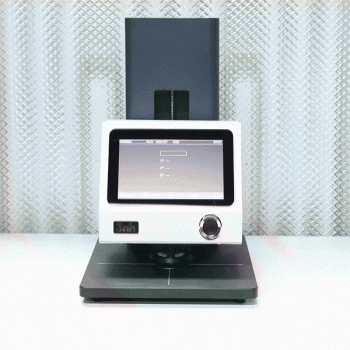

The 3nh YL4560 Non-Contact Benchtop Spectrophotometer is a cutting-edge tool designed for precise and efficient color measurement and analysis.
This advanced instrument is perfect for a variety of industries ranging from automotive, food and cosmetics to textiles, paints and plastics, aiming to ensure the highest standards of color quality and consistency. With its innovative features and user-friendly design, the YL4560 is an indispensable asset for professionals who require accurate color analysis without the complications of direct sample contact.
Key Features:
- Non-Contact Measurement: Utilizes state-of-the-art technology to measure colors without physical contact, making it ideal for delicate, wet, or uneven samples, thus preserving the integrity of both the sample and the results.
- Dual Optical System: Features both d/8° and diffuse/8° geometry, catering to diverse needs from color matching to quality control, ensuring comprehensive color analysis.
- High-Resolution Camera: Simplifies sample positioning with its advanced imaging capabilities, allowing for precise targeting of measurement areas, especially on complex patterns or detailed surfaces.
- Intuitive User Interface: Offers a user-friendly experience with easy navigation and powerful analysis tools, enabling users to efficiently set up measurements and analyze data.
- Versatile Connectivity Options: Supports USB and Wi-Fi connections, facilitating seamless integration into existing workflows and easy data management for a streamlined process.
The YL4560 stands out for its precision, versatility and ease of use. It is engineered to deliver detailed insights into color characteristics, including gloss and texture, crucial for a comprehensive evaluation. Whether it's for research and development, quality control, or color matching, the 3nh YL4560 Non-Contact Benchtop Spectrophotometer is your solution for achieving flawless color accuracy and consistency across various applications.
Note: This item ships direct from the manufacturer. Please allow an additional 3-5 business days for order processing and shipment on all 3nh instruments.
Specifications
| Model | YL4560 |
| Optical Geometry | 45/0 method (45 ring-shaped illumination, vertical viewing); Conforms to CIE No.15,GB/T 3978,GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7, GB 2893,GB/T 18833 |
| Features | 45/0 non-contact benchtop spectrophotometer can achieve precise non- contact measurement between the measuring probe and the sample like liquids, sauces, powders, etc. It can be applied for accurate color analysis and transmission In laboratories and R & D industries; It can also be used for accurate color measurement and quality control of automated production lines; It is widely used in cosmetics, fruits and vegetables, food hygiene, plastic electronics, paint and ink, printing, ceramics and other industries, and also for fluorescence sample measurement. |
| Light Source | Full spectrum LED light,UV light |
| Spectrophotometric Mode | Concave Grating |
| Sensor | 256 Image Element Double Array CMOS Image Sensor |
| Wavelength Range | 400~700nm/10nm output |
| Reflectance Range | 0~200% |
| Measuring Aperture | Φ20mm(can be customized <20mm) |
| Non-contact Distance | 7.5mm |
| Sample Height | 0~150mm |
| Distance Adjustment Method | Manual adjustment and automatic adjustment (test height can be stored) |
| Measuring mode | Sample mode/QC Mode/Continuous statistics mode |
| Locating Method | Camera Locating |
| Color Space | CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB |
| Color Difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,ΔE(Hunter) |
| Other Colorimetric Index | WI (ASTM E313,CIE/ISO,AATCC,Hunter),YI(ASTM D1925,ASTM 313),TI(ASTM E313,CIE/ISO), Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity |
| Observer Angle | 2°/10° |
| Illuminant | D65, A, C, D50, D55, D75, F1, F2 (CWF), F3, F4, F5, F6, F7 (DLF), F8, F9, F10 (TPL5), F11 (TL84), F12 (TL83/U30) |
| Displayed Data | Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, Chromaticity Graph, Color Simulation, PASS/FAIL Result, Color Offset |
| Measuring Time | About 1.5s |
| Data Storage | Sample mode + QC mode: 40,000; Continuous statistics mode: 10,000 |
| Repeatability | Spectral reflectance: Standard deviation within 0.08% Chromaticity value: Within ΔE*ab 0.03 (when a white calibration plate is measured 30 times at 5 second intervals after white calibration) |
| Inter-instrument Error | Within ΔE*ab 0.2（Average for 12 BCRA Series II color tiles) |
| Measurement Mode | Single Measurement, Average Measurement(2 ~ 99 times) |
| Dimension | 330*250*370mm |
| Weight | About 10 kg |
| Power Supply | DC 24V, 3A Power Adapter |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Display Screen | 7" TFT Capacitive Screen-touch Display |
| Data Port | USB/RS-232,Bluetooth®4.0 |
| Language | Simplified Chinese,Traditional Chinese,English |
| Working Environment | Temperature: 0~40℃; Humidity: 0~85% (No Condensation); Altitude < 2000m |
| Storage Environment | Temperature: -20~50℃; Humidity: 0~85% (No Condensation) |
| Standard Accessory | Power Adapter, User Manual, USB cable, Standard Calibration Board, Black Calibration Cavity, |
| Notes | The specifications are subject to change without notice. |
