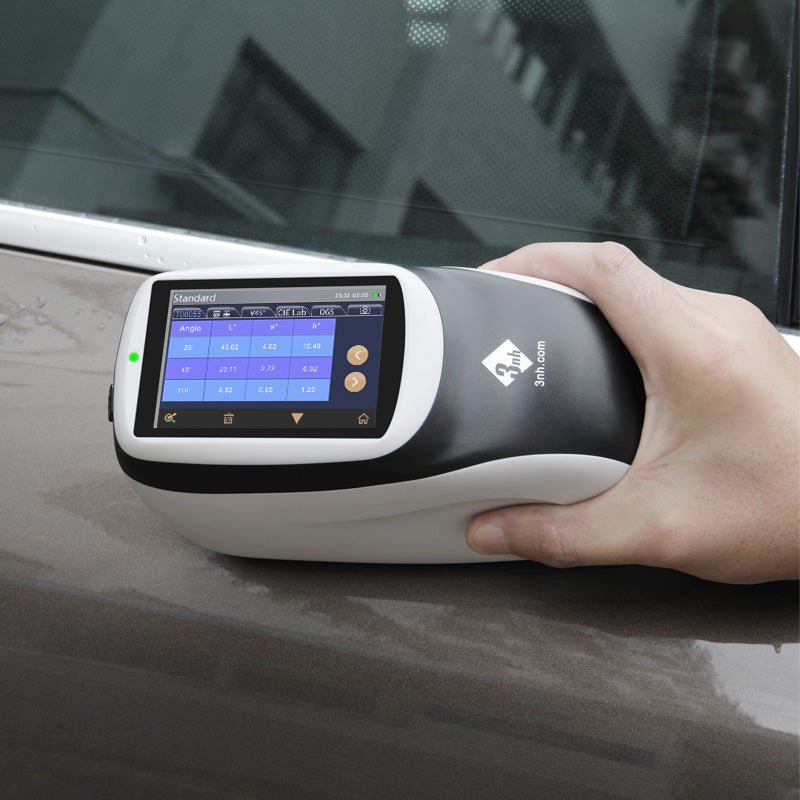

Introducing the 3NH MS3003 Multi-Angle Handheld Spectrophotometer – a revolutionary instrument that sets a new benchmark for color measurement in industries where appearance and texture matter.
Engineered with precision and versatility in mind, this spectrophotometer is an indispensable tool for applications in automotive coatings, cosmetics, and other fields where achieving consistent and accurate color across different viewing angles is critical.
Multi-Angle Measurement: The MS3003 goes beyond conventional spectrophotometers by offering multi-angle measurement capabilities. With up to 16 angles of measurement, it captures the true essence of color by assessing how it appears from various perspectives. This is particularly valuable for industries where surface texture and appearance are vital.
Advanced Color Analysis: Equipped with advanced color analysis algorithms, the MS3003 ensures that color measurements are not only precise but also reflective of real-world conditions. Professionals can confidently make color-critical decisions, considering how colors may shift under different lighting and viewing scenarios.
Large Color Touchscreen: The spectrophotometer features a large color touchscreen for easy navigation and real-time data visualization. Users can effortlessly access measurement data, customize settings, and analyze color trends, enhancing overall usability.
Durable Construction: Built to withstand the demands of industrial environments, the MS3003 boasts a durable construction. Its robust design ensures longevity and reliability, making it an ideal choice for professionals who require a spectrophotometer that can endure the rigors of daily use.
Versatile Applications: From automotive coatings to consumer electronics, the MS3003 caters to a diverse range of applications. Its ability to capture color data from multiple angles makes it an indispensable tool for industries where achieving consistent appearance across various viewing conditions is paramount.
Precision Unleashed:
The 3NH MS3003 Multi-Angle Spectrophotometer redefines color measurement by introducing a new dimension – capturing color from multiple angles. With its advanced features, durable design, and versatile applications, this spectrophotometer empowers professionals to achieve unparalleled precision in color assessment. Elevate your quality control processes and ensure a flawless appearance in your products with the cutting-edge capabilities of the 3NH MS3003.
Note: This item ships direct from the manufacturer. Please allow an additional 3-5 business days for order processing and shipment on all 3nh instruments.
Specifications
| Model | MS3003 |

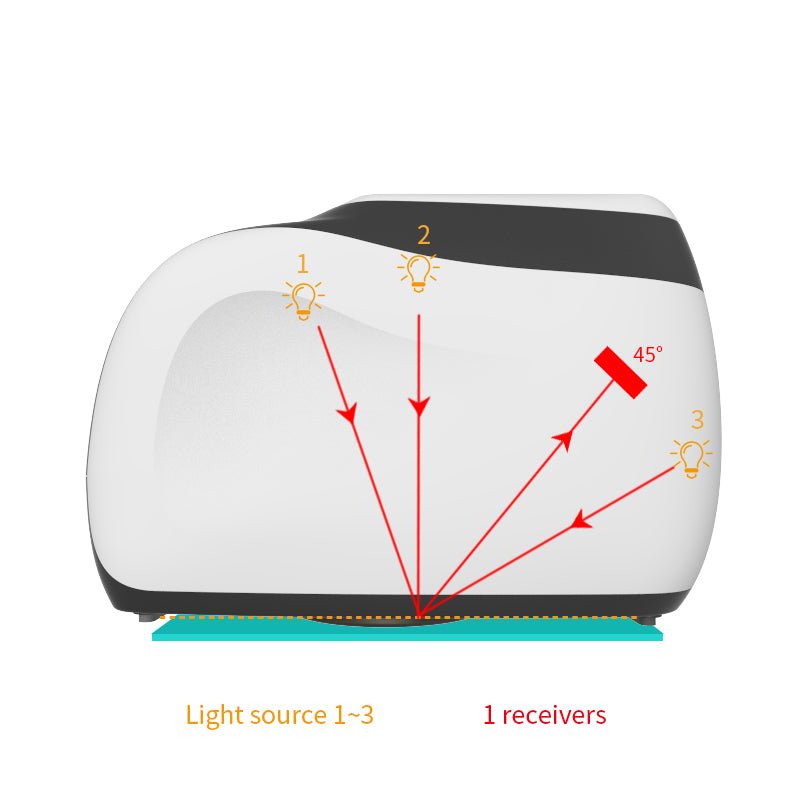

| Measurement Geometry | 3 measurement angles (3 illumination sources, 1 receivers) |
| Measure Angle | 45° Receiver： 45as25°,45as45°,45as110° Conform to the standards: ASTM D 2244,E 308,E 1164,E 2194, E2539,DIN 5033,5036,6174,6175-1,6175-2;ISO 7724, 11664-4 SAE J 1545 |
| Application | Provide accurate and consistent color measurement for metallic, pearlescent and other complex special effect color products |
| Light Source | Full spectrum LED light source with blue enhancement |
| Lamp Life | 5 years, 3 million times measurements |
| Spectrophotometric Mode | Concave Grating |
| Sensor | 256 Image Element Double Array CMOS Image Sensor |
| Wavelength Range | 400nm-700nm |
| Wavelength Interval | 10nm |
| Measurement Range | 0~600% |
| Semiband Width | 10nm |
| Measuring Aperture | Illumination size Φ23mm / Measuring spot 9X12mm |
| Color Space | CIE LAB,XYZ,Yxy,LCh,βxy,DIN Lab99 |
| Color Difference Formula | ΔE*ab,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE DIN6175 |
| Other Colorimetric Index | Flop Index |
| Observer Angle | 2°/10° |
| Illuminant | D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30) |
| Display | Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset |
| Measuring Time | Approx. 1 second for one angle Approx. 3 seconds for all angles |
| Repeatability | Spectral reflectance: Standard deviation within 0.08% Chromaticity value: ΔE*ab 0.04 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) |
| Reproducibility | ΔE*<0.10,avg on the gray tile of BCRA tile set ΔE*<0.25,avg on the color BCRA tile set |
| Inter-instrument Error | 0.2ΔE*00(avg on reference Series II BCRA tile set) |
| Effect Parameters | / |
| Effect Measurement | / |
| Effect Repeatability | / |
| Effect Reproducibility | / |
| Trigger mode | Pressure sensing trigger, button trigger, software trigger |
| Measuring Mode | Single measurement, average measurement (1-99), continuous measurement (1-99) |
| Locating Mode | Color camera preview |
| Dimension | 7.7x83x5 inches (195x83x128mm) |
| Weight | 35 oz. (1Kg) |
| Power | Lithium-ion battery, 3.7V,3200mAh, Continuous test 6000 times within 8 hours of full charge |

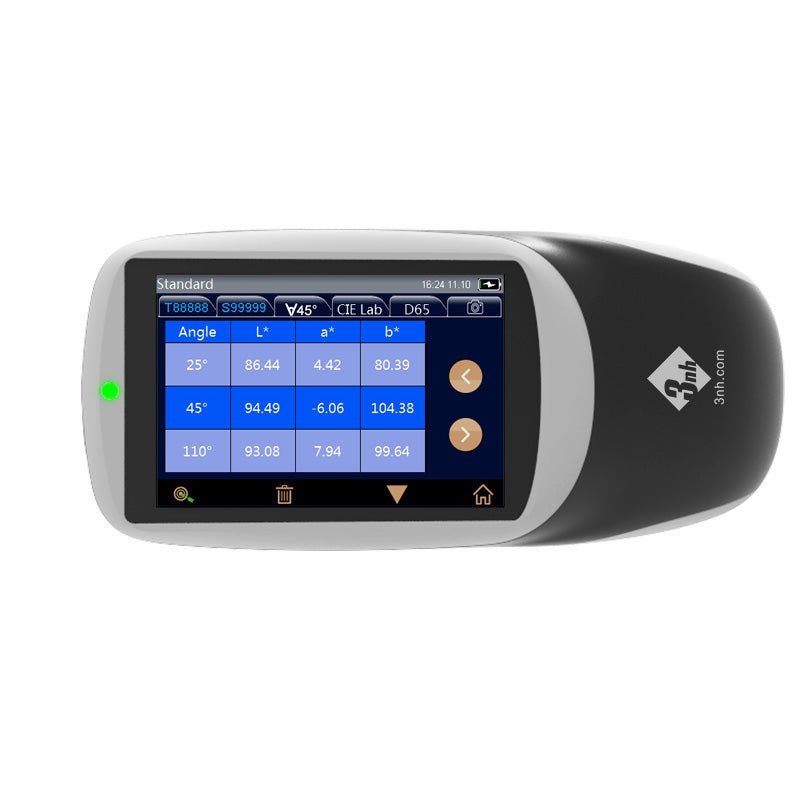

| Display | 3.5-inch TFT color LCD, Capacitive Touch Screen |
| Interface | USB, Bluetooth |
| Data Storage | 1000 pcs Standards, 4000 pcs Samples |
| Language | Simplified Chinese, Traditional Chinese, English |
| Operating Environment | 10℃ to 50℃, humidity does not exceed 85%, no condensation |
| Storage Environment | -20℃ to 50℃, humidity does not exceed 85%, no condensation |

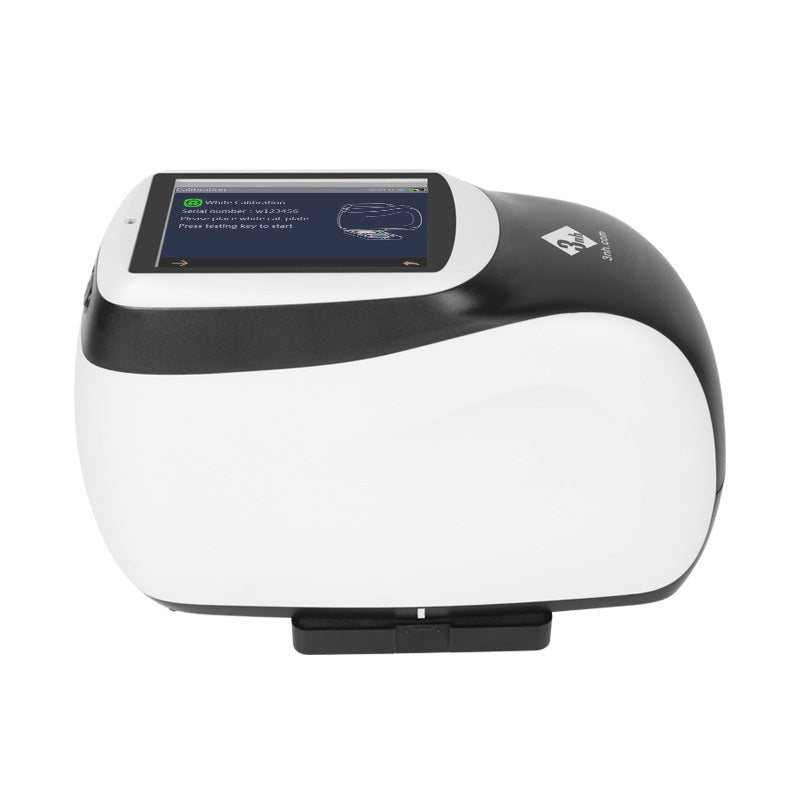

| Calibration | Built-in white board parameters, external white board, black light trap |
| Calibration Interval | 4 hours,8 hours,24 hours,Startup calibration |

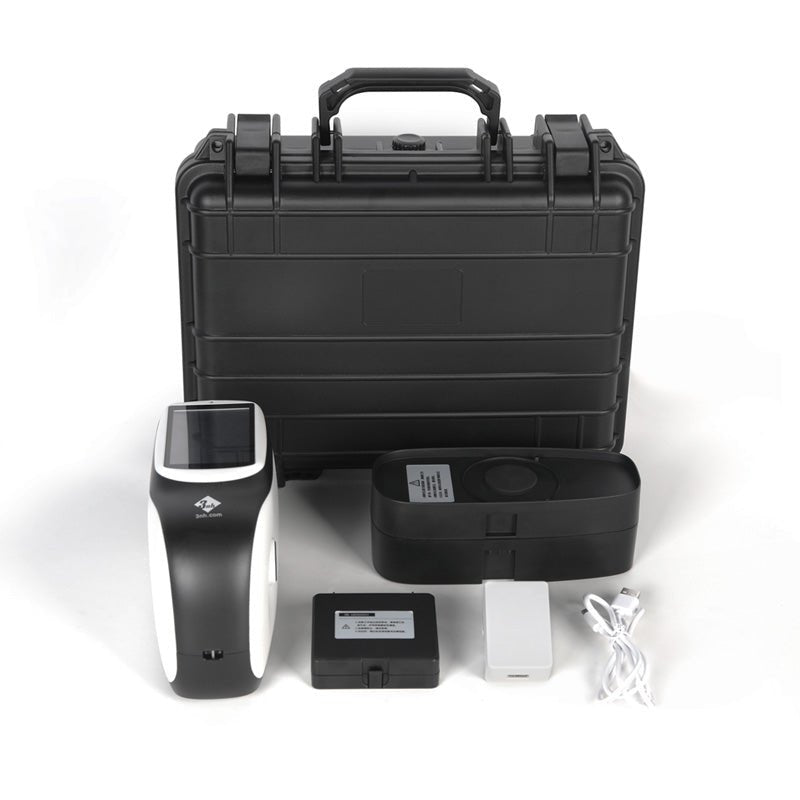

| Standard accessories | Power Adapter, USB Cable, User Guide,PC Software(download from the official website), Calibration Board, black light trap,Protective cap, wristband |
| Optional Accessory | Micro-printer |
| Notes | Technical parameters are for reference only, subject to actual sales products. |
