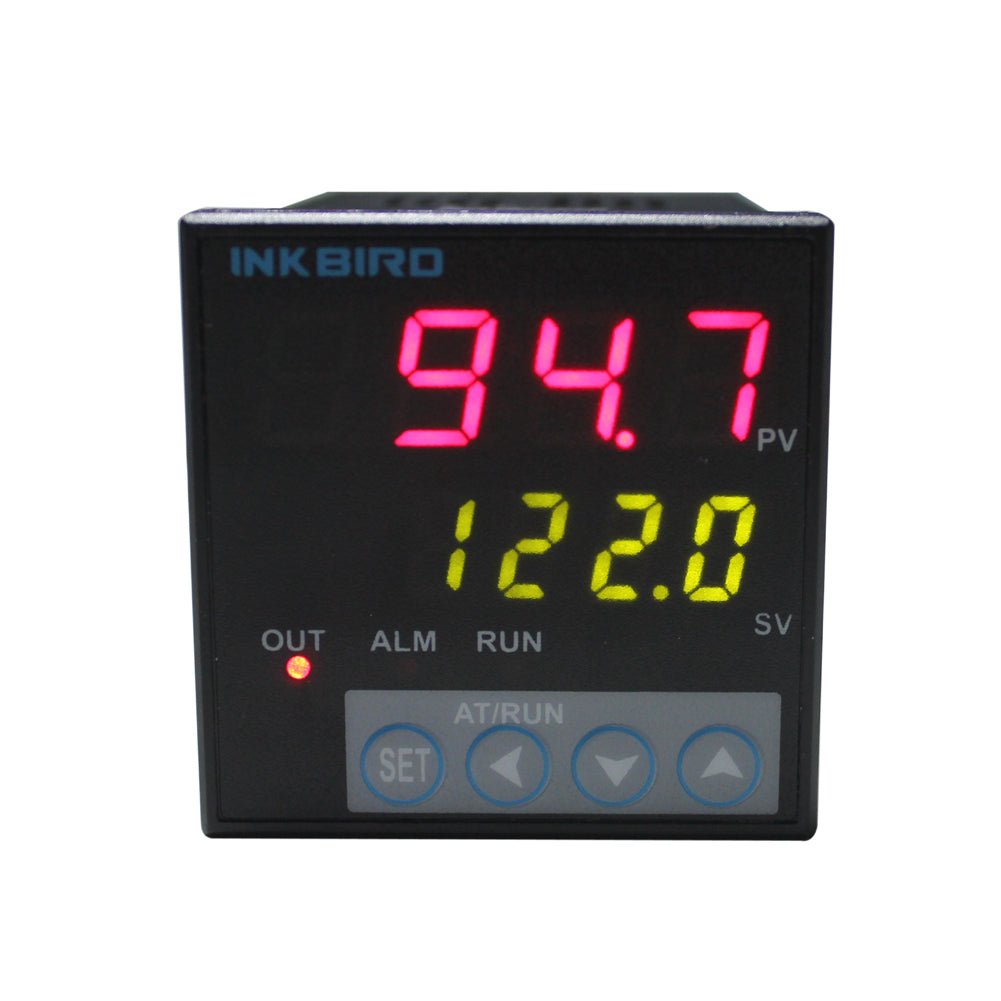

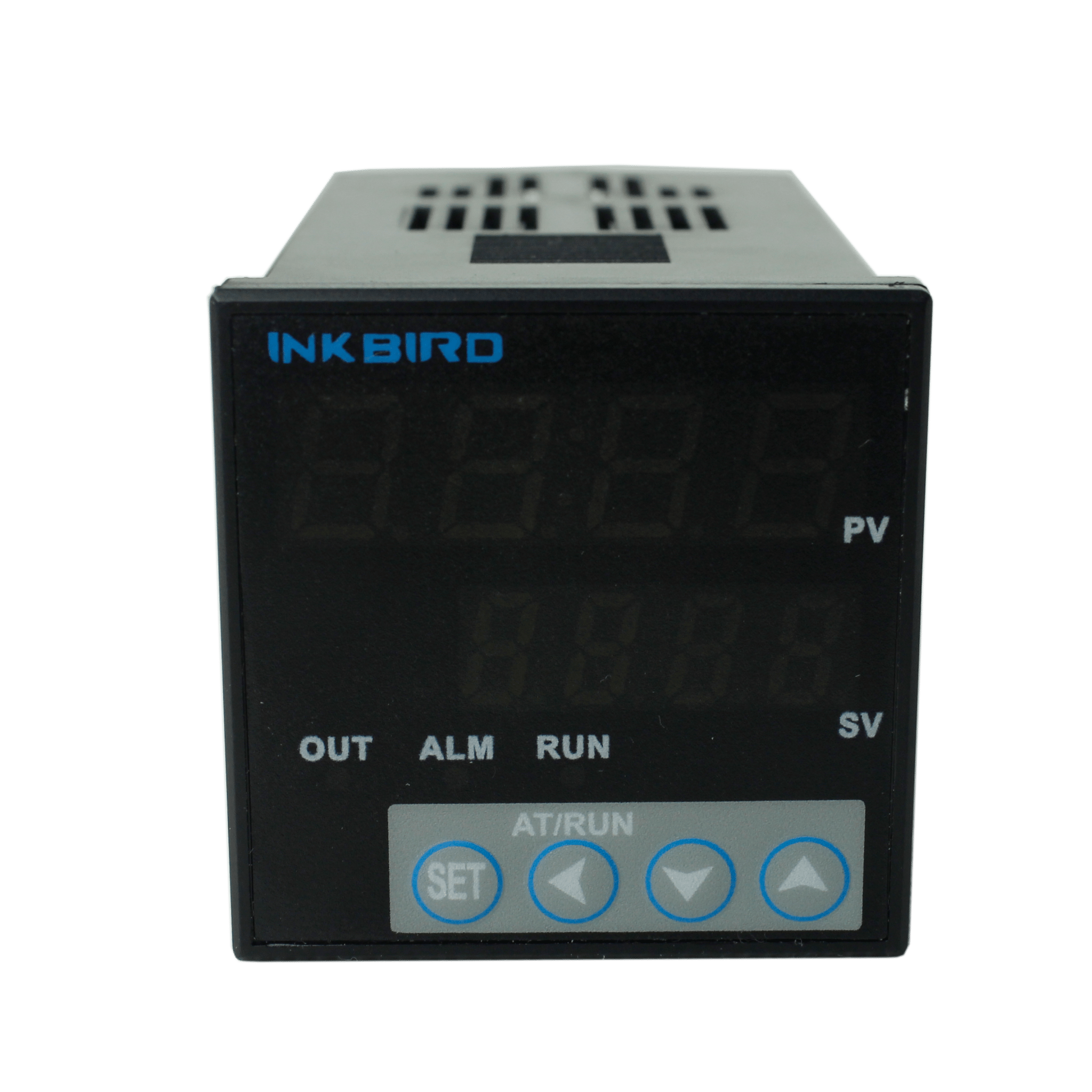

Multiple Thermocouples and Resistance Sensors: Support Multiple Thermocouples and Resistance Sensors (K, S, Wre, T, E, J, B, N, CU50, PT100) Wide Controlling Range: -50～1300℃ (K sensor) Accuracy of Displaying and Controlling: High Accuracy of Displaying and Controlling 0.1℃, Accuracy of Measurement: ±0.2%FS
PID and ON/OFF Control Mode, High Standard Self-adjusting Function Multiple Outputs and Alarm Modes Build-in Adjustable Digital Filter Reduce Interference Self-adjusting Function and Intelligent Control: The Self-adjusting Function and Intelligent Control of the Instrument Ensure the Long-term Stability
High Luminance, 0.39” height LED display, Anti-glare panel Built-in Switch Power Supply, Wide Voltage Range and Low-power Consumption Support reading with Centigrade or Fahrenheit unit
Available models:

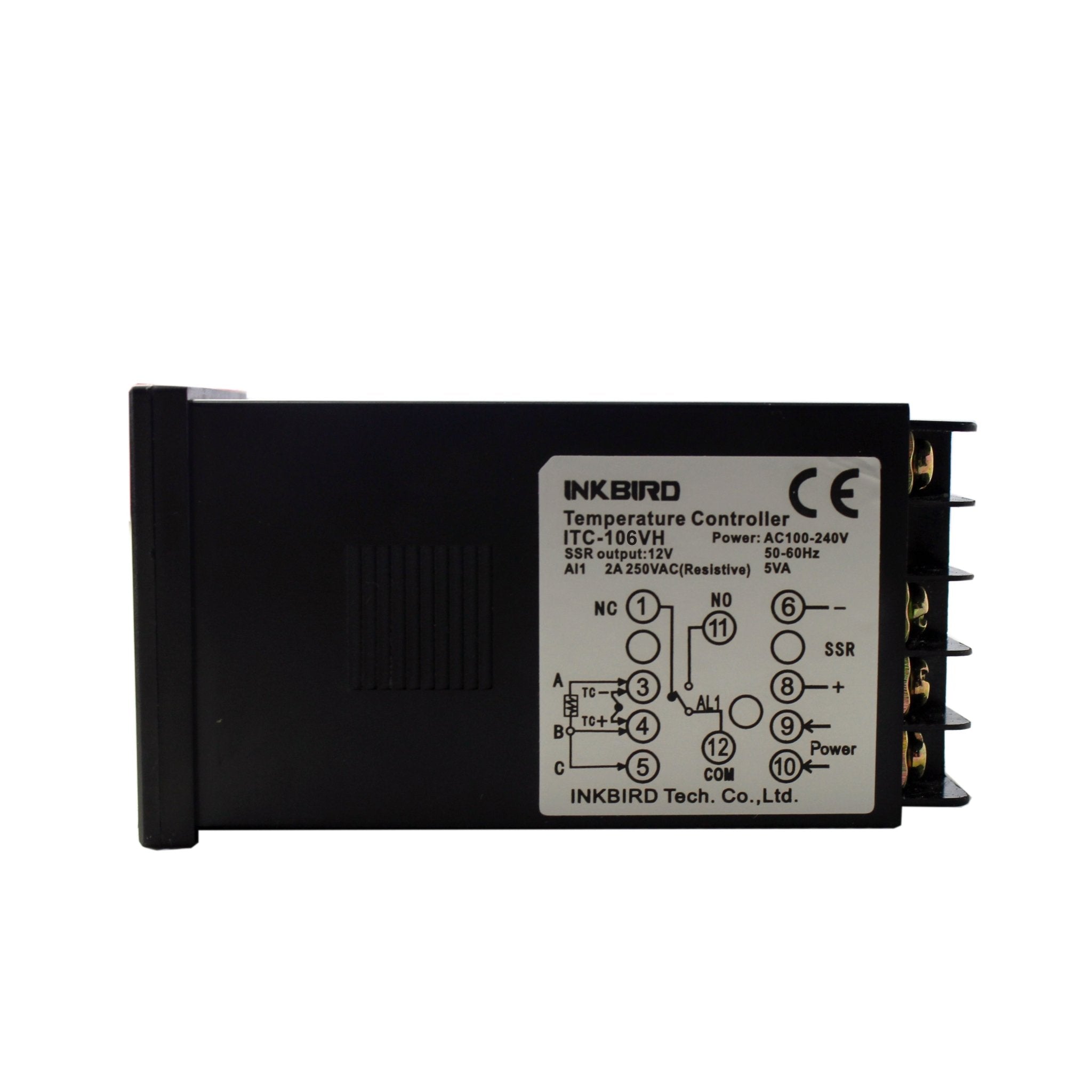

- ITC-106VH --- One SSR output + One Relay Alarm Output; AC100-240V.
- ITC-106RH --- One Relay output + One Relay Alarm Output; AC100-240V.
Main Features:

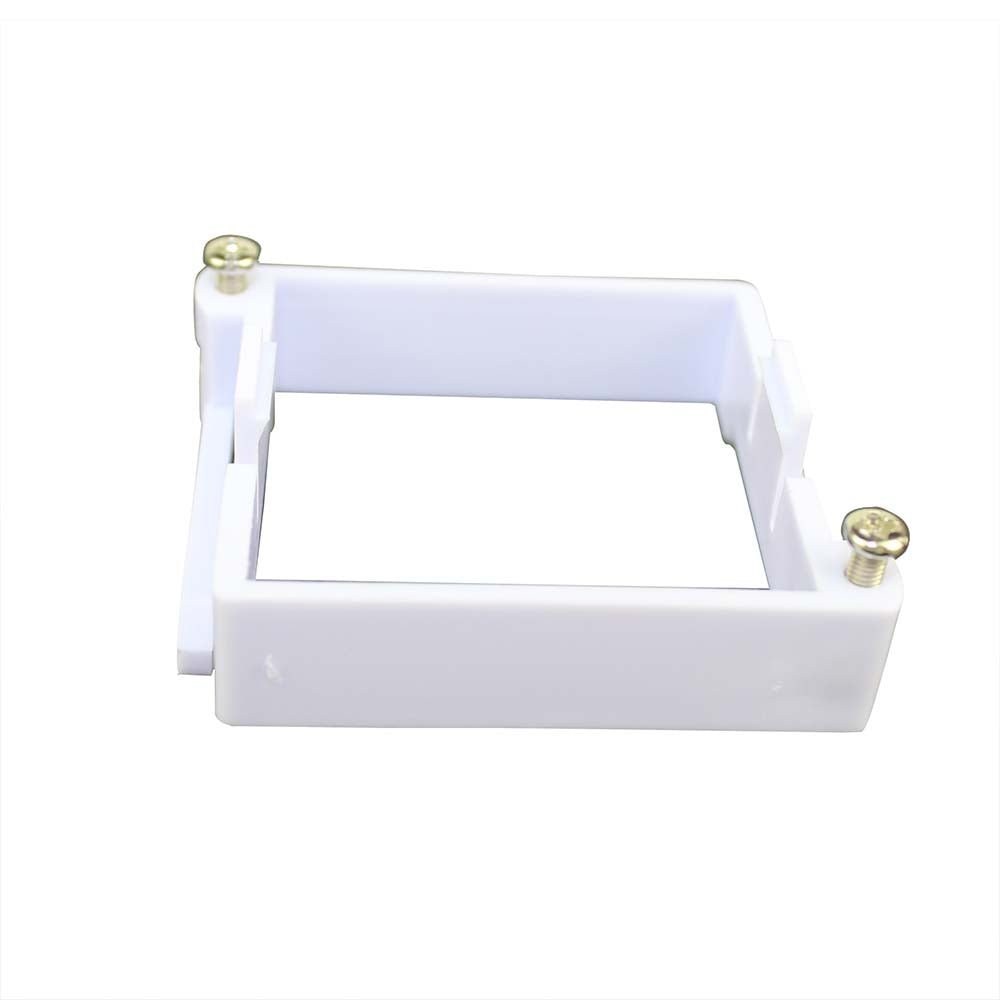

- Front Panel Dimension: DIN (48WmmX48Lmm), Cutout size: 45x45mm
- Support Multiple Thermocouples and Resistance Sensors (K, S, Wre, T, E, J, B, N, CU50, PT100)
- Power Supply Voltage: AC 100-240V ±10% 50/60Hz
- Main Output： Voltage Pulses Output (ITC-106VH): DC 12V, 30mA;
- Main Output： Relay Contact Output (ITC-106RH): AC250V 3A (Resistive load) ON/NC.
- Alarm 1 AC250V 3A (Resistive load) ON/NC
- High Accuracy of Displaying and Controlling 0.1ºC, Accuracy of Measurement ±0.2%FS
- PID and ON/OFF Control Mode, High Standard Self-adjusting Function
- Multiple Outputs and Alarm Modes
- Build-in Adjustable Digital Filter reduces interference
- The Self-adjusting Function and Intelligent Control of the Instrument Ensure Long-term Stability
- High Luminance, 0.39” height LED display, Anti-glare panel
- Built-in Switch Power Supply, Wide Voltage Range and low power consumption
