Hardwired CO2, Humidity & Temperature Monitor is the perfect solution for monitoring Indoor Air Quality in every room of your home, school or office.
Dual power input offers your choice of a hardwired or USB-C connection, and the unit can be installed easily with the included 3" flush mount wall box.
The Sper Scientific Hardwired CO2 Monitor measures and displays indoor air quality (IAQ) in terms of real-time CO2 concentration, temperature and humidity. Additional features allow users to review historical data, adjust brightness and sound, and calibrate the CO2 sensor.
This unit features accurate measurements of indoor air quality indicators including CO2 concentration, temperature and humidity, it is designed to meet safety standards and is easy to install. Featuring a large color display, touch keypad and advanced NDIR technology, it also offers programmable indicators for easy reading.

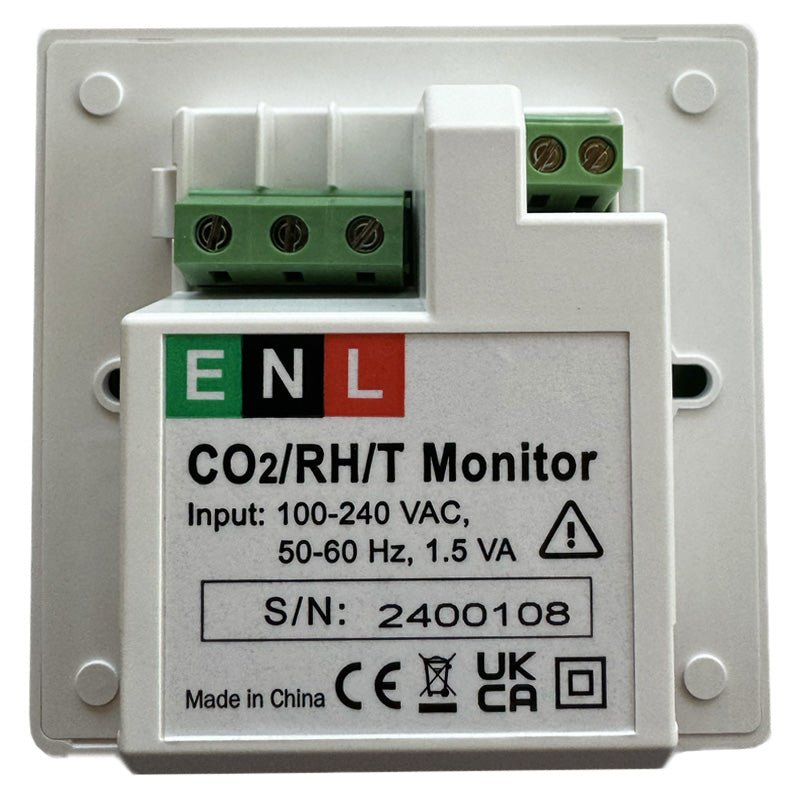

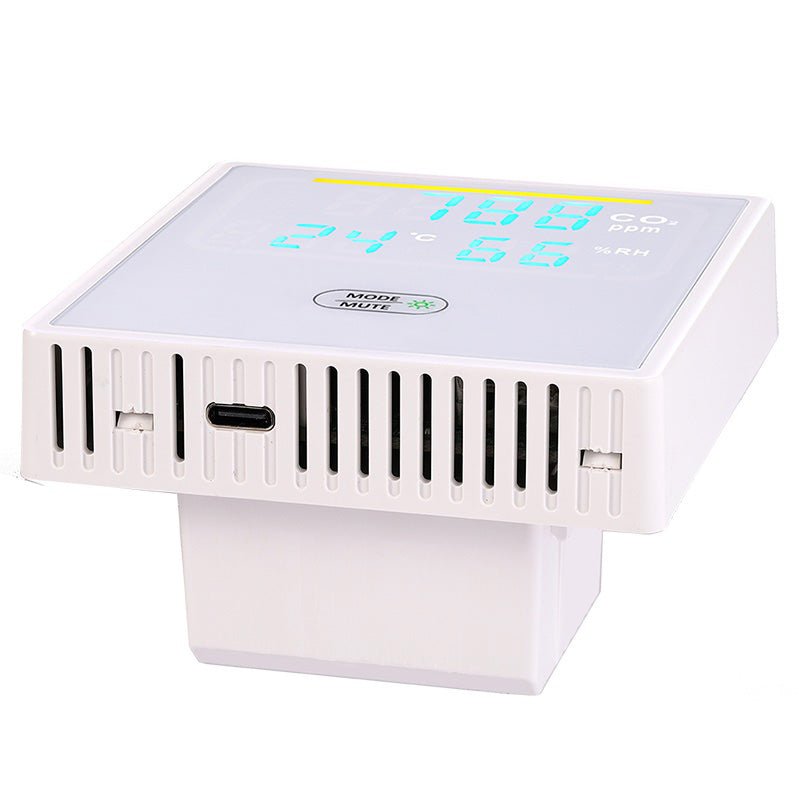

- Dual power inputs allow hardwire or USB-C connection.
- Easy two-part assembly and installation.

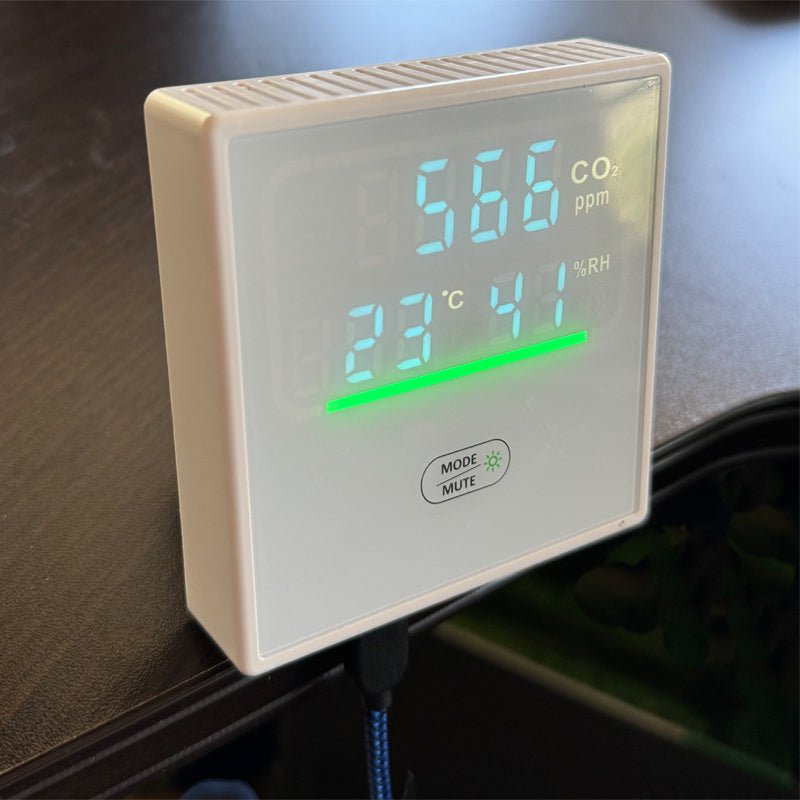

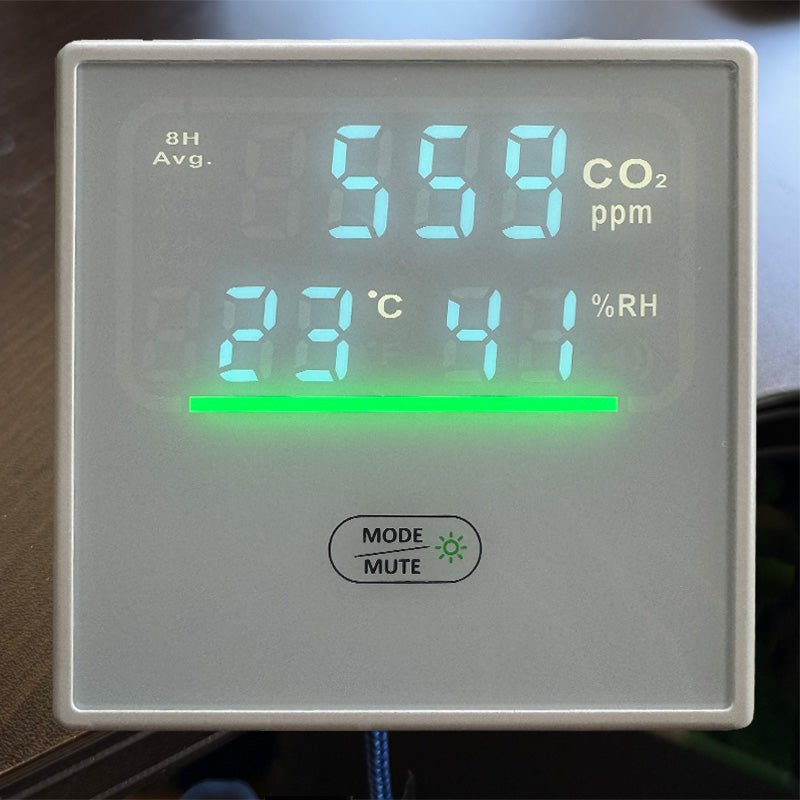

- Large color LCD display shows real-time CO2, humidity and temperature.
- Touch keypad lets you review 8-hour average, 24-hour average and 24-hour peak CO2 values.
- Advanced NDIR (Non-Dispersive Infrared) waveguide CO2 technology.
- Programmable visual indicators alert you to indoor air quality status with green, red and yellow signals.
- 3-level backlight brightness options.
- Buzzer alert function can be activated or muted.
- Manual CO2 calibration.

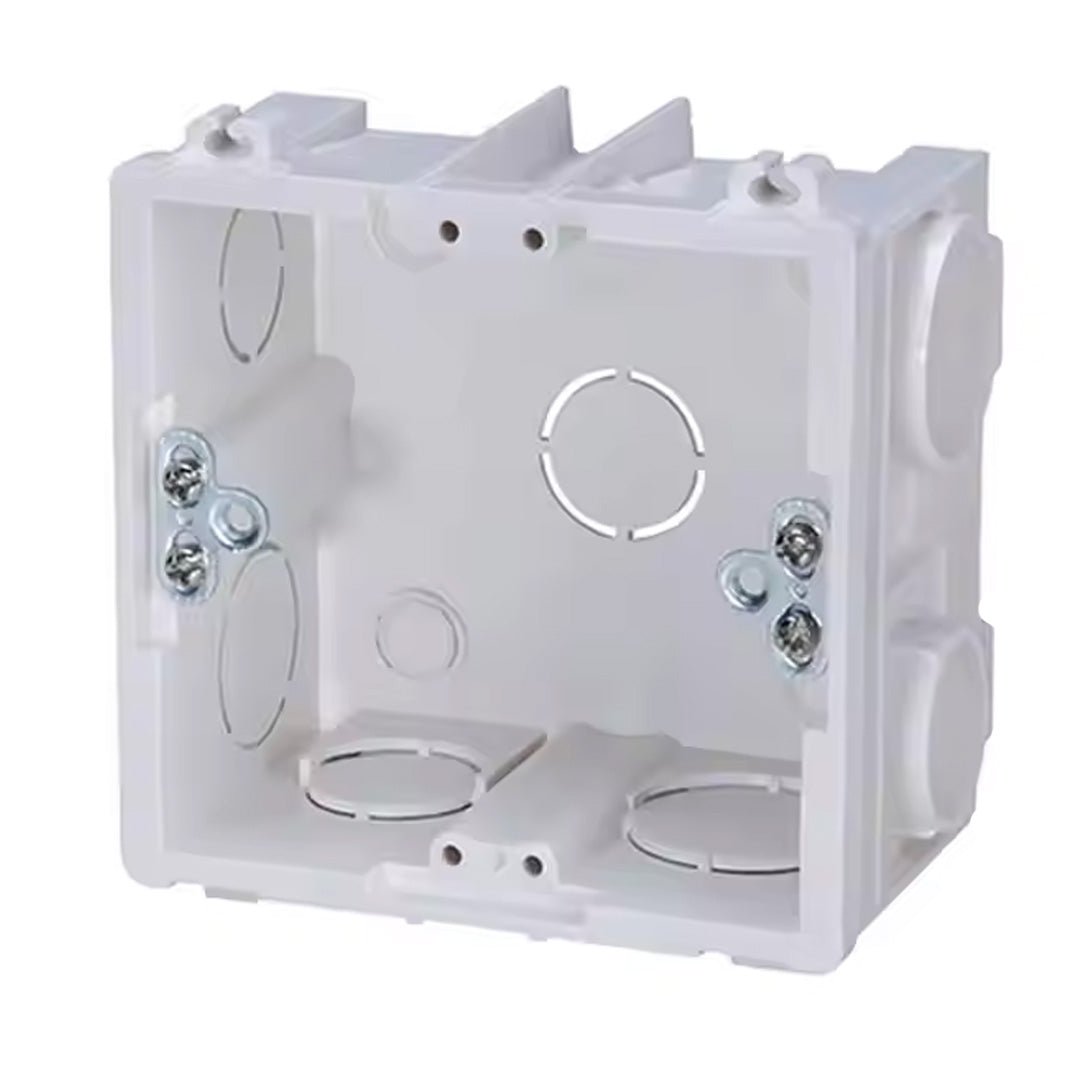

Includes: Meter, 3" Flush Mount Wall Box, Manual
Applications
Residential
The Sper Hardwired CO2 Meter is ideal for monitoring the IAQ in homes, apartments or other living spaces. It can help users to improve their comfort, health and well-being by alerting them when the CO2 level is too high or too low, which may indicate poor ventilation or air pollution.
Education
The Sper Hardwired CO2 Meter can be used to monitor the IAQ in classrooms, lecture halls or other learning environments. It can help educators and students keep their environment safe when CO2 levels get too high or too low, alerting teachers and students to adjust the ventilation, temperature and humidity levels in the classroom to create a comfortable and healthy learning atmosphere.
Commercial
The Sper Hardwired CO2 Meter can be used to monitor the IAQ in offices, meeting rooms or other work areas. It can help employees improve their productivity and creativity by alerting them when the CO2 level is too high or too low, and regulate the temperature and humidity levels accordingly.
Specifications
| Hard Wired IAQ Monitor | |
| CO2 Range | 200~9999 ppm |
| CO2 Resolution | 1 ppm |
| CO2 Accuracy | ±40 ppm ±3% of reading (400~2000 ppm), other range is 10% of reading |
| CO2 Response Time | ＜5 mins (90% step change) |
| CO2 Warm-up Time | 10 Seconds |
| Air Temperature Range | 0~50℃, 32~122℉ |
| Air Temperature Resolution | 0.1℃, 0.1℉ |
| Air Temperature Accuracy | ±1℃, ±1℉ |
| Air Temperature Response Time | ＜2 mins (90% step change) |
| Humidity Range | 5~95% RH |
| Humidity Resolution | 1% RH |
| Humidity Accuracy | ±5%RH (at 25℃, 10~90%RH); others ±7%RH |
| Humidity Response Time | ＜20 mins (90% step change) |
| LCD Size | 77(H)*46(W)mm |
| Meter Size | 86(L) * 86(W) * 51(H) mm |
| Operating Temperature | 0~50℃ |
| Operating RH% | 0~95% RH (avoid condensation) |
| Storage Temperature | -20~50℃ |
| Storage RH% | 0~90% RH (avoid condensation) |
| Power Supply | 100~240VAC, 50~60Hz, 1.5 VA or 5V DC |
| Power Consumption | <2W |
| Buzzer | ~70dB at 10cm distance |
| IP | IP30 |
| Mounting Height | 1.4~1.8 M |
| Weight | 150g |
| Includes | Meter, 3" Flush Mount Box, Manual, Paper Box |
