Notes:
1. We recommend using the product while charging.
2. The included data cable only works with the 5V 2A adapter.

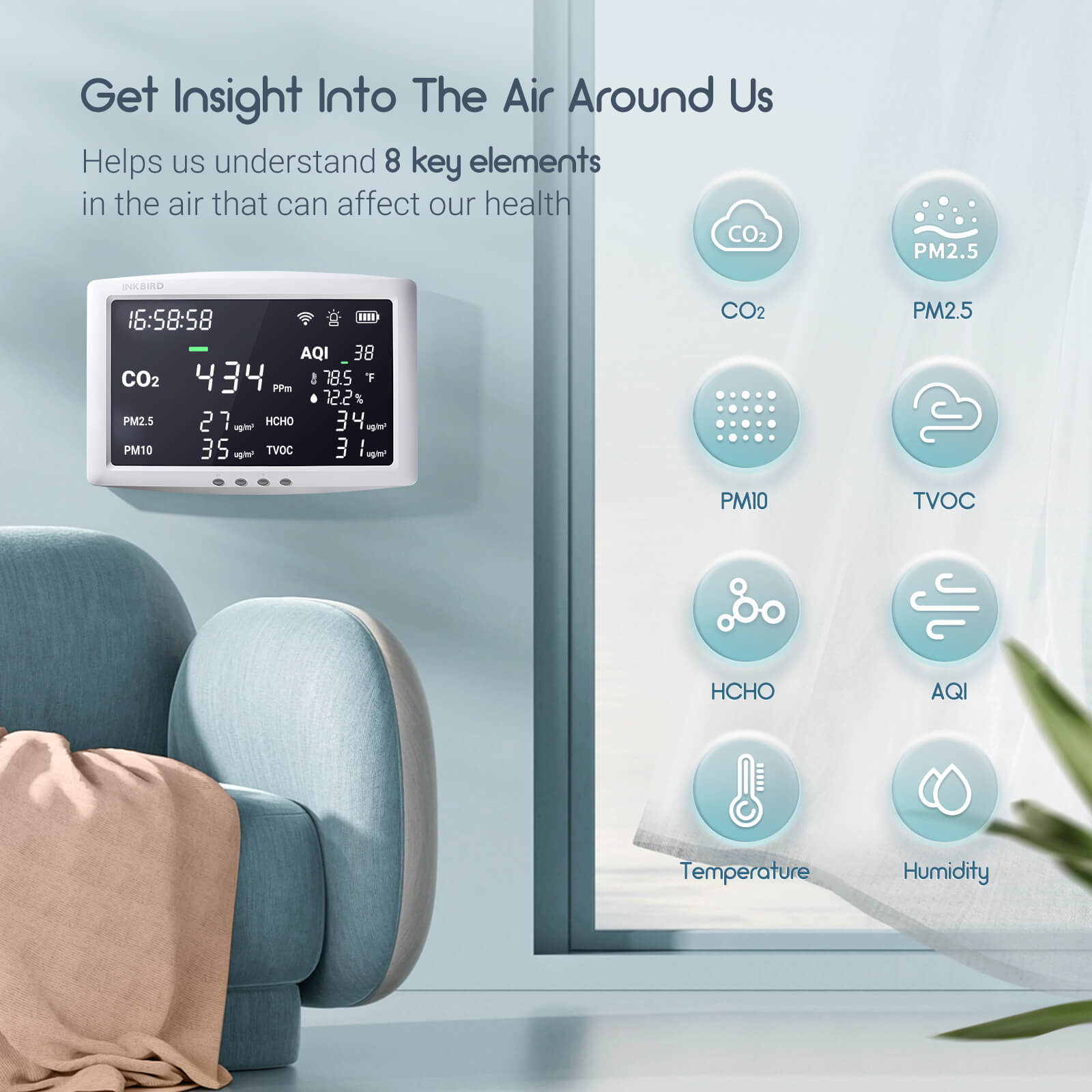

This product is a multifunctional air quality monitor that can detect CO2, PM2.5, PM10, TVOC, HCHO, AQI, temperature, and humidity at the same time. It helps us know about the surrounding air and provide a healthy, comfortable environment for our family.
Main Features
l 8-in-1 air quality monitor that let us understand our every breath

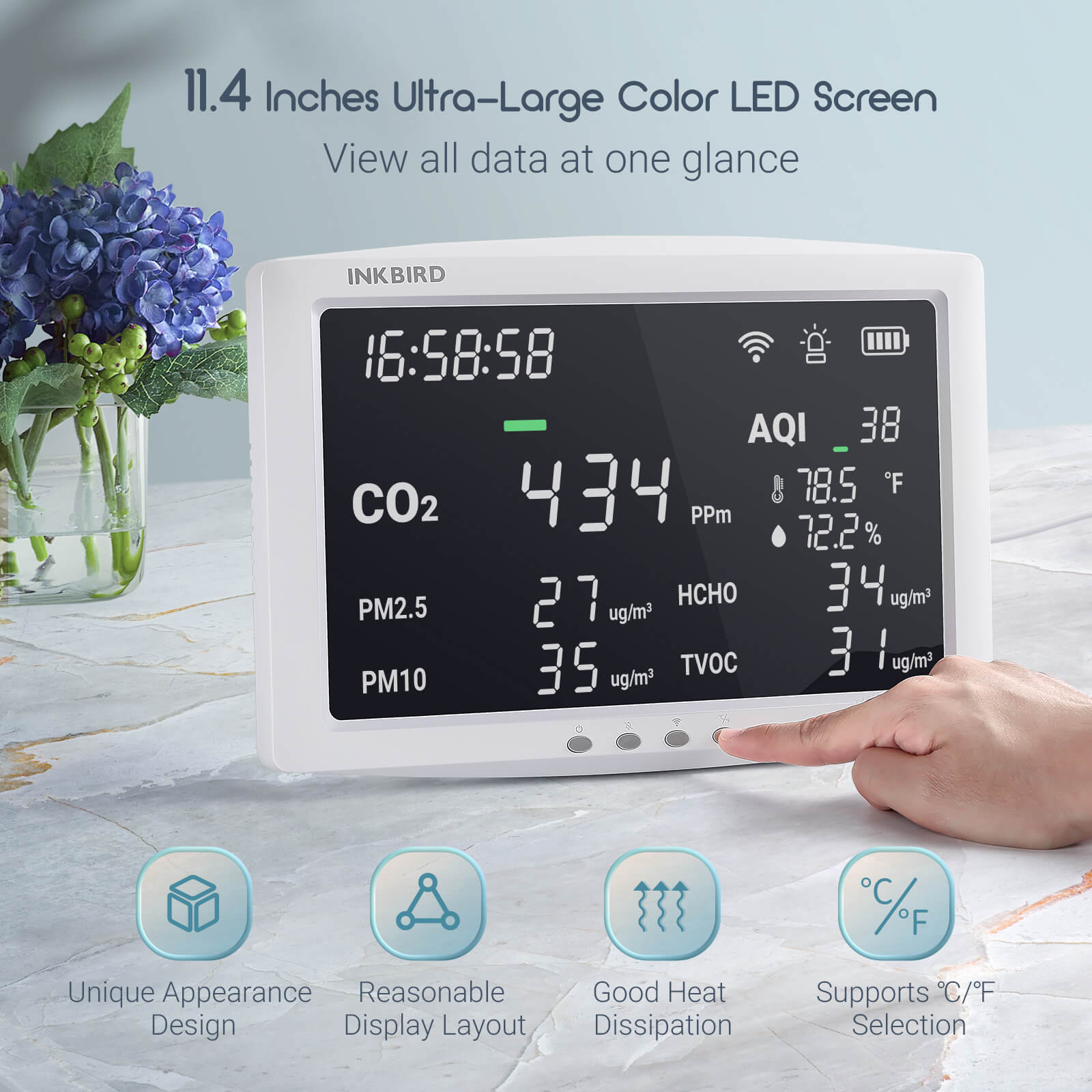

l 11.4 inches ultra-large LED screen, view all data at one glance

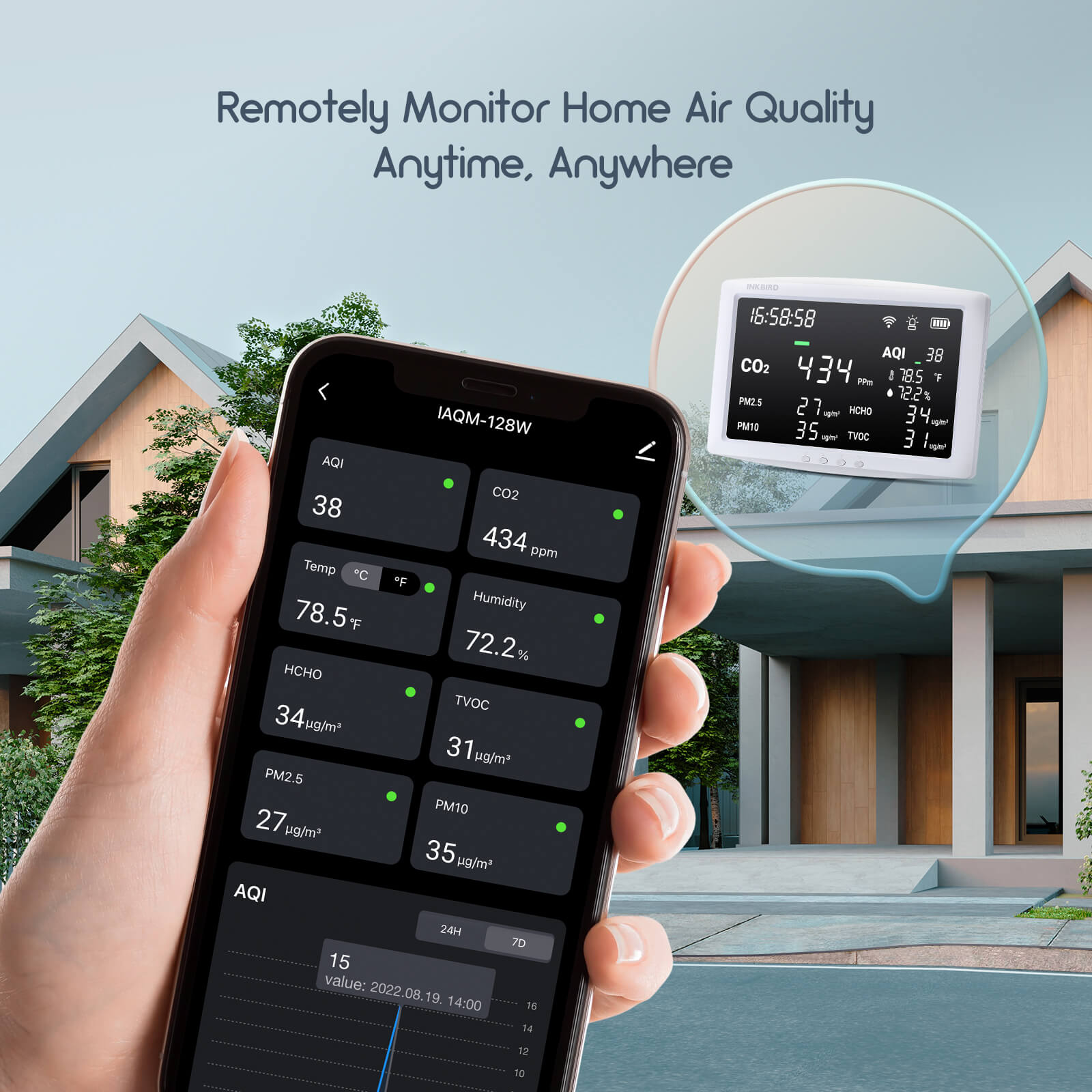

l Support 2.4GHz Wi-Fi connections, allowing us to monitor from a smartphone at any time

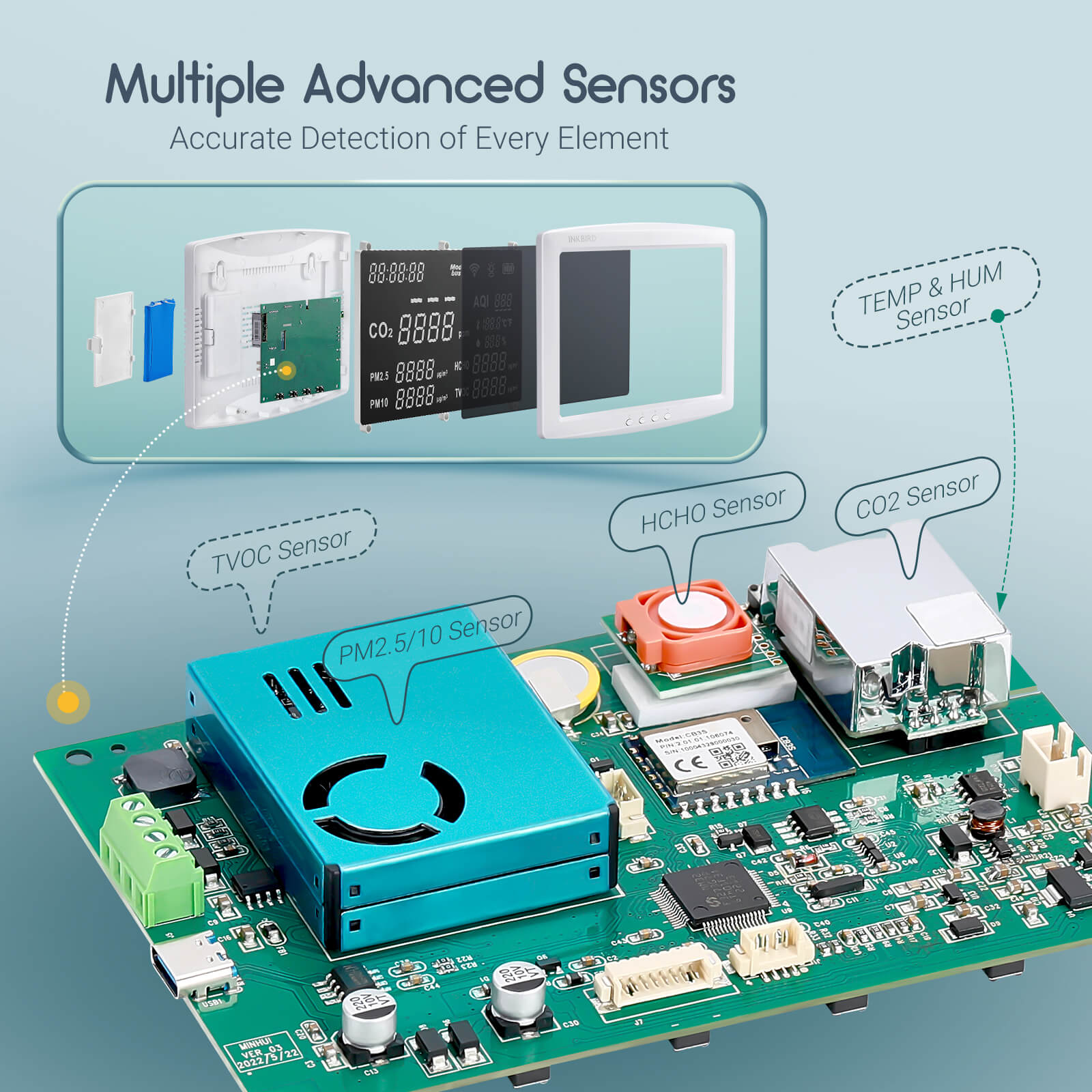

l Equipped with multiple advanced sensors for more precise detection

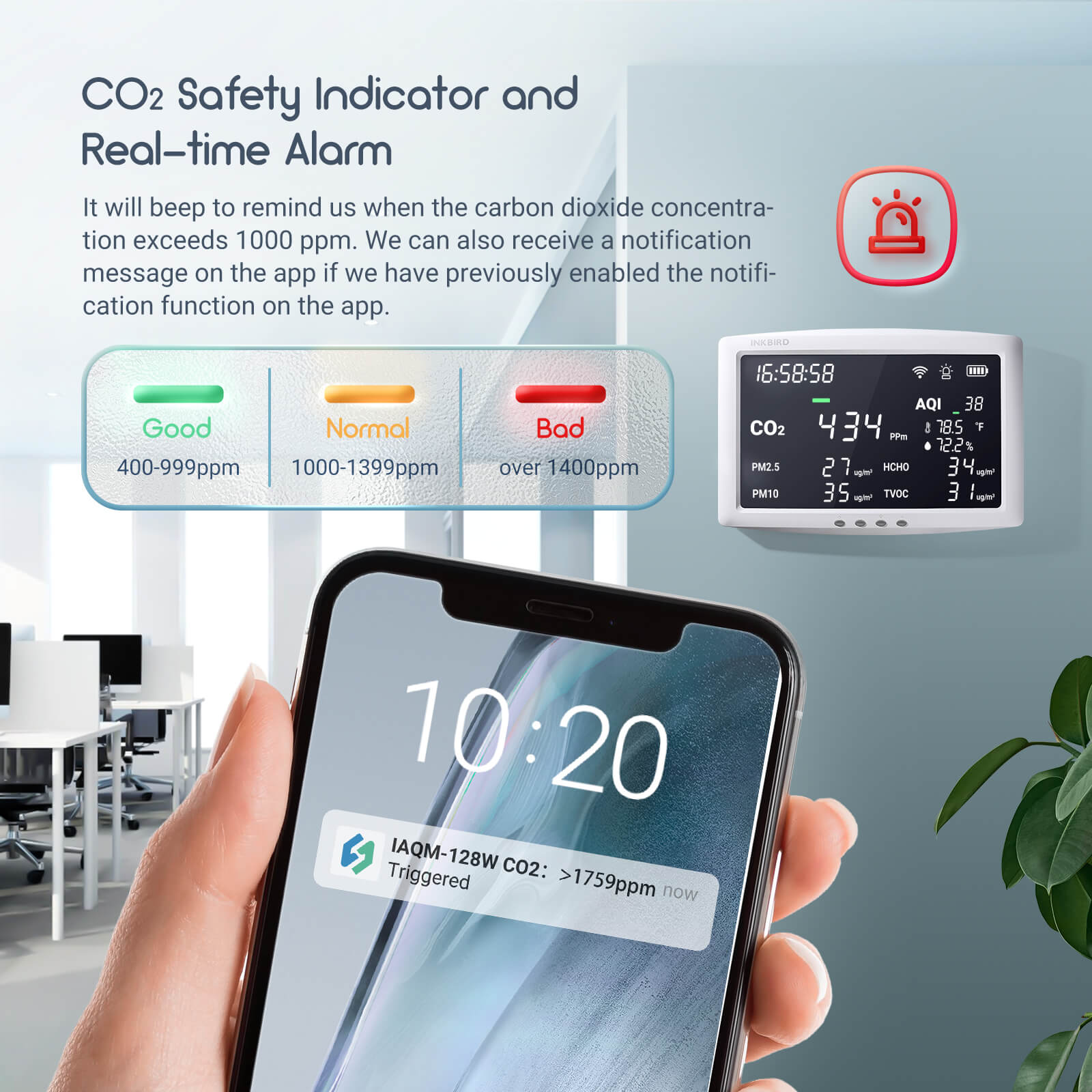

l 24-hour monitoring and real-time CO2 alarm to ensure a safe home

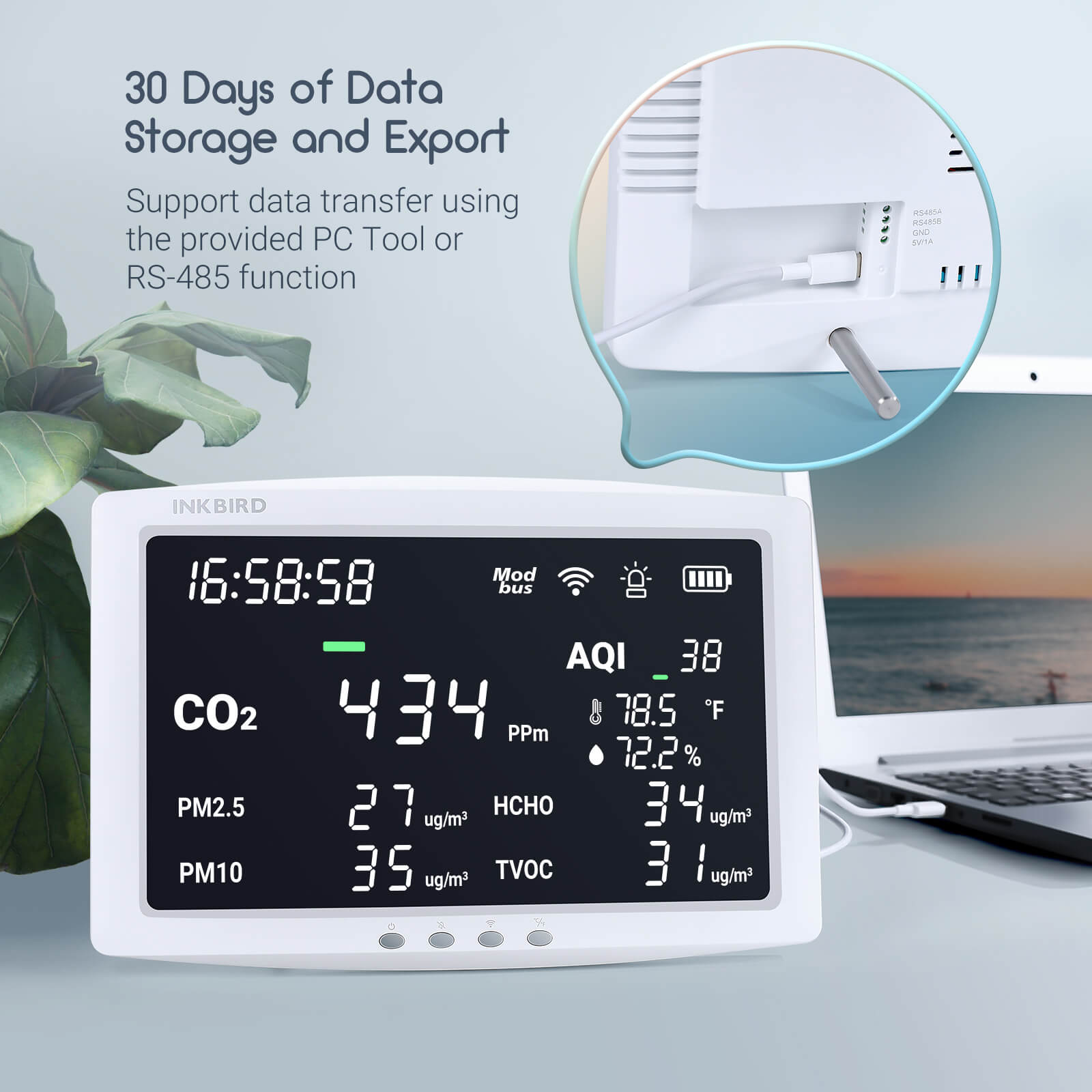

l 30 days of data storage and export using the PC tool and RS485 capability

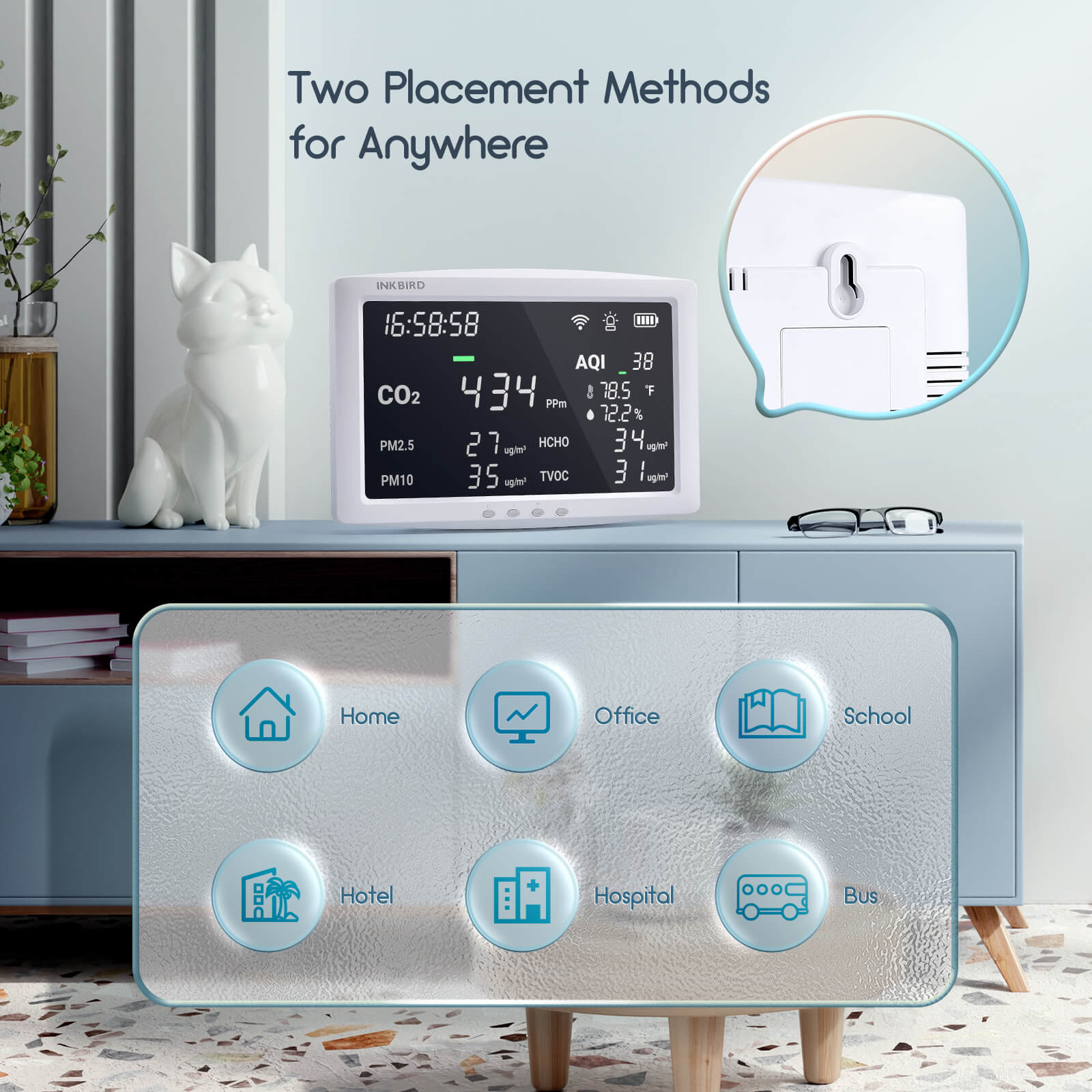

l Two placement methods for anywhere like offices, schools, hotels, buses
Specifications
l Product Name: Air Quality Detector
l Item No：IAQM-128W
l Detecting Item: CO2/Temp/Hum/AQI/HCHO/PM2.5/PM10/TVOC
l Material: ABS/Acrylic/Electronic Components/Air Sensors
l Carbon Dioxide: 400-5000ppm (±50ppm + 5%)
l PM10: 0-999μg/m³
l PM2.5: 0-999μg/m³
l TVOC: 0-9999μg/m³
l HCHO: 0-9999μg/m³
l AQI: 0-499
l Temperature: 0-55℃ (℃/℉ switchable)
l Humidity: 0-99%
l Li-Battery: 2500mAh ( Working time: 3-5 Hours )
l Type-C Power Supply: 5V/2A
l Wi-Fi: IEEE802.11/b/g/n 2.4GHz
l Bluetooth: BLE5.0
l Display Size: 25*15cm (11.4 Inch)
l Weight: 850g
l Rated Power: 10W
l Wi-Fi Supporting: Wi-Fi+BT CB3S (Optional)
l Connecting Platform: INKBIRD APP/PC tool/Modbus connecting
l RS485 Input: 5V/1A
l RS485 Transmission Rate: 10Mbps
l Data Logger: Updated every 10 minutes, 30 days data storage
l Flash Memory Capacity: 512 KB
l Product Warranty: 1 Year
Package Contents
1x Air Quality Monitor
2x Support Bars
1x Type-C Data Cable（2 Meters）
1x Power Adapter
1x Wall Mount Accessories
1x User Manual
