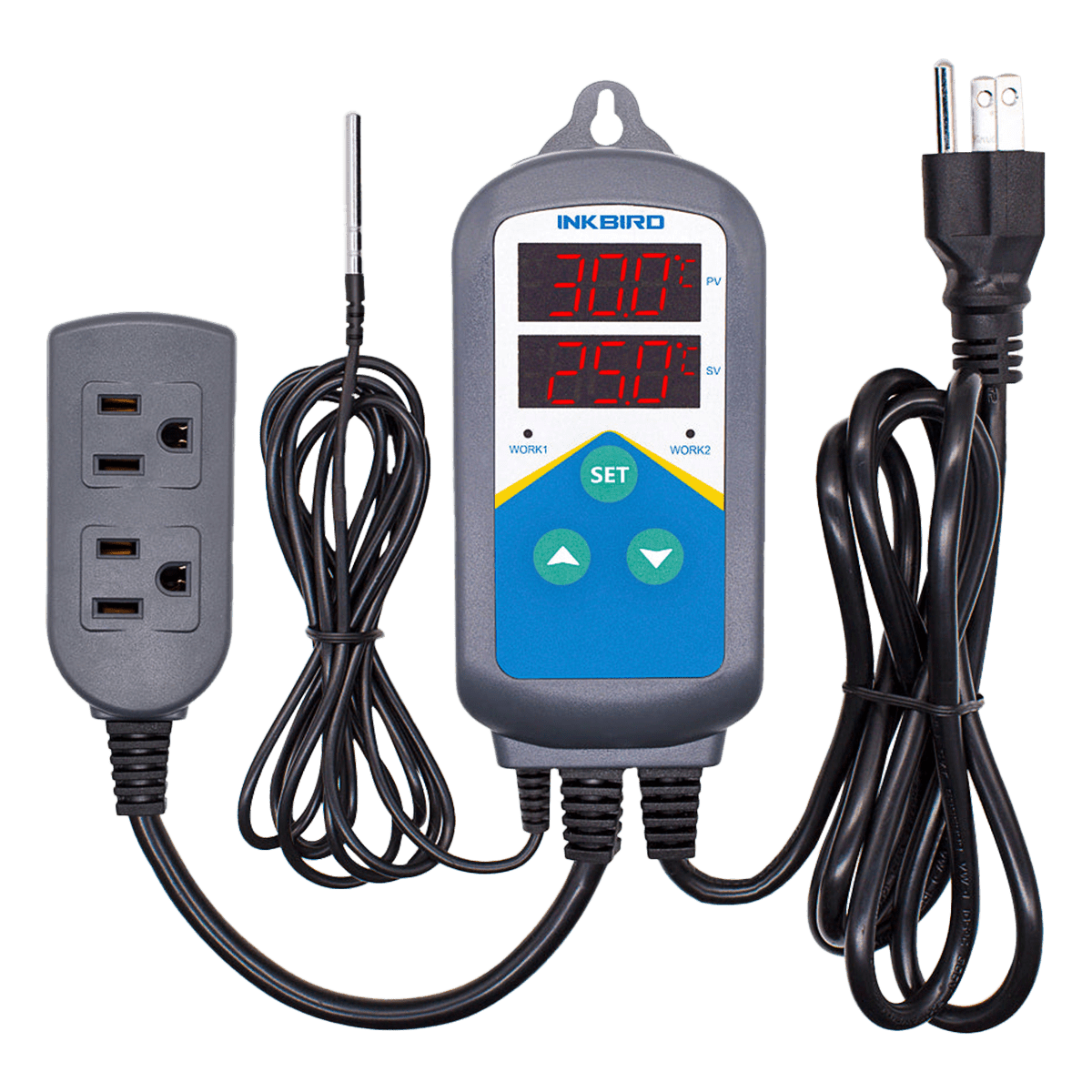

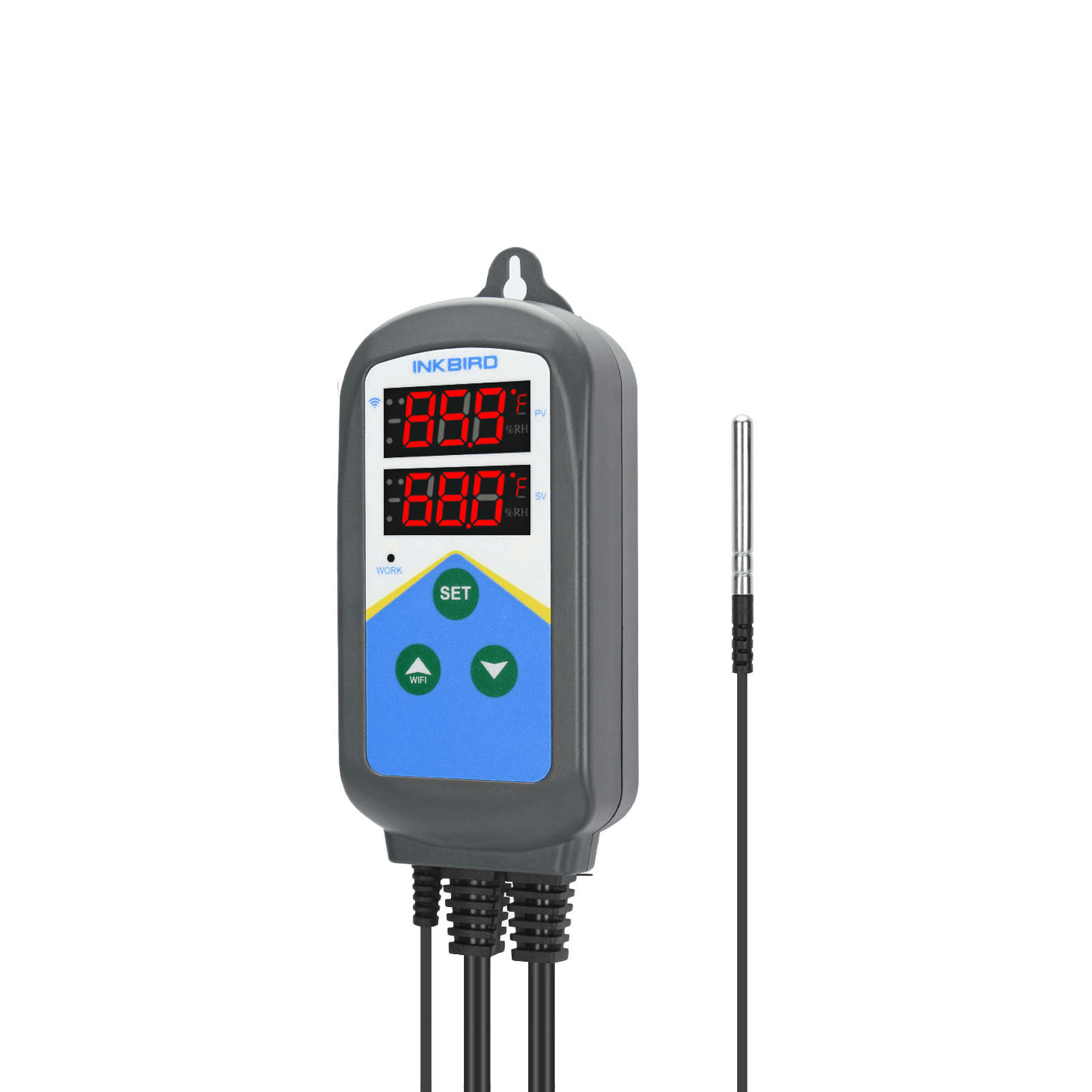

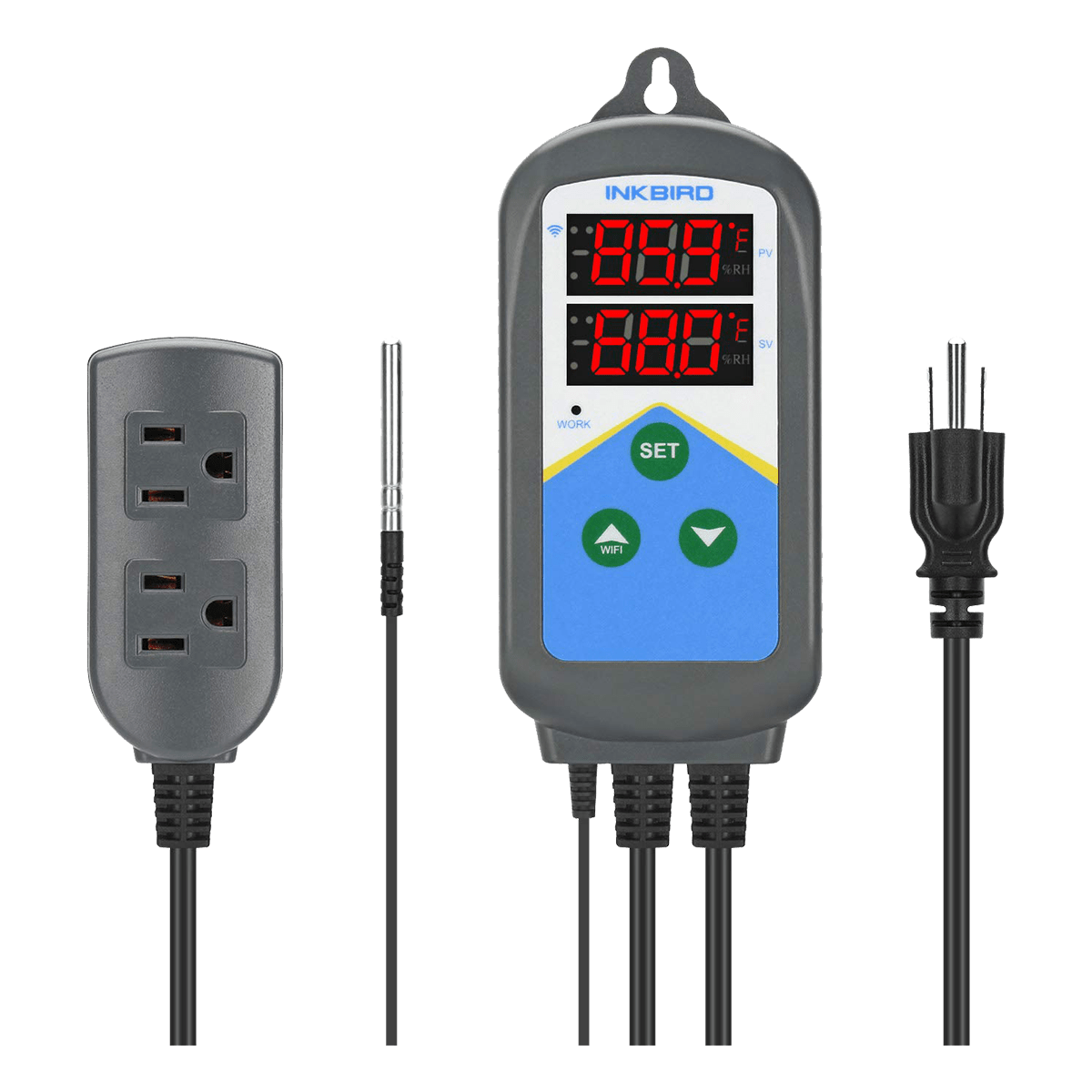

ITC-306T is a pre-wired heating output temperature controller with time function specifically for breeding and planting. It can be set to two different temperatures with its function of a dual time cycle setting for 24 hours according to the day and night, which can be more suitable for the physiological needs of animals and plants. ITC-306T can be widely used in over-heat protection and automatic temperature control systems of all sorts of electrical equipment for aquariums, pet breeding, hatching, fungus fermenting, seed germination accelerating, etc.

This plug-and-play product is designed with a dual LCD display, and offers the optional display of Centigrade or Fahrenheit, which makes it more humanized temperature control. With a large power output of 1200W(110V)/2200W(220V), it’s suitable for most applications. And the temperature can be controlled more accurately with its function of temperature calibration and temperature hysteresis.

Main Features

Plug-and-play design, easy to use;

Dual time cycle setting during 24 hours, can be set different temperatures from day and night on the basis of the physical needs of animals and plants;

Support reading with Centigrade or Fahrenheit unit;

Maximum output load: 1200W(110V) / 2200W(220V);

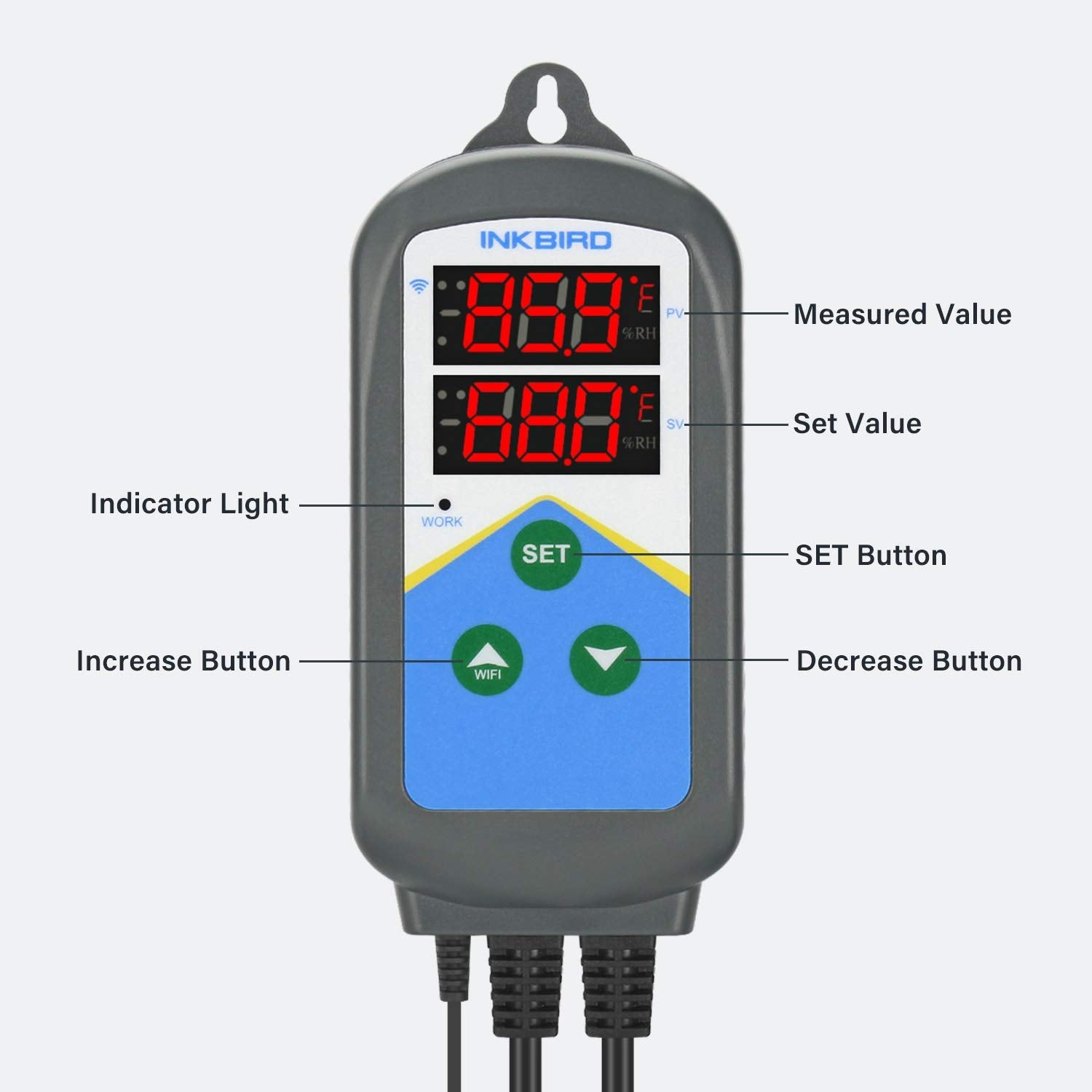

Dual display window, be able to display measured temperature and set temperature at the same time;

Temperature calibration;

Over-temperature and sensor fault alarm;

Build-in ultra-capacitor, after fully filled, can supply timer chip working for more than 20 days without electricity.

Specification

Temperature Control Range: -50~99 °C / -58~210 ° F
Temperature Resolution: 0.1 ° C / 0.1° F
Temperature Accuracy: ±1°C (-50 ~ 70°C) / ±1°F (-58 ~ 160° F)
Temperature Control Mode: On/Off Control, Heating
Input Power: 100 ~240VAC, 50Hz/60Hz
Temperature Control Output: Max. 10A, 100V ~240V AC
Sensor Type: NTC sensor (Including)

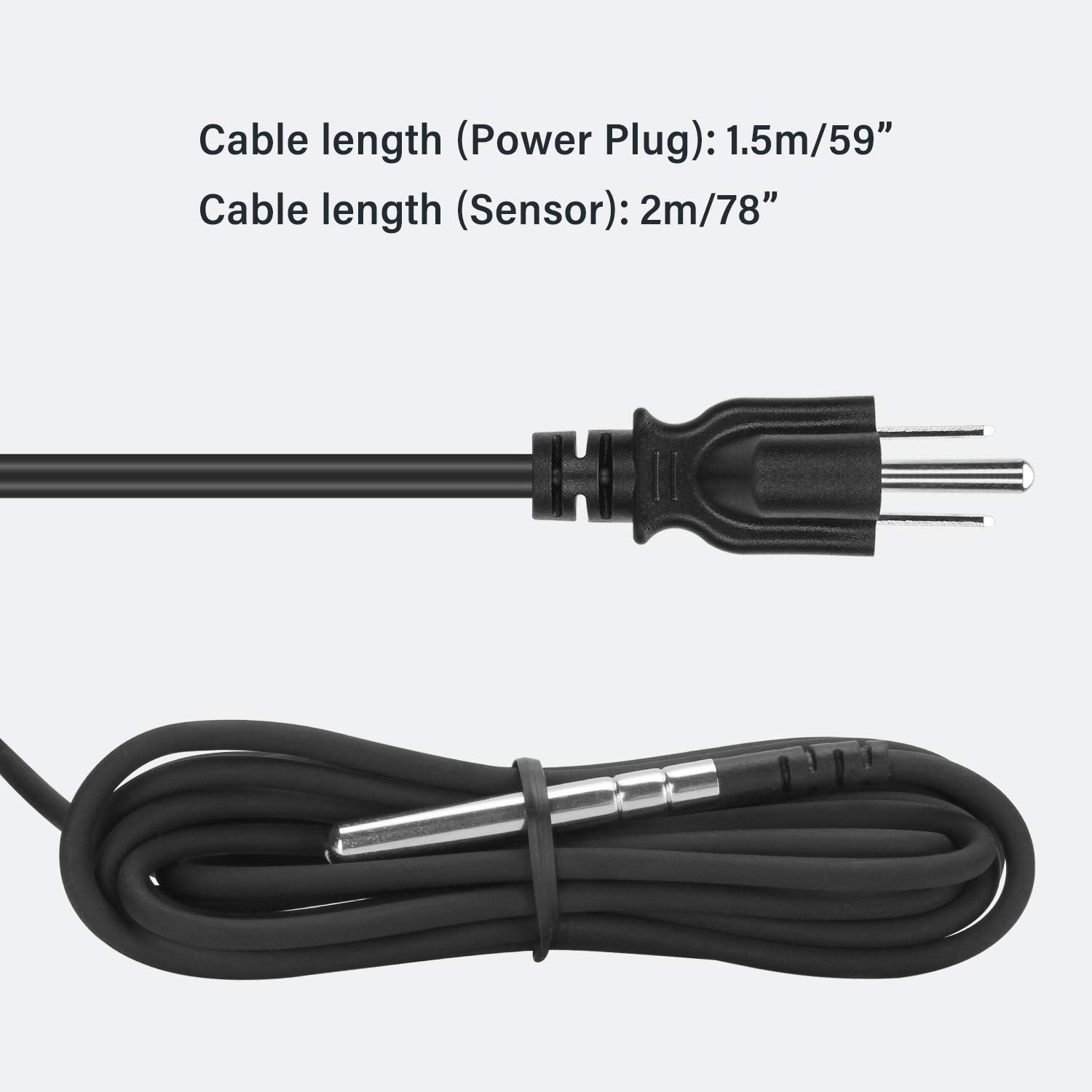

Sensor Length: 2m / 6.56ft
Relay Contact Capacity: Heating (10A, 100-240VAC)
Input Power Cable Length: 1.5m ( 5ft )
Output Power Cable Length: 30cm ( 1ft )
Ambient Temperature: -30~ 75 ° C / -22~ 167 ° F

Dimension

Main Body: 140x68x33mm (5.5x2.7x1.3 inch)

Socket: 85x42x24mm (3.3x1.7x1.0 inch)

Storage

Temperature -20~ 60 ° C / -4~ 140 ° F

Humidity 20~85% (No Condensate )

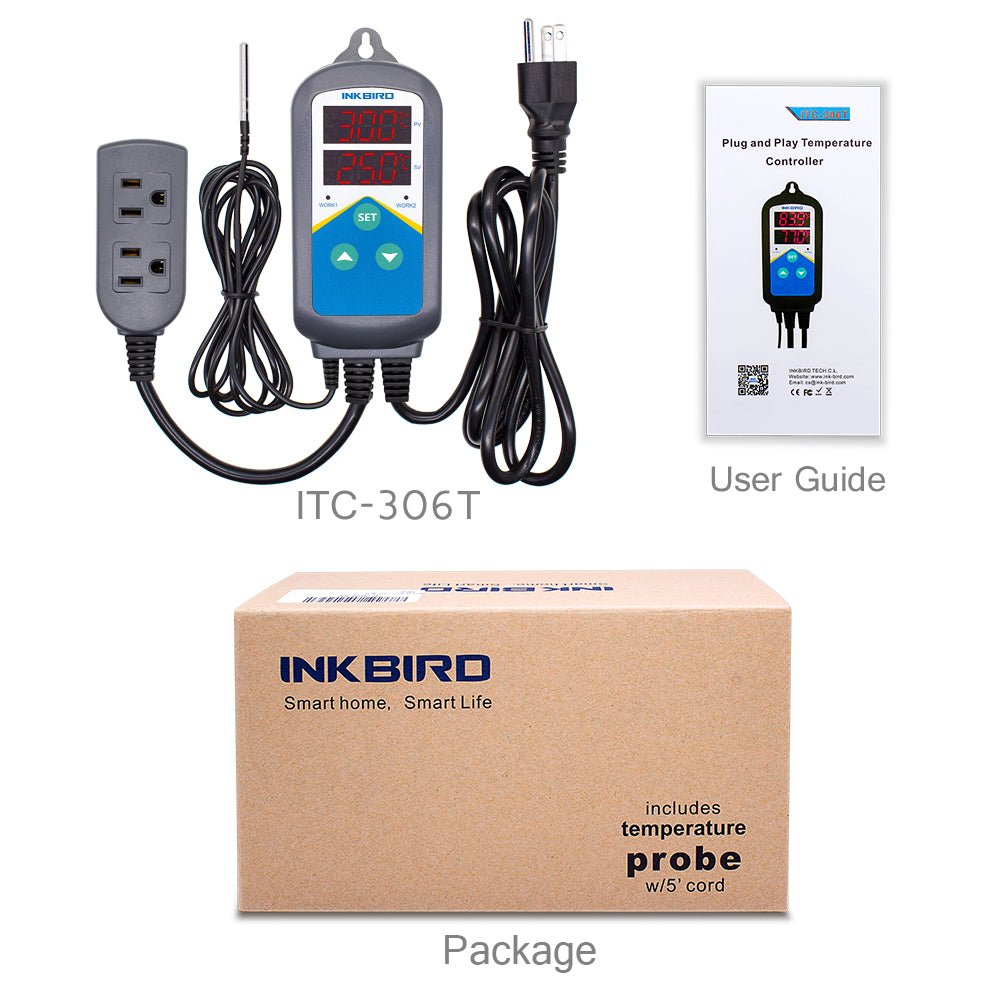

Package Contents

ITC-306T*1

Temperature Probe*1

User Manual*1

Warranty Card*1
